Available on request
ABB EM2558T-4 – 150HP,1780RPM,3PH,60HZ,444T,1868M,O
MPN: EM2558T-4 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase open motors |
| Lifecycle | Active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EM2558T-4 be shipped?
EM2558T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EM2558T-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EM2558T-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EM2558T-4, subject to availability and destination.
General Purpose Motor 150 Hp 460 V (EM2558T-4)
Specifications
Ordering
| Catalog Number | EM2558T-4 |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015381 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Duty Time | 60 Min |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Insulation Class | F |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 4P |
| Number of Speeds | Single Speed |
| Power Factor | 86 % |
| Rated Efficiency | 96.20 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Y-Start/Delta Run |
| Synchronous Speed (vsyn) | 1800 r/min |
| Output Power | 150 Hp |
Mechanical
| Drive End Flange Type | C-Face |
| Enclosure Type | ODP |
| Frame Material | Cast Iron |
| Motor Frame Size | 444T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 52.5 in |
| Product Net Weight | 1528 lb |
| Product Net Width | 42 in |
| Dimension Diagram | 617428-042 |
Certificates and Declarations
| Certification Agency | CURUSEEV, CSA EEV |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| ETIM 7 | EC001851 - Electric motor |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

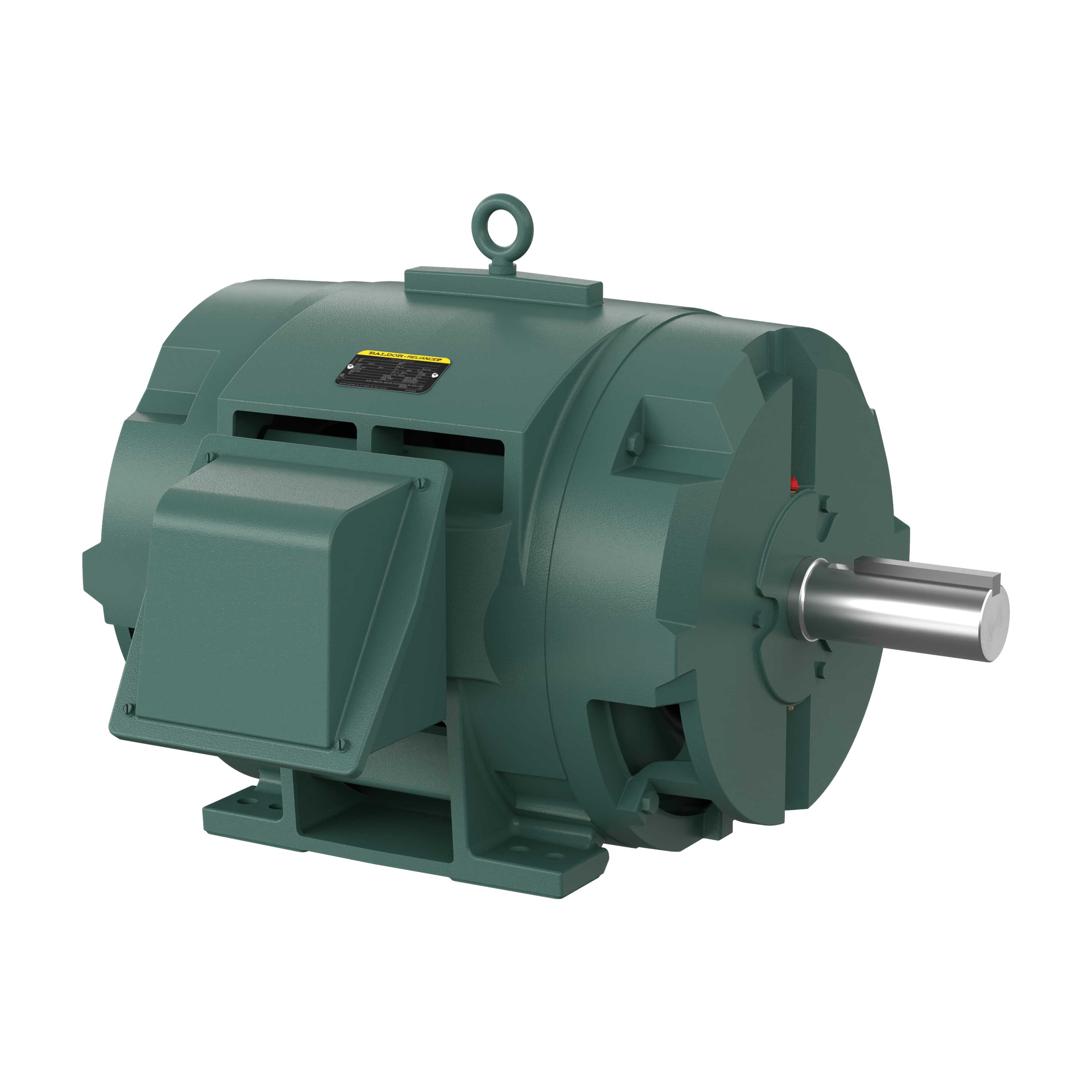

Available on request100HP,1785RPM,3PH,60HZ,404T,ODP,FOOMPN: EM2555T-CI · ABB
Price on request
Request a quote
Available on request100HP,1780RPM,3PH,60HZ,404TS,4484M,MPN: EM2555TS-12 · ABB
Price on request
Request a quote

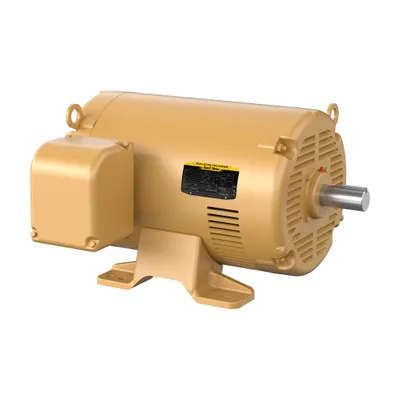

Available on request150HP,3540RPM,3PH,60HZ,405TS,4464M,MPN: EM2556T-4 · ABB
Price on request
Request a quote

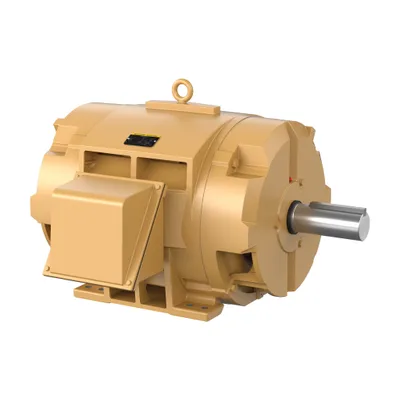

Available on request125HP,1190RPM,3PH,60HZ,445T,1884M,OMPN: EM2557T-4 · ABB
Price on request
Request a quote
Available on request150HP,1785RPM,3PH,60HZ,444T,A44062MMPN: EM2558T-5 · ABB
Price on request
Request a quote

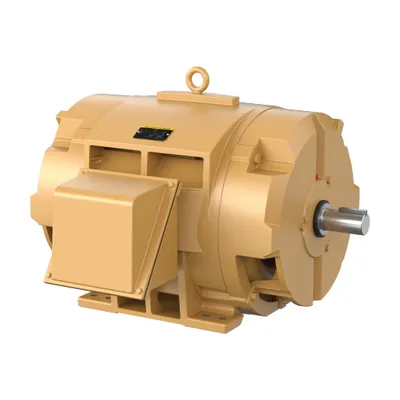

Available on request150HP,1785RPM,3PH,60HZ,444TS,A44062MPN: EM2558TS-4 · ABB
Price on request
Request a quote

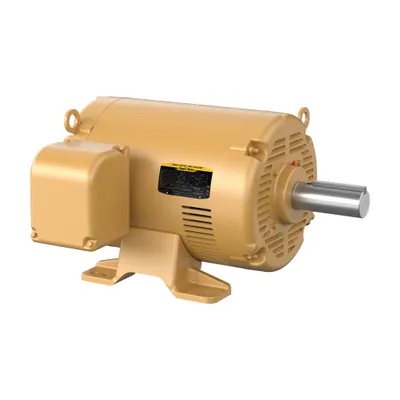

Available on request125HP,1775RPM,3PH,60HZ,405T,4488M,OMPN: EM2559T-4 · ABB
