Available on request
150HP,1190RPM,3PH,60HZ,447T,A44192M
MPN: SPM44156T-4 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Three phase enclosed motor |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can SPM44156T-4 be shipped?
SPM44156T-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up SPM44156T-4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for SPM44156T-4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPM44156T-4, subject to availability and destination.
General Purpose Motor 150 Hp 460 V (SPM44156T-4)
Specifications
Ordering
| Catalog Number | SPM44156T-4 |
| Brand / Label | Baldor-Reliance® |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015381 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Efficiency Level | Super Premium (NEMA 12-23), IE4, Premium Efficiency (NEMA 12-12) |
| Insulation Class | B |
| NEMA Design Code | B |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Speeds | single_speed |
| Power Factor | 83 % |
| Rated Efficiency | 96.20 % |
| Service Factor | 1.15 |
| Type of Duty | Continuous |
| Starting of Motor | Direct on line |
| Synchronous Speed (vsyn) | 1200 r/min |
| Output Power | 150 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D, Class II, Group F & G A |
| Frame Material | Iron |
| Motor Frame Size | L449T |
| Motor Base Type | Foot Mounted |
| Mounting Position | F1 |
| Brake Present | No |
Dimensions
| Product Net Height | 0 in |
| Product Net Weight | 3225 lb |
| Product Net Width | 0 in |
Certificates and Declarations
| Certification Agency | CCSAUSEEV, CURUSEEV, NEMA_PREMIUM |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More ABB parts

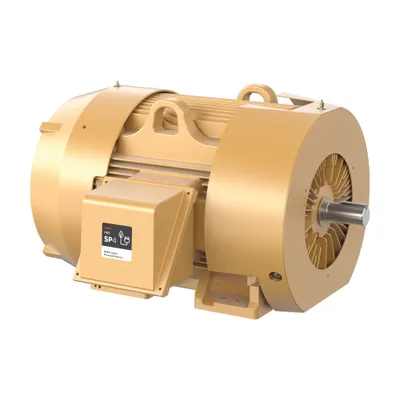

Available on request125HP,1790RPM,3PH,60HZ,444TS,A4480MMPN: SPM4410TS-4 · ABB
Price on request
Request a quote

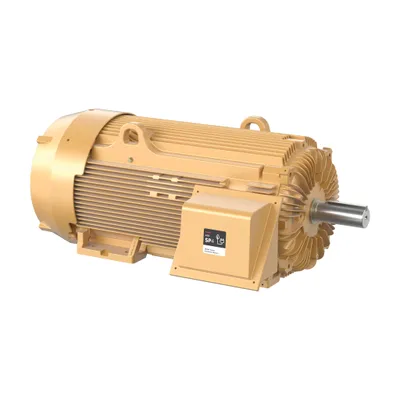

Available on request125HP,1190RPM,3PH,60HZ,L449T,A44176MPN: SPM4411T-4 · ABB
Price on request
Request a quote
Available on request125HP,3575RPM,3PH,60HZ,445TS,A44078MPN: SPM4412TS-4 · ABB
Price on request
Request a quoteAvailable on request150HP,3575RPM,3PH,60HZ,447TS,A44104MPN: SPM4413TS-4 · ABB
Price on request
Request a quoteAvailable on request200HP,3575RPM,3PH,60HZ,449TS,A44128MPN: SPM4416TS-4 · ABB
Price on request
Request a quote

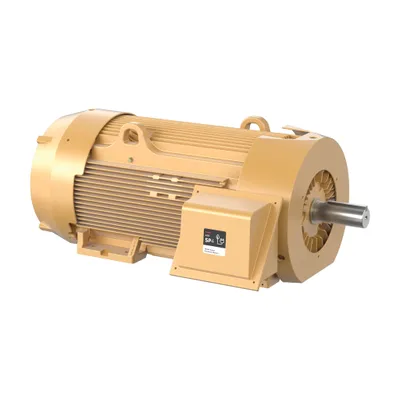

Available on request200HP,1190RPM,3PH,60HZ,L449T,A44208MPN: SPM44206T-4 · ABB
Price on request
Request a quoteAvailable on request250HP,3575RPM,3PH,60HZ,449TS,A44144MPN: SPM44252TS-4 · ABB
Price on request
Request a quote

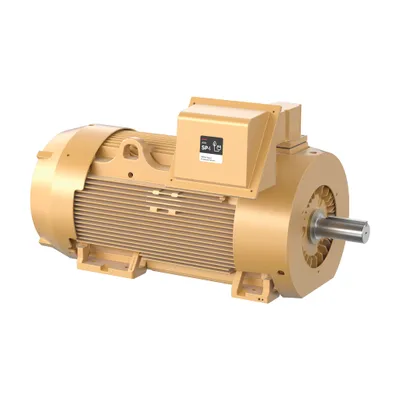

Available on request250HP,1190RPM,3PH,60HZ,L449T,A44208MPN: SPM44256T-4 · ABB
