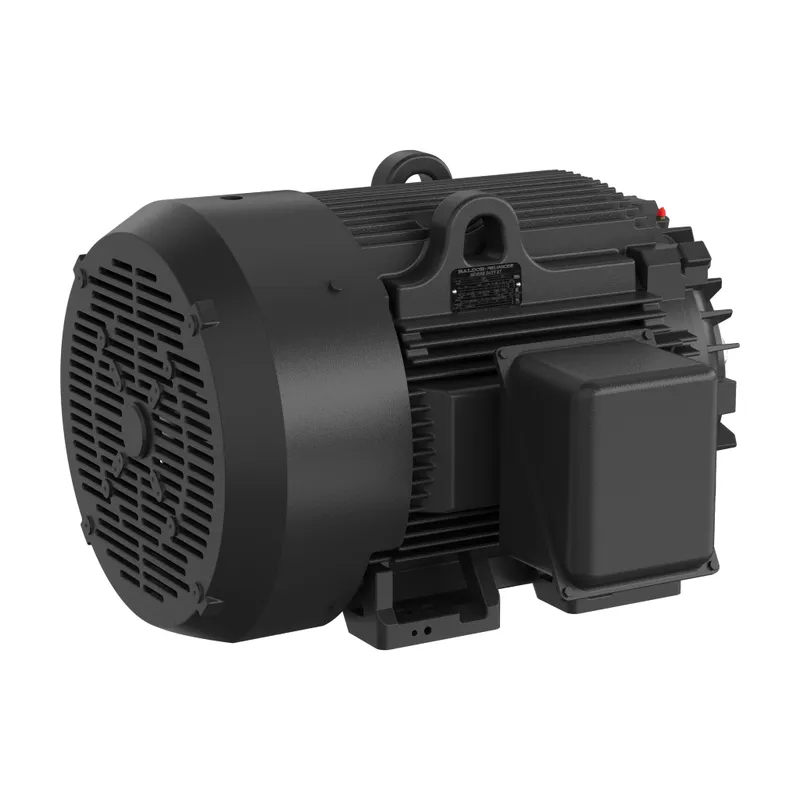

ABB CXT31002TS – 100HP,3560RPM,3PH,60HZ,405TSC,A4006

Name: ABB CXT31002TS – 100HP,3560RPM,3PH,60HZ,405TSC,A4006
Brand: ABB
SKU: CXT31002TS

MPN: CXT31002TS · Brand: ABB

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can CXT31002TS be shipped?

CXT31002TS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up CXT31002TS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for CXT31002TS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CXT31002TS, subject to availability and destination.

100HP,3560RPM,3PH,60HZ,405TSC,A40060M,TE

Specifications

Additional Information

ABB Type Designation	100HP,3560RPM,3PH,60HZ,405TSC,A4006
Ambient Temperature	40 °C
Bearing	6313, Ball
Bearing NDE	6313
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	CXT31002TS
Certification Agency	CCSA US, CSA EEV, NEMA PREMIUM, UR
Country or Territory of Origin	United States
Customs Tariff Number	85015230
Drive End Flange Type	C-Face
Efficiency Level	Premium Efficiency (NEMA 12-12)
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D A
Frame Material	Iron
Frame Size	Undefined
Global Commercial Alias	CXT31002TS
Gross Volume	55350.625 in³
Gross Weight	1260 lb
Insulation Class	F
Invoice Description	100HP,3560RPM,3PH,60HZ,405TSC,A40060M,TE
Made To Order	No
Maximum Speed	4500 r/min
Medium Description	Frame Size 405Tsc, C-Face Mounting, 3Phase Phase, TEFC Enclosure, (CXT31002TS)
Minimum Order Quantity	1 piece
Motor Base Type	Rigid
Motor Frame Size	405TSC
Mounting Orientation	Horizontal
Mounting Position	F1
NEMA Design Code	B
Number of Phases	3-phase
Number of Poles	2P
Number of Poles (High)	2
Number of Speeds	Single Speed
Order Multiple	1 piece
Output Power	100 Hp
Power Factor	90 %
Product Name	LV Severe Duty Motors
Product Net Depth / Length	48.5 in
Product Net Height	27.5 in
Product Net Weight	1260 lb
Product Net Width	41.5 in
Product Type	Undefined
Quote Only	No
Rated Current (In)	110 A A
Rated Efficiency	94.10 %
Rated Speed	3560 r/min
Selling Unit of Measure	piece
Service Factor	1.15
Shaft Diameter	2.13 in
Short Description	Frame Size 405Tsc, C-Face, 3Phase PH, TEFC,
Standards	NEMA
Starting of Motor	Direct On Line
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Synchronous Speed (vsyn)	3600 r/min
Type of Duty	Continuous
Voltage Rating	230 V, 460 V V
