B&R 8AC120.60-1 Used Rev. K0

Name: B&R 8AC120.60-1 Used Rev. K0
Brand: B&R
SKU: 8AC120.60-1
Price: 47.70 EUR
Availability: InStock

MPN: 8AC120.60-1 · Brand: B&R

€47.70 excl. VAT & shipping

Request a Quote

3-month warranty

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	In stock — 3 available
Category	Servo & Motion Control
Warranty	3-month
Weight	0.1 kg
Country of origin	AT
Datasheet	Manufacturer datasheet ↗

Shipping & availability

When can 8AC120.60-1 be shipped?

8AC120.60-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.

Can I pick up 8AC120.60-1 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8AC120.60-1.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8AC120.60-1, subject to availability and destination.

• EnDat 2.1 encoder interface for installation in ACOPOS servo drives

• Encoder monitoring

• Also suitable for evaluating simple incremental encoders with sinusoidal input signal

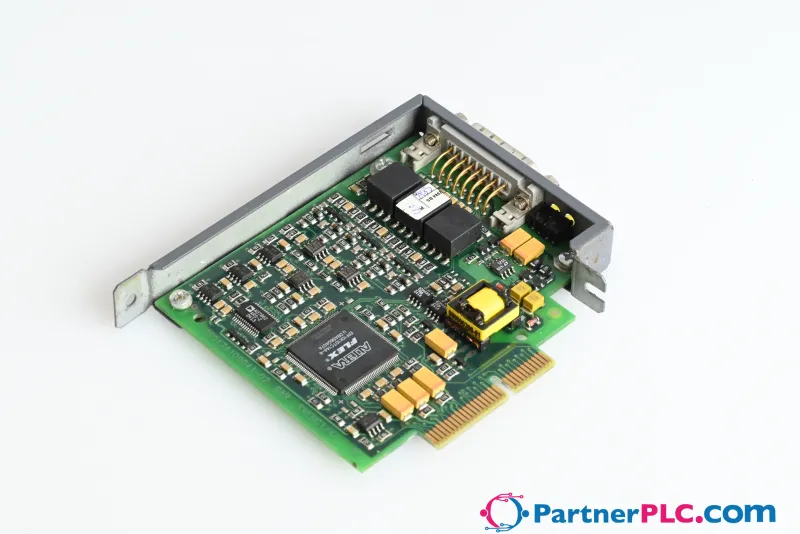

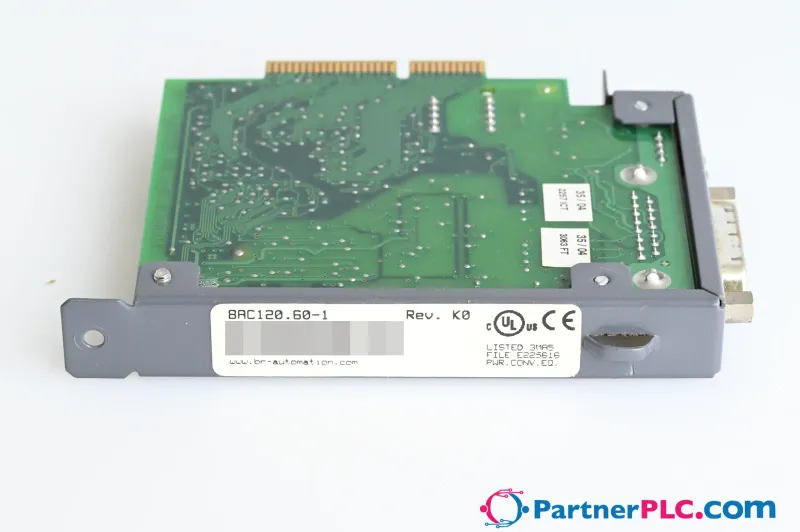

ACOPOS plug-in module, EnDat encoder and sine incremental encoder interface

Accessories

Optional accessories (6)

8CE025.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 25 m…
8CE020.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 20 m…
8CE015.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 15 m…
8CE010.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 10 m…
8CE007.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 7 m,…
8CE005.12-1	EnDat 2.1 cables — Can be used in cable drag chains; Assembled specifically for use with ACOPOS servo drives and B&R servo motors EnDat 2.1 cable, length 5 m,…

Specifications

General information

Power consumption – Depends on connected encoder	Yes
Power consumption – E0 ... EnDat single-turn, 512 lines	Max. 2.3 W
Power consumption – E1 ... EnDat multi-turn, 512 lines	Max. 3.1 W
Power consumption – E2 ... EnDat single-turn, 32 lines (inductive)	Max. 3.1 W
Power consumption – E3 ... EnDat multi-turn, 32 lines (inductive)	Max. 3.1 W
Power consumption – E4 ... EnDat single-turn, 512 lines	Max. 2.4 W
Power consumption – E5 ... EnDat multi-turn, 512 lines	Max. 2.7 W
Power consumption – E8 ... EnDat single-turn, 16 lines (inductive)	Max. 2.9 W
Power consumption – E9 ... EnDat multi-turn, 16 lines (inductive)	Max. 3.1 W
Power consumption – EA ... EnDat single-turn, 32 lines (inductive)	Max. 2.7 W
Power consumption – EB ... EnDat multi-turn, 32 lines (inductive)	Max. 3.0 W
Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Non-compliant
Certifications – UL	cULus E225616; Power conversion equipment
Certifications – KC	Yes
Module type	ACOPOS plug-in module
B&R ID code	0x0FCC
Slot " data-placement="top" data-html="true" data-container="body" data-content="The AC120 is an encoder module. It is also possible to connect multiple encoder modules. In this case, the encoder module in the smallest slot automatically serves as motor feedback.">	Slots 2, 3 and 4

Encoder inputs

Electrical isolation – Encoder - ACOPOS	No
Encoder power supply – Output voltage	Typ. 5 V
Encoder power supply – Load capacity	250 mA " data-placement="top" data-html="true" data-container="body" data-content="The value refers only to the encoder. The actual load capacity of the encoder power supply is approx. 300 mA. The difference of approx. 50 mA covers the consumption of the always-existing terminating resistors. For longer encoder cables, it is important to ensure that the voltage drop on the supply wires (back and forth) is not permitted to exceed 1.45 V. This can reduce the permissible load current.">
Encoder power supply – Sense lines	2, compensation of max. 2x 0.7 V
Sine/Cosine inputs – Signal transmission	Differential signals, symmetrical
Sine/Cosine inputs – Signal frequency (-3 dB)	DC up to 300 kHz
Sine/Cosine inputs – Signal frequency (-5 dB)	DC up to 400 kHz
Sine/Cosine inputs – Differential voltage	0.5 to 1.25 V ss
Sine/Cosine inputs – Common-mode voltage	Max. ±7 V
Sine/Cosine inputs – Terminating resistor	120 Ω
Sine/Cosine inputs – Resolution " data-placement="top" data-html="true" data-container="body" data-content="Depending on the resolution of the connected encoder, only part of this resolution can be used in practice. In addition, the usable resolution can be reduced by signal noise of the connected encoder.">	16384 * Number of encoder lines
Sine/Cosine inputs – Accuracy " data-placement="top" data-html="true" data-container="body" data-content="In practice, the accuracy is limited by the encoder.">	-
Reference input – Signal transmission	Differential signal, symmetrical
Reference input – Differential voltage for low	≤-0.2 V
Reference input – Differential voltage for high	≥+0.2 V
Reference input – Common-mode voltage	Max. ±7 V
Reference input – Terminating resistor	120 Ω
Serial interface – Signal transmission	Synchronous
Serial interface – Protocol	RS485
Serial interface – Baud rate	625 kbaud
Quantity	1
Module-side connection	15-pin female DSUB

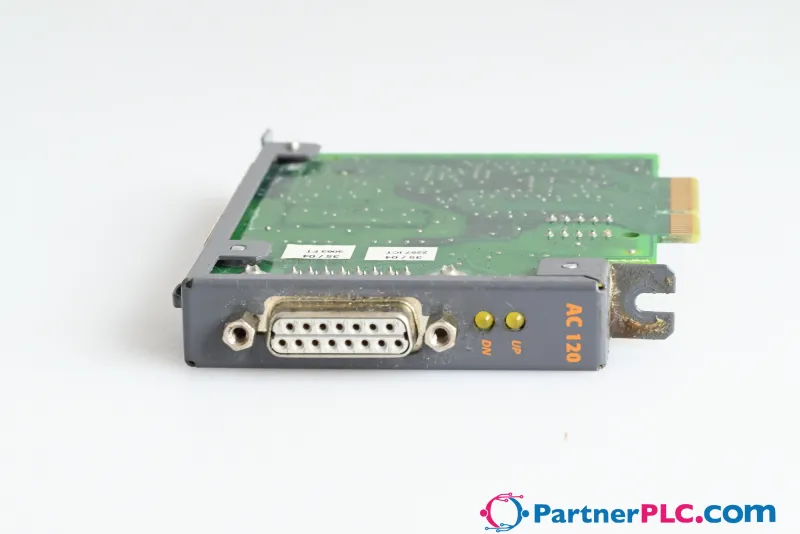

Status indicators	UP/DN LEDs
Encoder monitoring	Yes
Max. encoder cable length	50 m " data-placement="top" data-html="true" data-container="body" data-content="Requirement: Wiring takes place with a shielded cable with a wire cross section of min. 0.14 mm² for all signal lines and a wire cross section of min. 0.5 mm² for all encoder power supply lines. The sense lines must be used.">

Ambient conditions

Temperature – Nominal	5 to 40°C
Temperature – Maximum	55°C
Temperature – Storage	-25 to 55°C
Temperature – Transport	-25 to 70°C
Relative humidity – Operation	5 to 85%
Relative humidity – Storage	5 to 95%
Relative humidity – Transport	Max. 95% at 40°C
