Refurbished

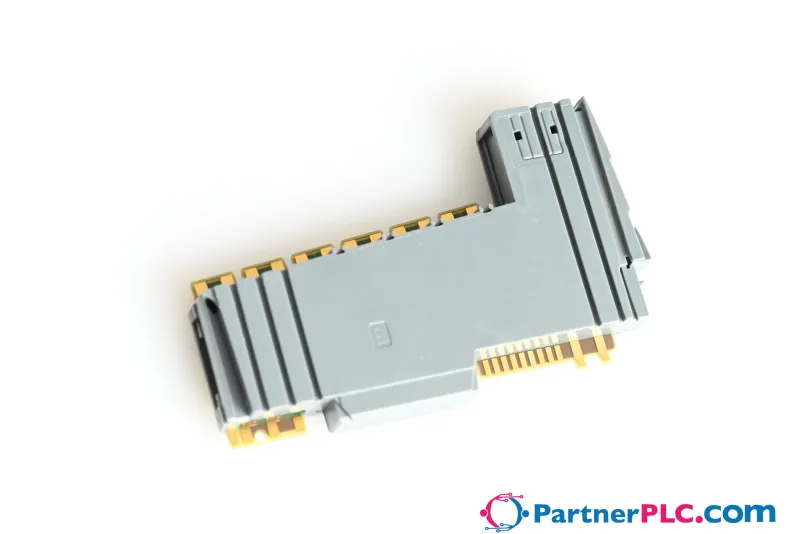

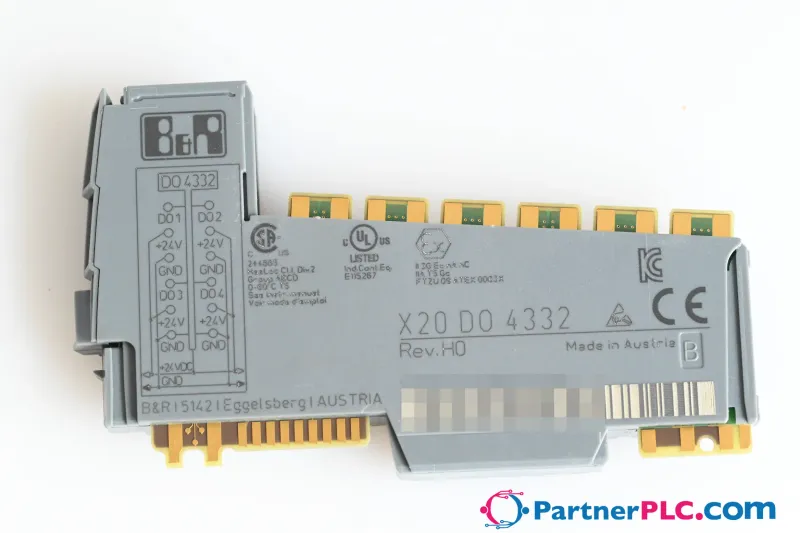

X20DO4332 | B&R Industrial Automation
MPN: X20DO4332 · Brand: B&R
€30.74 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 11 available |
| Category | Digital I/O Modules |
| Warranty | 3-month |
| Weight | 0.04 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20DO4332 be shipped?
X20DO4332 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20DO4332 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20DO4332.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20DO4332, subject to availability and destination.
• 4 digital outputs with 2 A
• Source connection
• 3-wire connections
• 24 VDC and GND for actuator supply
• Integrated output protection
• OSP mode
The module is equipped with 4 outputs with 3-wire connections as well as 24 VDC and GND for the actuator power supply. The outputs are designed for a source circuit. The nominal output current is 2 A.
Accessories
Required accessories (order separately)
| X20BM15 | Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe… |
| X20BM11 | Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 4 digital outputs 24 VDC for 3-wire connections |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Outputs | Yes, using LED status indicator and software (output error status) |
| Power consumption – Bus | 0.1 W (Rev. <L0: 0.16 W) |
| Power consumption – Internal I/O | 0.49 W |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – KC | Yes |
| B&R ID code | 0x1B9C |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x R<sub>DS(on)</sub> x Nominal output current<sup>2</sup>. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual."> | +1 (Rev. <L0: +1.6) |
Digital outputs
| Switching delay " data-placement="top" data-html="true" data-container="body" data-content="At loads ≤ 1 kΩ"> – 0 → 1 | <300 µs |
| Switching delay " data-placement="top" data-html="true" data-container="body" data-content="At loads ≤ 1 kΩ"> – 1 → 0 | <300 µs |
| Switching frequency – Resistive load " data-placement="top" data-html="true" data-container="body" data-content="At loads ≤ 1 kΩ"> | Max. 500 Hz |
| Switching frequency – Inductive load | See section "Switching inductive loads". |
| Variant | Current-sourcing FET |
| Nominal voltage | 24 VDC |
| Switching voltage | 24 VDC -15% / +20% |
| Nominal output current | 2 A |
| Total nominal current | 8 A (Rev. <H0: 4 A) |
| Connection type | 3-wire connections |
| Output circuit | Source |
| Output protection | Thermal shutdown in the event of overcurrent or short circuit (see value "Short-circuit peak current"); Internal freewheeling diode for switching inductive loads (see section "Switching inductive loads") |
| Actuator power supply | 0.5 A in total for output-independent actuator power supply |
| Diagnostic status | Output monitoring with 10 ms delay |
| Leakage current when the output is switched off | 5 µA |
| R DS(on) | 60 mΩ (Rev. <L0: 100 mΩ) |
| Peak short-circuit current | <4 A (Rev. <H0: <12 A) |
| Switch-on in the event of overload shutdown or short-circuit shutdown | Approx. 10 ms (depends on the module temperature) |
| Braking voltage when switching off inductive loads | Typ. 50 VDC |
| Insulation voltage between channel and bus | 500 V eff |
| Additional functions | Outputs can be connected in parallel to increase the output current. |
Actuator power supply
| Power consumption – Actuator power supply | Max. 12 W " data-placement="top" data-html="true" data-container="body" data-content="The power consumption of the sensors connected to the module is not permitted to exceed 12 W."> |
| Voltage | Module power supply minus voltage drop for short-circuit protection |
| Voltage drop for short-circuit protection at 500 mA | Max. 2 V |
| Short-circuit proof | Yes |
Electrical properties
| Electrical isolation | Channel isolated from bus; Channel not isolated from channel and I/O power supply |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C |
| Temperature – Vertical mounting orientation | -25 to 50°C |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet X20(c)DO4332 | PDF · 887 KB · 3.40 (10/01/2024) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
Certificates (9)
| 2226379 CSA Certificate of Compliance X20 X67 | PDF · 205 KB · 2026_09 (09/21/2026) |
| E115267 UL Certificate of Compliance X20 | PDF · 3 MB · 2026_08_27 (08/27/2026) |
| EU Data Act - X20 IO - Connected Product Information Notice | PDF · 92 KB · 1.00 (09/30/2025) |
| EU Declaration ATEX X20 | PDF · 218 KB · 2023-07 (09/05/2023) |
| EU Declaration of conformity PLC X20 | PDF · 169 KB · 2021/10 (11/08/2021) |
| FTZU 09 ATEX 0083X | PDF · 771 KB · 3.00 (10/12/2021) |
| Safe cutoff of potential groups | PDF · 211 KB · 2.4 (11/29/2023) - EN |
| UK Declaration PLC X20 | PDF · 151 KB · 2024-01 (01/18/2024) |
| X20, X67 KC certificates | PDF · 7 MB · 2.00 (08/17/2026) |
