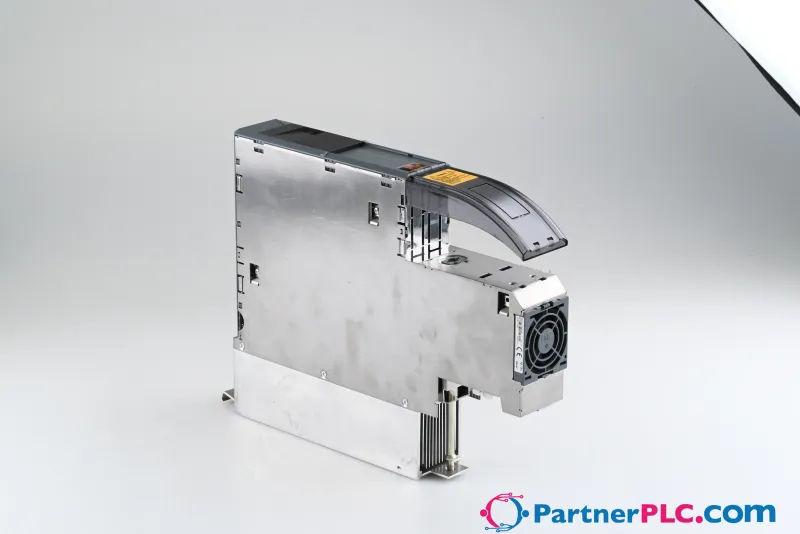

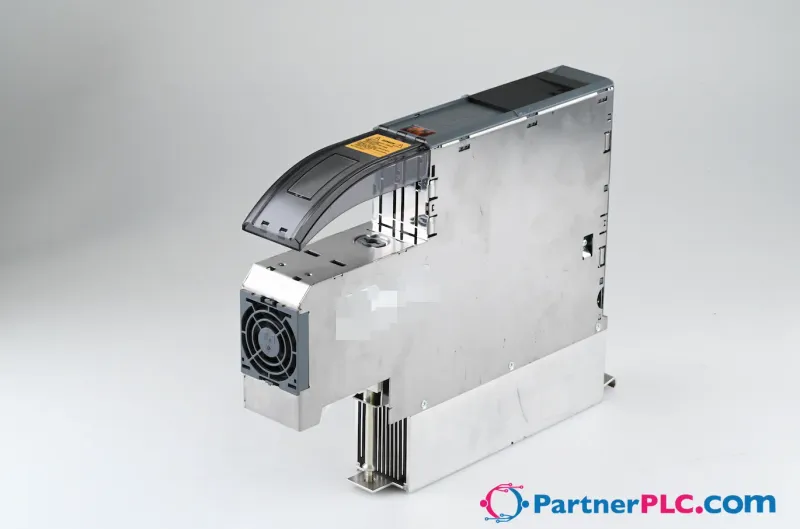

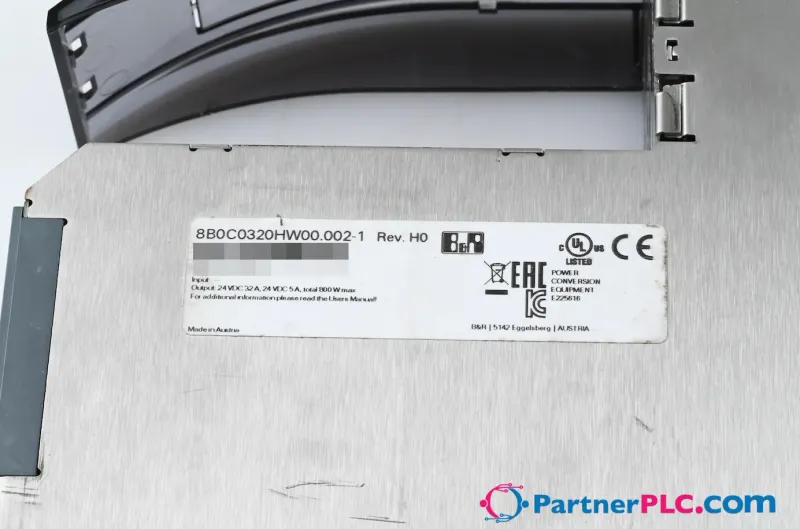

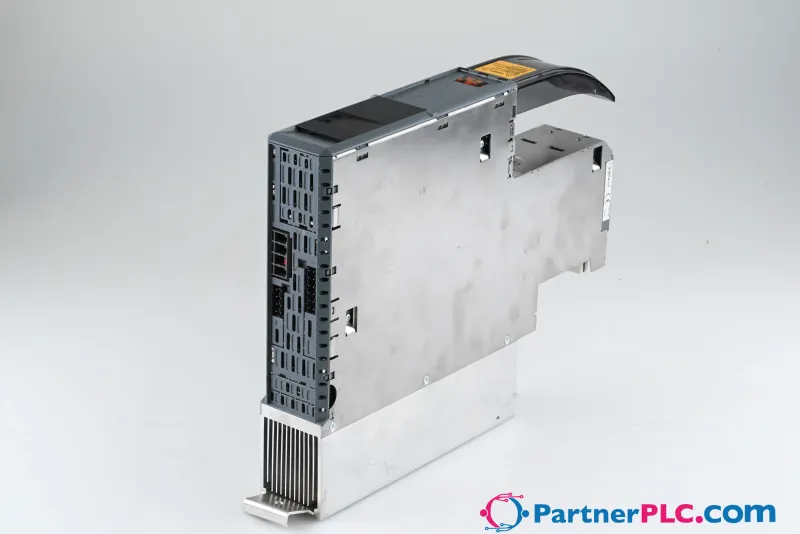

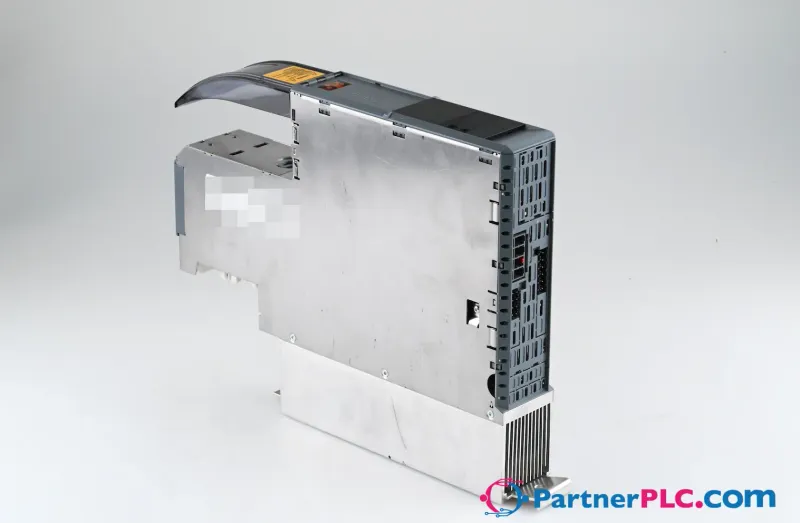

B&R 8B0C0320HW00.002-1 Used Rev. H0 – Connections for supplying external 24 V devices
MPN: 8B0C0320HW00.002-1 · Brand: B&R
€2,754.94 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Servo & Motion Control |
| Warranty | 3-month |
| Weight | 3.2 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8B0C0320HW00.002-1 be shipped?
8B0C0320HW00.002-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8B0C0320HW00.002-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8B0C0320HW00.002-1.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8B0C0320HW00.002-1, subject to availability and destination.
• Connections for supplying external 24 V devices
• Extensive protective measures
ACOPOSmulti auxiliary supply module, 32 A, AS, wall mounting, 24 VOut 1x 32 A, 1x 5 A
Accessories
Required accessories (order separately)
| 8BZ0C032000.002-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8B0C0320Hx00.002-1 modules: 1x 8TB3104.201M-11, 1x 8TB2104.2010-00, 1x 8TB2106.2010-00 |
Optional accessories (4)
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| 8TB3104.201M-11 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 1: Numbered consecutively, coding M: 1011 |
| 8TB2106.2010-00 | Terminal blocks — 6-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2104.2010-00 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
Specifications
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| Cooling and mounting type | Wall mounting |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Voltage – Operating range in continuous operation | 260 to 800 VDC |
| Voltage – Full continuous power | 315 to 800 VDC |
| Continuous power consumption | Max. 880 W |
| Power dissipation with continuous power " data-placement="top" data-html="true" data-container="body" data-content="Continuous power on 24 VDC output"> | 22 W (0% continuous power); 35 W (50% continuous power); 80 W (100% continuous power) |
| DC bus capacitance | 220 nF |
| Variant | ACOPOSmulti backplane |
24 VDC output
| Output voltage – DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC / 315) |
| Output voltage – DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Reduction of continuous power depending on installation elevation – Starting at 500 m above sea level | 80 W per 1000 m |
| Continuous power " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 55°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 800 W |
| Continuous current | 32 ADC |
| Reduction of continuous power at ambient temperatures starting at 40°C | No reduction |
| Reduction of continuous power depending on cooling method | No reduction |
| Startup delay | Max. 1 s |
| Startup time | Approx. 5 to 20 ms |
| Residual ripple | Typ. 50 mV SS |
24 VDC internal system power supply
| Peak current (<4 s) – DC bus voltage (U DC ): 350 to 800 VDC | 42 ADC |
| Protective measures – No-load proof | Yes |
| Protective measures – Overload-proof | Yes |
| Protective measures – Short-circuit proof | Yes |
| Protective measures – Feedback protection | Max. 26 VDC (also when the power is switched off) |
| Protective measures – Overtemperature protection | Yes |
| Protective measures – Dielectric strength to ground | ±50 VDC |
| Protective measures – Output/Input isolation | SELV / PELV requirements |
| Output voltage " data-placement="top" data-html="true" data-container="body" data-content="The output voltage is limited to max. 60 VDC in the event of fault."> | 25 VDC ±1.6% |
| Variant | ACOPOSmulti backplane |
24 VDC Out
| Output voltage " data-placement="top" data-html="true" data-container="body" data-content="The output voltage is limited to max. 60 VDC in the event of fault."> – DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC / 315) |
| Output voltage " data-placement="top" data-html="true" data-container="body" data-content="The output voltage is limited to max. 60 VDC in the event of fault."> – DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Protective measures – No-load proof | Yes |
| Protective measures – Overload-proof | Yes |
| Protective measures – Short-circuit proof | Yes |
| Protective measures – Feedback protection | Max. 35 VDC (also when the power is switched off) |
| Protective measures – Overtemperature protection | Yes |
| Protective measures – Dielectric strength to ground | ±50 VDC |
| Protective measures – Output/Input isolation | SELV / PELV requirements |
| Variant – 24 VDC, COM | Connector |
| Terminal connection cross section of 24 VDC Out 1 output – With wire end sleeve | 0.25 to 6 mm² |
| Terminal connection cross section of 24 VDC Out 1 output – UL/C-UL-US | 22 to 10 AWG |
| Terminal connection cross section of 24 VDC Out 1 output – CSA | 22 to 10 AWG |
| Terminal connection cross section of 24 VDC Out 2 output – With wire end sleeve | 0.25 to 2.5 mm² |
| Terminal connection cross section of 24 VDC Out 2 output – UL/C-UL-US | 22 to 12 AWG |
| Terminal connection cross section of 24 VDC Out 2 output – CSA | 22 to 12 AWG |
| Protection of 24 VDC Out 1 output | 32 A (slow-blow) electronic, automatic reset " data-placement="top" data-html="true" data-container="body" data-content="If the continuous current exceeds a value of approx. 36 A for more than 0.75 s (typ.), the output is cut off and switched on again after a waiting time of 2.5 s (typ.)."> |
| Protection of 24 VDC Out 2 output | 5 A (slow-blow) electronic, automatic reset " data-placement="top" data-html="true" data-container="body" data-content="In the event of a short circuit, the output is cut off after approx. 6 s."> |
24 VDC Out 1 controller input
| Electrical isolation – Input - 24 VDC | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low (24 VDC Out 1 is switched on) | <5 V |
| Switching threshold – High (24 VDC Out 1 is switched off) " data-placement="top" data-html="true" data-container="body" data-content="When switching off, there is no active discharge of the output and the loads connected to it."> | >15 V |
| Switching delay – ON (24 VDC Out 1 is switched on) | Max. 25 ms |
| Switching delay – OFF (24 VDC Out 1 is switched off) | Max. 0.25 ms |
| Terminal connection cross sections – With wire end sleeve | 0.25 to 2.5 mm² |
| Terminal connection cross sections – UL/C-UL-US | 30 to 12 AWG |
| Terminal connection cross sections – CSA | 22 to 12 AWG |
| Circuit | Sink |
| Modulation compared to ground potential | Max. ±50 V |
| Input current at nominal voltage | Approx. 10 mA |
| Variant | Connector |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous power into account. Requirements that go beyond this must be arranged with B&R."> | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Wall mounting | 263 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Width | 53 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Height | 317 mm |
| Weight | Approx. 3.2 kg |
| Module width | 1 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8B0C0320HW00.002-1 | PDF · 665 KB · 1.4 (10/18/2018) - EN |
| ACOPOSmulti User´s Manual | PDF · 309 MB · 1.30 (08/18/2025) - EN |
CAD & dimension drawings
| 3D file STEP 8B0C0xx0HW00.xxx-1 | ZIP · 105 KB · 3.0 (04/09/2011) |
Certificates (5)
| ACOPOSmulti KC certificates | ZIP · 3 MB · 1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | PDF · 282 KB · 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | PDF · 183 KB · 2.10 (07/20/2022) |
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
