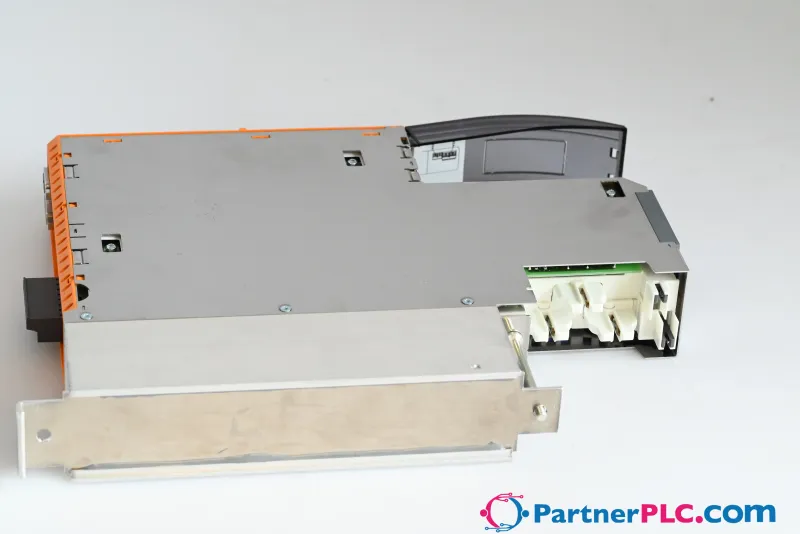

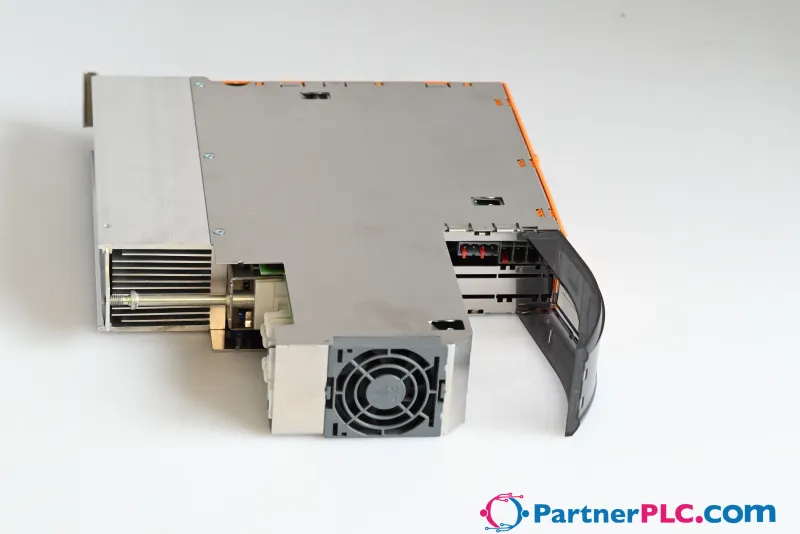

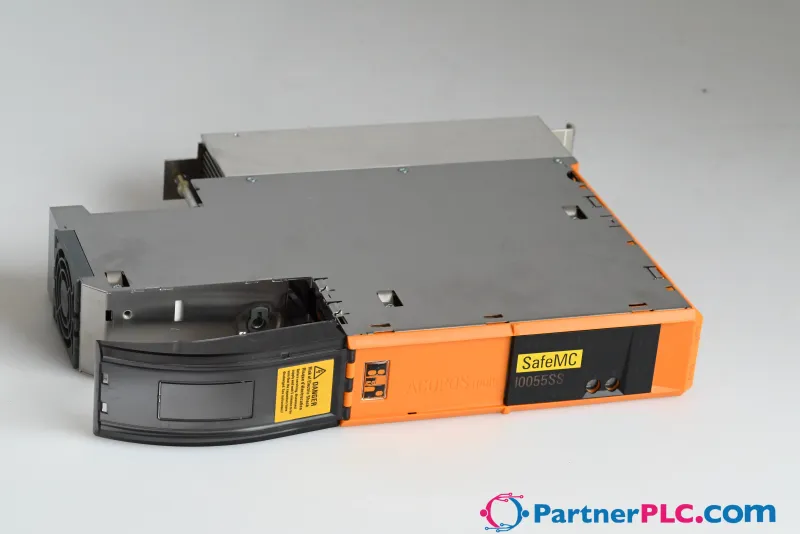

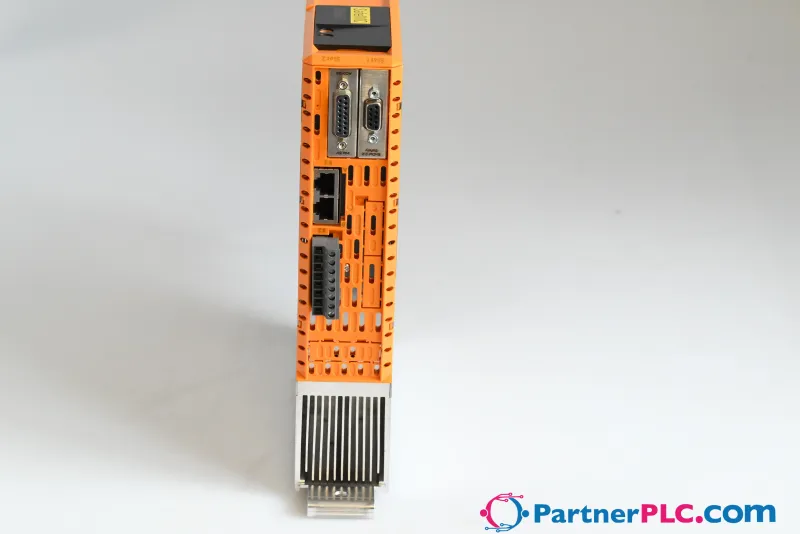

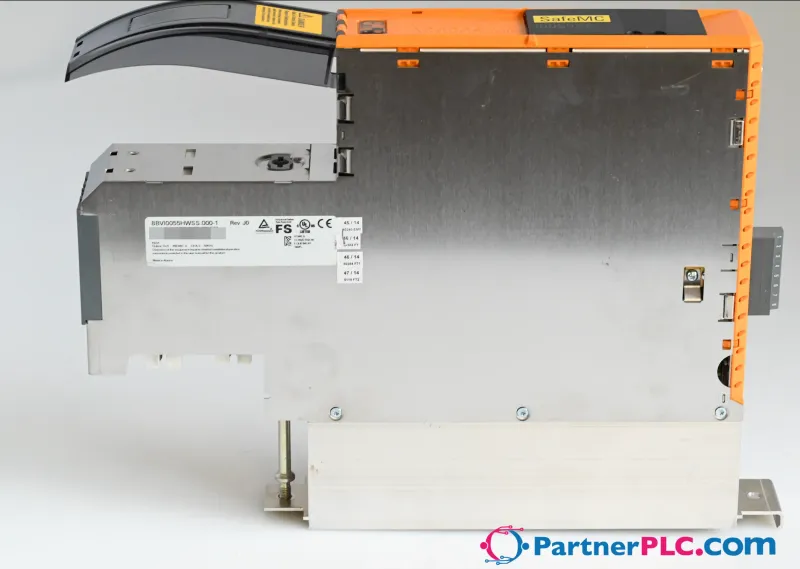

B&R 8BVI0055HWSS.000-1 Used Rev. J0 – Clearly structured, straightforward implementation via…
MPN: 8BVI0055HWSS.000-1 · Brand: B&R
€2,118.94 excl. VAT & shipping
Request a Quote
3-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 1 available |
| Category | Servo & Motion Control |
| Warranty | 3-month |
| Weight | 2.7 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can 8BVI0055HWSS.000-1 be shipped?
8BVI0055HWSS.000-1 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up 8BVI0055HWSS.000-1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like 8BVI0055HWSS.000-1.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 8BVI0055HWSS.000-1, subject to availability and destination.
• Clearly structured, straightforward implementation via network-based safety technology
• Modular expandability through virtual wiring
• Immediate triggering of safety function thanks to short cycle times
• Easy implementation thanks to transparent control and status information, also in the standard application
• Compact construction, complete functionality of safety functions even in two-axis modules
ACOPOSmulti SafeMOTION EnDat 2.2 inverter module, 7.6 A, AS, wall mounting
Accessories
Required accessories (order separately)
| 8BZVI0055SS.000-1A | Terminal block sets — Screw clamp terminal block set for ACOPOSmulti 8BVI00xxHxSS and 8BVI00xxHxSA modules: 1x 8TB3104.204G-11, 1x 8TB2104.203L-00, 1x 8TB2108.20… |
Optional accessories (27)
| 8BXB000.0000-00 | Accessory sets — ACOPOSmulti accessory set for encoder buffering consisting of: 1x battery AA 3.6 V, 1x protective cover for battery holder |
| 8BXF001.0000-00 | Fan modules — ACOPOSmulti fan module, replacement fan for ACOPOSmulti modules (8BxP/8B0C/8BVI/8BVE/8B0K) |
| X20CA0E61.00100 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 1 m |
| X20CA0E61.00050 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.5 m |
| X20CA0E61.00035 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.35 m |
| X20CA0E61.00030 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.3 m |
| X20CA0E61.00025 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.25 m |
| X20CA0E61.00020 | POWERLINK/Ethernet cables — POWERLINK/Ethernet connection cable, RJ45 to RJ45, 0.2 m |
| 8BAC0133.000-1 | Plug-in modules — Encoder emulation module for installation in ACOPOSmulti modules; 3 RS422 outputs; ABR encoder emulation ACOPOSmulti plug-in module, 3 RS42… |
| 8BAC0132.000-1 | Plug-in modules — Analog input module for installation in ACOPOSmulti modules; 4 high-speed analog inputs ±10 V ACOPOSmulti plug-in module, 4 analog inputs ±… |
| 8BAC0130.001-1 | Plug-in modules — Digital output module for installation in ACOPOSmulti modules; 2 high-speed outputs, +24 VDC; 2 standard readable outputs, +24 VDC ACOPOSmu… |
| 8BAC0130.000-1 | Plug-in modules — Digital mixed module for installation in ACOPOSmulti modules; 2 inputs, +24 VDC; 2 high-speed outputs, +24 VDC; 2 standard readable outputs… |
| 8BAC0125.000-1 | Plug-in modules — Interface for evaluating sinusoidal output signals; Functions and protocols selected through configuration (using a higher-level controller… |
| 8BAC0124.000-1 | Plug-in modules — SinCos interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with sinusoidal output signal; Encoder supply… |
| 8BAC0123.002-1 | Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp… |
| 8BAC0123.001-1 | Plug-in modules — Incremental encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental encoders with push, pull or push-pull outp… |
| 8BAC0123.000-1 | Plug-in modules — Incremental encoder and SSI absolute encoder interface for installation in ACOPOSmulti modules; Evaluation of incremental/SSI encoders with… |
| 8BAC0122.000-1 | Plug-in modules — Resolver interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, resolver interf… |
| 8BAC0121.000-1 | Plug-in modules — HIPERFACE interface for installation in ACOPOSmulti modules; Encoder monitoring; High resolution ACOPOSmulti plug-in module, HIPERFACE inte… |
| 8BAC0120.001-2 | Plug-in modules — EnDat 2.2 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; Embedded parameter chip when used with B&R motors… |
| 8BAC0120.000-1 | Plug-in modules — EnDat 2.1 encoder interface for installation in ACOPOSmulti modules; Encoder monitoring; High-precision analog signal processing; Embedded… |
| 8SCS009.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x ACOPOSmulti holding plate SK8-14, 1x shield connection clamp SK14 |
| 8SCS002.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x clamping plate, 2x clamp D 4-13.5 mm, 2x screws |
| 8SCS000.0000-00 | Shield component sets — ACOPOSmulti shield component set: 1x shield plate 1x type 0, 1x hose clamp, B 9 mm, D 12-22 mm |
| 8TB3104.204G-11 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 7.62 mm, label 4: PE W V U, coding G: 0110 |
| 8TB2108.2010-00 | Terminal blocks — 8-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 1: Numbered consecutively |
| 8TB2104.203L-00 | Terminal blocks — 4-pin screw clamp terminal block, 1-row, pitch: 5.08 mm, label 3: T- T+ B- B+, coding L: 1010 |
Specifications
General information
| Support – Dynamic node allocation (DNA) | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Evaluation ongoing |
| Certifications – Functional safety | Yes (openSAFETY) |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| B&R ID code | 0xAA16 |
| Cooling and mounting type | Wall mounting |
| Slots for plug-in modules | 2 " data-placement="top" data-html="true" data-container="body" data-content="SLOT 2 is available. SLOT 1 of the ACOPOSmulti module is occupied by the SafeMOTION module."> |
DC bus connection
| Voltage – Nominal | 750 VDC |
| Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 5 kHz | [0.6 * I M ² + 1.3 * I M + 60] W |
| Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 10 kHz | [0.97 * I M ² + 0.5 * I M + 110] W |
| Power dissipation depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="I<sub>M</sub> ... Current on motor connection X5A [A<sub>eff</sub>]"> – Switching frequency 20 kHz | [1.7 * I M ² - 0.7 * I M + 225] W |
| Continuous power consumption " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 5.6 kW |
| DC bus capacitance | 165 µF |
| Variant | ACOPOSmulti backplane |
24 VDC power supply
| Input voltage | 25 VDC ±1.6% |
| Input capacitance | 23.5 µF |
| Max. power consumption | 18 W + P SMC1 + P SLOT2 + P 24 V Out + P HoldingBrake " data-placement="top" data-html="true" data-container="body" data-content="P<sub>SMC1</sub> ... Max. power consumption P<sub>SMC</sub> [W] of the SafeMOTION module in SLOT1 (see section "Encoder interfaces"). <br>P<sub>SLOT2</sub> ... Max. power consumption P<sub>8BAC</sub> [W] of the plug-in module in SLOT2 (see the technical data for the respective plug-in module). <br>P<sub>24 V Out</sub> ... Power [W] that is output to connections X2/+24 V Out 1 and X2/+24 V Out 2 on the module (max. 10 W)."> |
| Variant | ACOPOSmulti backplane |
24 VDC output
| Output voltage – DC bus voltage (U DC ): 260 to 315 VDC | 25 VDC * (U DC /315) |
| Output voltage – DC bus voltage (U DC ): 315 to 800 VDC | 24 VDC ±6% |
| Quantity | 2 |
| Fuse protection | 250 mA (slow-blow) electronic, automatic reset |
Motor connection " data-placement="top" data-html="true" data-container="body" data-content="Only B&R 8BCM motor cables are permitted to be used for wiring the motor connections!">
| Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature."> – Switching frequency 5 kHz | No reduction " data-placement="top" data-html="true" data-container="body" data-content="Value for the nominal switching frequency."> |
| Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature."> – Switching frequency 10 kHz | 0.2 A/K (starting at 49°C) |
| Reduction of continuous current depending on switching frequency " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage. The temperature specifications refer to the ambient temperature."> – Switching frequency 20 kHz | 0.13 A/K (starting at 4°C) " data-placement="top" data-html="true" data-container="body" data-content="The module cannot supply the full continuous current at this switching frequency. This unusual value for the ambient temperature, at which derating of the continuous current must be taken into account, ensures that the derating of the continuous current can be determined in the same manner as at other switching frequencies."> |
| Reduction of continuous current depending on installation elevation – Starting at 500 m above sea level | 0.76 A eff per 1000 m |
| Protective measures – Overload protection | Yes |
| Protective measures – Short-circuit and ground fault protection | Yes |
| Variant – U, V, W, PE | Connector |
| Variant – Shield connection | Yes |
| Terminal connection cross section – With wire end sleeve | 0.25 to 4 mm² |
| Terminal connection cross section – UL/C-UL-US | 30 to 10 |
| Terminal connection cross section – CSA | 28 to 10 |
| Max. motor line length depending on switching frequency – Switching frequency 5 kHz | 25 m |
| Max. motor line length depending on switching frequency – Switching frequency 10 kHz | 25 m |
| Max. motor line length depending on switching frequency – Switching frequency 20 kHz | 10 m |
| Quantity | 1 |
| Continuous power per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 5.5 kW |
| Continuous current per motor connection " data-placement="top" data-html="true" data-container="body" data-content="Valid under the following conditions: 750 VDC DC bus voltage, 5 kHz switching frequency, 40°C ambient temperature, installation elevation <500 m above sea level, no derating due to cooling type."> | 7.6 A eff |
| Peak current | 18.9 A eff |
| Nominal switching frequency | 5 kHz |
| Possible switching frequencies " data-placement="top" data-html="true" data-container="body" data-content="B&R recommends operating the module at its nominal switching frequency. Operating the module at a higher switching frequency for application-specific reasons reduces the continuous current and increases CPU utilization."> | 5 / 10 / 20 kHz |
| Insulation stress of the connected motor per IEC TS 60034-25:2004 " data-placement="top" data-html="true" data-container="body" data-content="If necessary, the stress of the motor isolation system can be reduced by an additional externally wired dv/dt choke. For example, the RWK 305 three-phase dv/dt choke from Schaffner (www.schaffner.com) can be used. IMPORTANT: Even when using a dv/dt choke, it is necessary to ensure that an EMC-compatible, low inductance shield connection is used!"> | Limit value curve A " data-placement="top" data-html="true" data-container="body" data-content="Only applies when using B&R motor cables and B&R motors."> |
| Max. output frequency | 598 Hz " data-placement="top" data-html="true" data-container="body" data-content="The module's electrical output frequency (SCTRL_SPEED_ACT * MOTOR_POLEPAIRS) is monitored to protect against dual use in accordance with Regulation (EC) 428/2009 | 3A225. If the electrical output frequency of the module exceeds the limit value of 598 Hz uninterrupted for more than 0.5 s, then the current movement is aborted and error 6060 is output ("Power unit: Limit speed exceeded")."> |
| Terminal cable cross section dimension of shield connection | 12 to 22 mm |
Motor holding brake connection
| Protective measures – Overload and short-circuit protection | Yes |
| Protective measures – Open-circuit monitoring | Yes |
| Protective measures – Undervoltage monitoring | Yes |
| Quantity | 1 |
| Output voltage " data-placement="top" data-html="true" data-container="body" data-content="During configuration, it is necessary to check if the minimum voltage can be maintained on the holding brake with the intended wiring. For the operating voltage range of the holding brake, see the user documentation for the motor being used."> | 24 VDC +5.8% / -0% " data-placement="top" data-html="true" data-container="body" data-content="The specified value is only valid under the following conditions: <br>- The 24 VDC power supply for the module is provided by an 8B0C auxiliary supply module located on the same mounting plate. <br>If the 24 VDC power supply for the module is applied to the mounting plate using an 8BVE expansion module, then the output voltage is reduced because of voltage drops on the expansion cable. In this case, undervoltage monitoring must be disabled."> |
| Continuous current per connection | 1.1 A |
| Max. internal resistance | 0.5 Ω |
| Extinction potential | Approx. 30 V |
| Max. extinction energy per switching operation | 1.5 Ws |
| Max. switching frequency | 0.5 Hz |
| Response threshold for open-circuit monitoring | Approx. 0.25 A |
| Response threshold for undervoltage monitoring | 24 VDC -2% / -4% |
Encoder interfaces " data-placement="top" data-html="true" data-container="body" data-content="Only B&R 8BCF EnDat 2.2 cables are permitted to be used for wiring the encoder interfaces.">
| Electrical isolation – Encoder - ACOPOSmulti | No |
| Encoder power supply – Short-circuit proof | Yes |
| Encoder power supply – Overload-proof | Yes |
| Encoder power supply – Output voltage | Typ. 12.5 V |
| Encoder power supply – Load capacity | 350 mA |
| Synchronous serial interface – Signal transmission | RS485 |
| Synchronous serial interface – Data transfer rate | 6.25 Mbit/s |
| Quantity | 1 |
| Type | EnDat 2.2 " data-placement="top" data-html="true" data-container="body" data-content="An EnDat 2.2 functional safety encoder is required when using ACOPOSmulti SafeMOTION inverter modules! With standard EnDat 2.2 encoders, only the STO, SBC and time-monitored SS1 safety functions are available!"> |
| Connections | 9-pin female DSUB connector |
| Status indicators | UP/DN LEDs |
| Encoder monitoring | Yes |
| Max. encoder cable length | 100 m ; Depends on the cross section of the power supply wires in the encoder cable " data-placement="top" data-html="true" data-container="body" data-content="Maximum encoder cable length l<sub>max</sub> can be calculated as follows (the maximum permissible encoder cable length of 100 m is not permitted to be exceeded): <br><br>l<sub>max</sub> = 7.9 / I<sub>G</sub> * A * 1/(2*ρ) <br><br>I<sub>G</sub> ... Max. current consumption of the encoder [A] <br>A ... Cross section of the power supply wires [mm²] <br>ρ ... Specific resistance [Ω mm²/m] (e.g. for copper: ρ = 0.0178)"> |
| Max. power consumption per encoder interface | P SMC [W] = 19 V * I Encoder [A] " data-placement="top" data-html="true" data-container="body" data-content="I<sub>Encoder</sub> ... Max. current consumption of the connected encoder [A]."> |
Trigger inputs
| Electrical isolation – Input - Inverter module | Yes |
| Electrical isolation – Input - Input | Yes |
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 V |
| Switching threshold – High | >15 V |
| Switching delay – Rising edge | 52 µs ±0.5 µs (digitally filtered) |
| Switching delay – Falling edge | 53 µs ±0.5 µs (digitally filtered) |
| Quantity | 2 |
| Circuit | Sink |
| Input current at nominal voltage | Approx. 10 mA |
| Modulation compared to ground potential | Max. ±38 V |
Temperature sensor connection
| Quantity | 1 |
| Resistance range | 500 Ω to 5 kΩ |
Electrical properties
| Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Power dissipation relative to continuous apparent power " data-placement="top" data-html="true" data-container="body" data-content="Continuous apparent power S[VA] = √3 * UMains[Vrms] * IMains[Arms]. IE2 notation (a,b) stands respectively for a load point with frequency a (as a percentage of the nominal frequency of the motor) and current b (as a percentage of the continuous current)."> | IE2 (10,25) 2.6% ; IE2 (50,25) 2.6% ; IE2 (10,50) 2.8% ; IE2 (50,50) 2.8% ; IE2 (90,50) 2.8% ; IE2 (10,100) 3.3% ; IE2 (50,100) 3.3% ; IE2 (90,100) 3.3% |
| Energy efficiency (IE classification) " data-placement="top" data-html="true" data-container="body" data-content="The IE classification of the module is based on drive losses. This includes components such as EMC filters, etc. The power dissipation was determined at a switching frequency of 5 kHz (factory setting). Classification is performed at 90% of the frequency and at 100% of the continuous current. When operating the module in connection with an induction motor, the module is only permitted to be operated with a switching frequency of 5 kHz."> – Nominal losses in standby mode | 8.3 W |
| Discharge capacitance | 0.14 µF |
Operating conditions
| Permissible mounting orientations – Hanging vertically | Yes |
| Permissible mounting orientations – Horizontal, face up | Yes |
| Permissible mounting orientations – Standing horizontally | No |
| Installation elevation above sea level – Nominal | 0 to 500 m |
| Installation elevation above sea level – Maximum " data-placement="top" data-html="true" data-container="body" data-content="Continuous operation at an installation elevation of 500 m to 4,000 m above sea level is possible taking the specified reduction of continuous current into account."> | 4000 m |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Overvoltage category per EN 61800-5-1 | III |
| Degree of protection per EN 60529 | IP20 " data-placement="top" data-html="true" data-container="body" data-content="This value only applies in its delivered state (SLOT2 of the module is sealed by a slot cover / shield plate). If SLOT2 on the module is not sealed, then the level of protection is reduced to IP10. It is important to note that a 8SCS005.0000-00 shield set (slot cover / shield plate) or plug-in module must always be inserted!"> |
Ambient conditions
| Temperature – Nominal | 5 to 40°C |
| Temperature – Maximum | 55°C |
| Temperature – Storage | -25 to 55°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 5 to 85% |
| Relative humidity – Storage | 5 to 95% |
| Relative humidity – Transport | Max. 95% at 40°C |
Mechanical properties
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Wall mounting | 263 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Width | 53 mm |
| Dimensions " data-placement="top" data-html="true" data-container="body" data-content="These dimensions refer to the actual device dimensions including the respective mounting plate. Additional spacing above and below the devices must be taken into account for mounting, connections and air circulation."> – Height | 317 mm |
| Weight | Approx. 2.7 kg |
| Module width | 1 |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Datasheet 8BVI0055HWSS.000-1 | PDF · 4 MB · 1.7 (02/19/2024) - EN |
| Integrated safety technology user's manual | PDF · 46 MB · 6.8.0 (09/02/2026) - EN |
| SafeMOTION User´s Manual | PDF · 35 MB · 4.9.2.1 (05/08/2026) - EN |
CAD & dimension drawings
| 3D file STEP 8BVI0055HWSx.000-x | ZIP · 150 KB · 1.1 (04/22/2024) |
Certificates (8)
| ACOPOSmulti KC certificates | ZIP · 3 MB · 1.10 (03/18/2024) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 508C) | PDF · 282 KB · 1.30 (07/20/2022) |
| E225616 UL Certificate of Compliance ACOPOSmulti (UL 61800-5-1) | PDF · 183 KB · 2.10 (07/20/2022) |
| EU Declaration FS Servos ACOPOSmulti | PDF · 989 KB · 2026-06 (07/08/2026) - EN |
| EU Declaration Servos ACOPOSmulti | PDF · 963 KB · 2026-06 (06/30/2026) |
| TÜV-Certificate - Functional Safety ACOPOSmulti SafeMOTION EnDat 2.2 | ZIP · 633 KB · 3.00 (10/15/2025) - EN |
| UK Declaration FS Servos ACOPOSmulti | PDF · 340 KB · 2026-06 (07/08/2026) - EN |
| UK Declaration Servos ACOPOSmulti | PDF · 337 KB · 2026-06 (06/29/2026) |
12-month warrantyon all new stock
3-month warrantyon used & refurbished parts
30-day returnsno restocking fee on unused parts
Global shippingFast, tracked delivery worldwide
More B&R parts
NewB&R 6PPT50.101E-10B New Rev. I0 – Power Panel T50, 10.1", glass frontMPN: 6PPT50.101E-10B · B&R
€2,718.90
View details
UsedB&R 5C5001.11 Used Rev. Q0 – Provit 5000 Controller system unit for Intel Celeron and…MPN: 5C5001.11 · B&R
€974.14
View details
UsedB&R 8BVI0055HWSS.000-1 Used Rev. G0 – Clearly structured, straightforward implementation via…MPN: 8BVI0055HWSS.000-1 · B&R
€2,118.94
View details
UsedB&R 5C5601.12 Used Rev. K0 – Provit 5600 Controller system unit for Intel Celeron and…MPN: 5C5601.12 · B&R
€868.14
View details
UsedB&R 5PC600.SX02-00 Used Rev. D0 – APC620 system unit 2 PCI slotsMPN: 5PC600.SX02-00 · B&R
€704.90
View details
