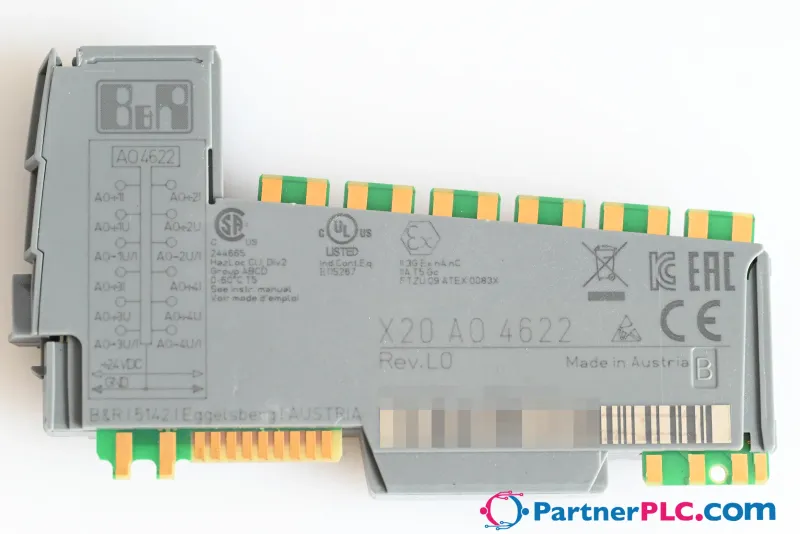

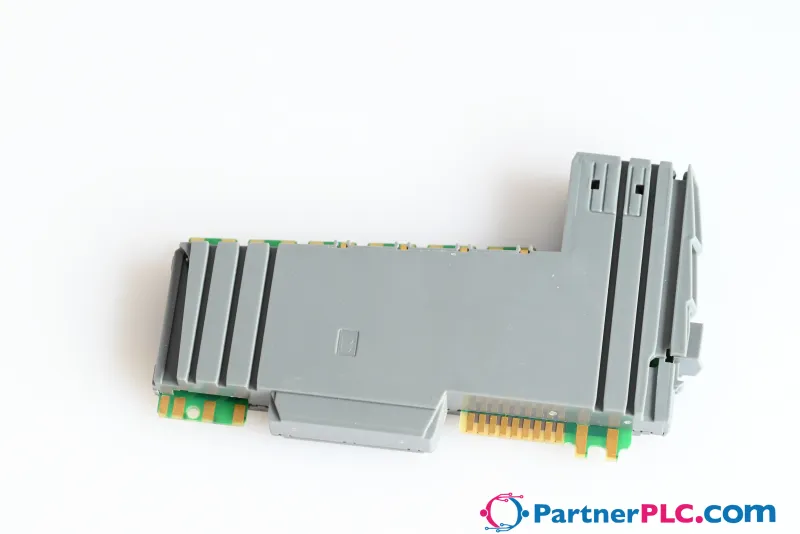

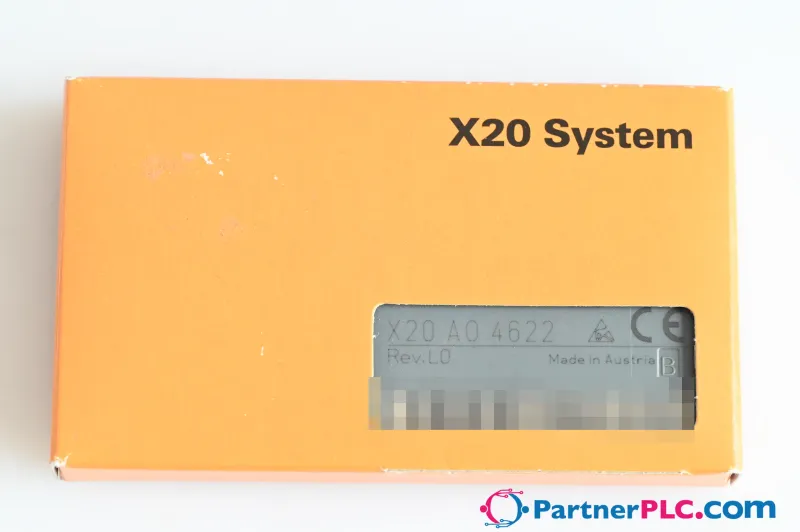

B&R X20AO4622 New Rev. L0 – 4 analog outputs; Either current or voltage signal possible
MPN: X20AO4622 · Brand: B&R
€221.54 excl. VAT & shipping
Request a Quote
12-month warranty
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | In stock — 2 available |
| Category | Analog I/O Modules |
| Warranty | 12-month |
| Weight | 0.1 kg |
| Country of origin | AT |
| Datasheet | Manufacturer datasheet ↗ |
Shipping & availability
When can X20AO4622 be shipped?
X20AO4622 is in stock and typically ships within 1 business day via UPS, DHL or FedEx, worldwide.
Can I pick up X20AO4622 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — alongside standard UPS, DHL and FedEx shipping, express (next-day) delivery is available at checkout for in-stock items like X20AO4622.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for X20AO4622, subject to availability and destination.
• 4 analog outputs
• Either current or voltage signal possible
• 13-bit digital converter resolution
X20 analog output module, 4 outputs, 10 V or 0 to 20 mA / 4 to 20 mA, 13-bit converter resolution
Accessories
Required accessories (order separately)
| X20BM15 | Bus modules — The bus module is the base for all X20 24 VDC I/O modules; The internal I/O supply is interconnected; Manual node number assignment; Indepe… |
| X20BM11 | Bus modules — Bus module for 24 VDC I/O modules; The internal I/O power supply is connected through. The bus module is the base for all 24 VDC I/O module… |
| X20TB12 | Terminal blocks — Tool-free wiring with push-in technology; Simple wire release using lever; Ability to label each terminal; Plain text labeling also possibl… |
Specifications
Short description
| I/O module | 4 analog outputs ±10 V or 0 to 20 mA / 4 to 20 mA " data-placement="top" data-html="true" data-container="body" data-content="4 to 20 mA: Starting with upgrade version 1.0.2.0 and hardware revision "I0""> |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Channel type | Yes, using software |
| Power consumption – Bus | 0.01 W |
| Power consumption – Internal I/O | 1.8 W (Rev. ≥J0), 2.2 W (Rev. <J0) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – ATEX | Zone 2, II 3G Ex nA nC IIA T5 Gc; IP20, Ta (see X20 user's manual); FTZÚ 09 ATEX 0083X |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – HazLoc | cCSAus 244665; Process control equipment; for hazardous locations; Class I, Division 2, Groups ABCD, T5 |
| Certifications – DNV | Temperature: B (0 to 55°C); Humidity: B (up to 100%); Vibration: B (4 g); EMC: B (bridge and open deck) |
| Certifications – CCS | Yes |
| Certifications – LR | ENV1 |
| Certifications – KR | Yes |
| Certifications – ABS | Yes |
| Certifications – BV | EC33B ; Temperature: 5 - 55°C; Vibration: 4 g; EMC: Bridge and open deck |
| Certifications – KC | Yes |
| B&R ID code | 0x1BA3 |
| Status indicators | I/O function per channel, operating state, module status |
| Additional power dissipation caused by actuators (resistive) [W] | - |
Analog outputs
| Digital converter resolution – Voltage | ±12-bit |
| Digital converter resolution – Current | 12-bit |
| Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Gain | ±0.08% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value."> |
| Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Offset | ±0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> |
| Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Gain | ±0.09% " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value."> |
| Max. error " data-placement="top" data-html="true" data-container="body" data-content="At 25°C"> – Offset | ±0.05% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> |
| Output format – Voltage | INT 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV |
| Output format – Current | INT 0x0000 - 0x7FFF / 1 LSB = 0x0008 = 4.883 µA |
| Load per channel – Voltage | Max. ±10 mA, load ≥1 kΩ |
| Load per channel – Current | Load max. 600 Ω (Rev. ≥ J0), 500 Ω (Rev. < J0) |
| Max. gain drift – Voltage | ±0.015%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value."> |
| Max. gain drift – Current | ±0.02%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the current output value."> |
| Max. offset drift – Voltage | ±0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> |
| Max. offset drift – Current | ±0.032%/°C " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> |
| Error caused by load change – Voltage | Max. 0.11%, from 10 MΩ → 1 kΩ, resistive |
| Error caused by load change – Current | Max. 0.5%, from 1 Ω → 600 Ω, resistive |
| Output | ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminals " data-placement="top" data-html="true" data-container="body" data-content="4 to 20 mA: Starting with upgrade version 1.0.2.0 and hardware revision "I0""> |
| Max. output current | 10 mA at voltage >5 V; 15 mA at voltage <5 V |
| Conversion time | 300 µs for all outputs |
| Settling time on output change over entire range | 500 µs |
| Switch on/off behavior | Internal enable relay for startup |
| Output protection | Short-circuit proof |
| Short-circuit proof | Current limiting ±40 mA |
| Output filter | First-order low-pass filter / cutoff frequency 10 kHz |
| Nonlinearity | <0.007% " data-placement="top" data-html="true" data-container="body" data-content="Based on the entire output range."> |
| Insulation voltage between channel and bus | 500 V eff |
Electrical properties
| Electrical isolation | Channel isolated from bus; Channel not isolated from channel |
Operating conditions
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction of ambient temperature by 0.5°C per 100 m |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Horizontal mounting orientation | -25 to 60°C (Rev. ≥ J0), 0 to 55°C (Rev. < J0) |
| Temperature – Vertical mounting orientation | -25 to 50°C (Rev. ≥ J0), 0 to 50°C (Rev. < J0) |
| Temperature – Derating | See section "Derating". |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Note | Order 1x terminal block X20TB12 separately.; Order 1x bus module X20BM11 separately. |
| Pitch | 12.5 +0.2 mm |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
| Data sheet X20(c)AO4622 | PDF · 754 KB · 3.28 (09/15/2025) - EN |
| X20 Package leaflet ATEX/CSA | PDF · 2 MB · 1.4 (09/17/2024) |
| X20 System User´s Manual | PDF · 50 MB · 4.40 (03/10/2026) - EN |
CAD & dimension drawings
| 3D File DXF/STEP X20 Electronic module | ZIP · 10 KB · 1.0 (10/17/2005) |
| 3D File STEP X20 I/O-Slice | ZIP · 872 KB · 1.1 (03/13/2019) |
| Dimensions PDF X20 Electronic module | PDF · 3 KB · 1.0 (10/17/2005) |
