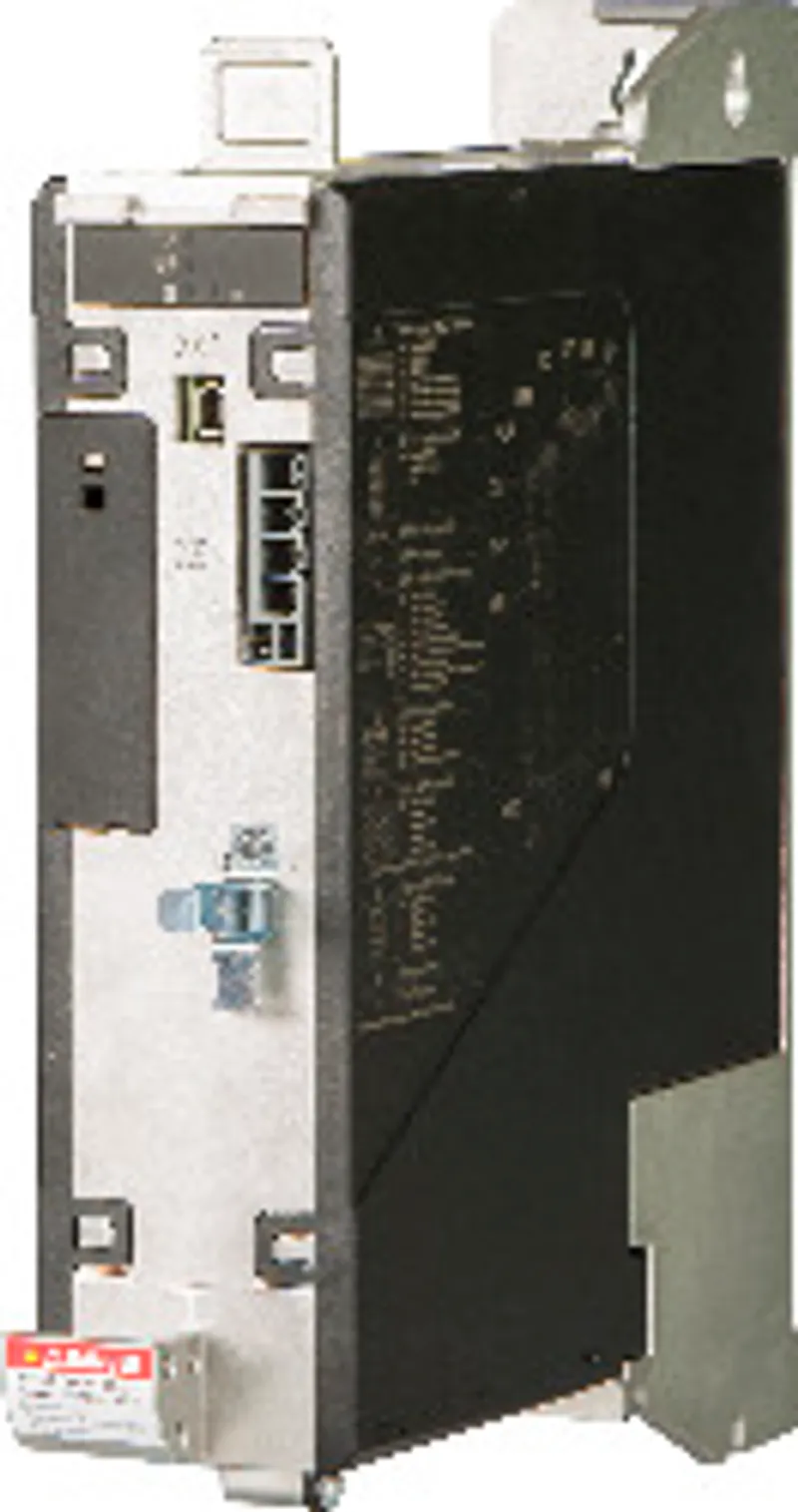

B&R 8EI8X8HWS11.0700-1

Name: B&R 8EI8X8HWS11.0700-1
Brand: B&R
SKU: 8EI8X8HWS11.0700-1

제조사 부품번호: 8EI8X8HWS11.0700-1 · 브랜드: B&R

가격 문의

견적 요청

12개월 보증(신품) · 3개월(중고/재제조)

30일 반품, 미사용 부품은 재입고 수수료 없음

배송 방식

요약 정보

재고 상태	요청 시 확인
카테고리	Wall mounting
라이프사이클	active
보증	12개월(신품) · 3개월(중고/재제조)
무게	3.2 kg

배송 & 재고

8EI8X8HWS11.0700-1은(는) 언제 배송될 수 있나요?

8EI8X8HWS11.0700-1은(는) 요청 시 소싱됩니다 — 견적을 요청해 주시면 이 특정 제품의 정확한 재고 및 배송 일정을 확인해 드립니다.

8EI8X8HWS11.0700-1을(를) 직접 픽업할 수 있나요?

네덜란드 흐로닝언 창고에서 직접 픽업이 가능할 수 있습니다 — 주문 전에 연락하셔서 재고와 픽업 시간을 확인해 주세요.

특급 배송이 가능한가요?

네 — 8EI8X8HWS11.0700-1에 대한 견적을 요청하실 때 말씀해 주시면 답변에 특급 배송 옵션을 포함해 드립니다.

공장 가동이 중단되어 긴급히 필요합니다 — 도와주실 수 있나요?

긴급 고장 상황이시라면 +31 (0)50-7110348 또는 sales@partnerplc.com으로 직접 연락해 주세요 — 재고 및 배송지에 따라 8EI8X8HWS11.0700-1에 대한 당일 택배 또는 전용 긴급 배송을 검토해 드립니다.

ACOPOS P3 servo drive, 1 digital multi-standard encoder interface per axis, 3x 200-480 VAC, 8.8 A, 1 axis, dual use, wall mounting, two-row connector set, cover, integrated braking resistor

사양

Specifications

Dynamic node allocation (DNA)	Yes
Slots for plug-in modules	1
Network configurations	TN-S, TN-C-S with grounded neutral
Mains input voltage	3x 200 VAC to 480 VAC ±10%
Frequency	50 / 60 Hz ±4%
Installed load	Max. 10 kVA
Inrush current	Max. 45 A
Switch-on interval	Typ. 60 s
Integrated line filter per EN 61800-3, category C3	No
Power dissipation at device nominal power without braking resistor	[(40 + 6.9 * PAVG [kW] + 7.5 * IAX1 [A] + 0.25 * IBR12 [A] + PVSLOT) * 1.1] [W]
DC bus capacitance	470 µF
Input voltage	24 VDC ±25%
Input capacitance	In preparation
Current consumption	0.9 A + Current for motor holding brake
Quantity	1
Continuous power per motor connection	4 kW
Continuous current per motor connection	8.8 Aeff
Switching frequency 5 kHz	25 m
Switching frequency 10 kHz	In preparation
Switching frequency 20 kHz	In preparation
Starting at 500 m above sea level	0.88 Aeff per 1000 m
Peak current per motor connection	24 Aeff
Peak power output	10 kW
Nominal switching frequency	5 kHz
Possible switching frequencies	5 / 10 / 20 kHz
Insulation stress of the connected motor per IEC TS 60034-25:2004	Limit value curve A
Overload protection	Yes
Short-circuit and ground fault protection	Yes
Max. output frequency	---
U, V, W, PE	Connector
Shield connection	Yes
With wire end sleeve	1.5 to 6 mm²
UL/C-UL-US	24 to 8 AWG
CSA	24 to 8 AWG
Output voltage	Typ. 11.4 V
Continuous current per connection	1.3 A
Max. internal resistance	0.25 Ω
Extinction potential	Approx. 30 V
Max. extinction energy per switching operation	1.5 Ws
Max. switching frequency	0.5 Hz
Overload and short-circuit protection	Yes
Open-circuit monitoring	Yes
Undervoltage monitoring	Yes
Response threshold for open-circuit monitoring	Approx. 30 mA
Peak power int./ext.	7 kW / 25 kW
Continuous power int./ext.	100 W / 2 kW
Minimum braking resistance (ext.)	25 Ω
Circuit	Sink
Input - ACOPOS P3	Yes
Input - Input	Yes
Nominal	5 to 40°C
Maximum	55°C
Input current at nominal voltage	Approx. 4 mA
Low	<5 V
High	>15 V
Enable 1 → 0, PWM off	2 ms
Enable 0 → 1, ready for PWM	0.3 ms
Modulation compared to ground potential	Max. ±38 V
OSSD signal connections	0.5 ms
Type	EnDat 2.2
Connections	8-pin female Mini I/O connector
Status indicators	None
Encoder - ACOPOS P3	No
Encoder monitoring	No
Max. encoder cable length	100 m Depends on the cross section of the power supply wires in the encoder cable
Load capacity	300 mA
Short-circuit proof	Yes
Overload-proof	Yes
Signal transmission	RS485
Data transfer rate	6.25 Mbit/s
Max. power consumption per encoder interface	In preparation
Rising edge	<2 µs
Falling edge	<1 µs
Resistance range	500 Ω to 5 kΩ
Hanging vertically	Yes
Standing horizontally	In preparation
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Overvoltage category per EN 61800-5-1	III
Degree of protection per EN 60529	IP20
Storage	5 to 95%
Transport	95% at 40°C
Operation	5 to 85%, non-condensing
Width	66 mm
Height	290 mm
Wall mounting	258.5 mm (with 8EXA front cover: 261 mm)
Weight	3.2 kg
