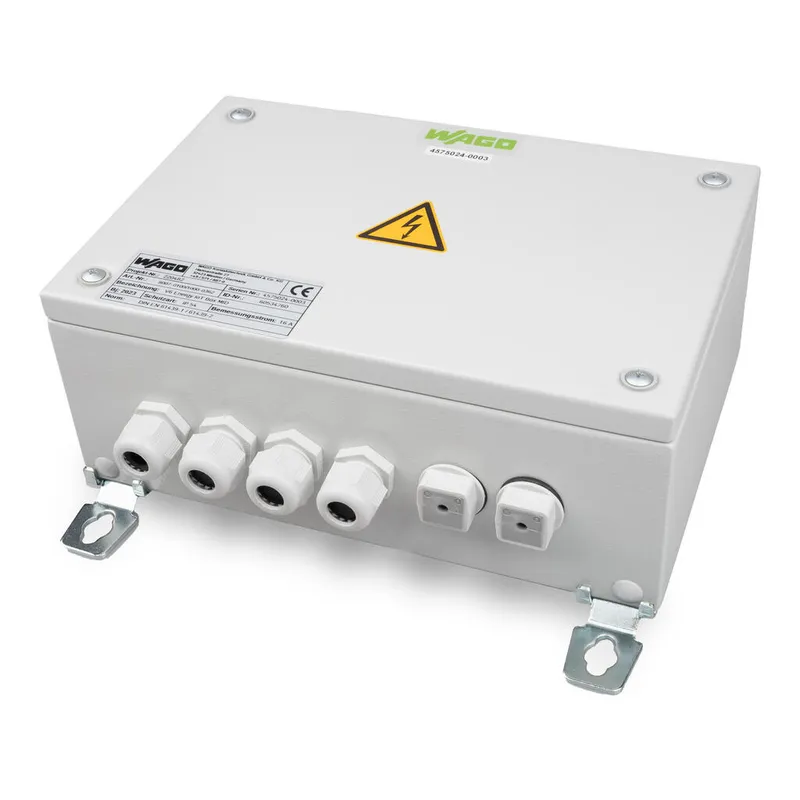

IoT Box; Energy

<p>The IoT Box Energy and the IoT Box Energy (MID) are aimed at energy and facility managers of new or existing industrial and building systems. The new Energy products make energy monitoring, data analysis, identification of optimization potentials and predictive maintenance very user-friendly. The core function of the Energy (MID) Boxes is recording energy data using an energy measurement device (3-phase measurement module or MID meter), as well as other measured values via CC100 and transmitting the data to higher-level management systems. Thanks to the MID approval, the IoT Box Energy (MID) can also support consumption billing.</p><p> </p><p>Your Benefits</p><ul><li>Quick start to digitalization</li><li>Quick and flexible project implementation via pre-wired and open automation system</li><li>Compact design replaces individual components to save space</li></ul><br/><p> </p><p>The IoT Box includes:</p><p> </p><ul><li><b>Compact Controller 100;</b> 8DI 4DO 2AI 2AO 2NI1K/PT1K 1RS485; 2 x ETHERNET; SD: <b>751-9301</b></li><li><b>3-Phase Power Measurement Module</b>; 3x277/480 V/RC; Modbus RTU: <b>2857-570/024-000</b></li><li><b>Power Supply; Compact; 1-phase</b>; 24 VDC 1.25 A 1ph: <b>787-2850</b></li><li><b>3-Conductor Through Terminal Block</b>; with lever and push-button; 2.5 mm²; gray: <b>2102-5301</b></li><li><b>3-Conductor Through Terminal Block</b>; with lever and push-button; 2.5 mm²; blue: <b>2102-5304</b></li><li><b>3-Conductor Ground Terminal Block</b>; with lever and push-button; 2.5 mm²; green-yellow: <b>2102-5307</b></li><li><b>4-Conductor Ground Terminal Block</b>; with push-button; 2.5 mm²; green-yellow: <b>2202-1407</b></li><li>Set of wall-mount lugs</li><li>Cable Grips M20; M25</li><li>Connectors (Plug and Socket) for Power Supply</li></ul>

Spezifikationen
