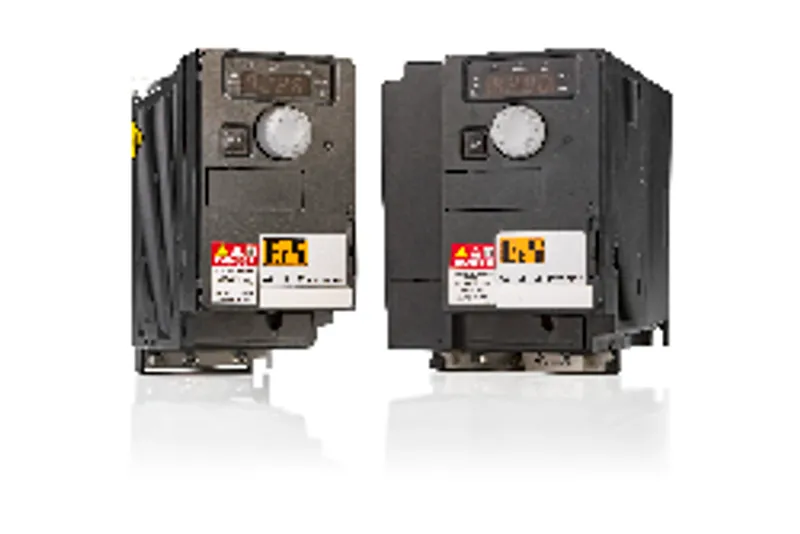

Base device for ACOPOSinverter P66, 3x 525 to 600 V, 11 kW, integrated brake chopperOrder number8I66T601100.0P-000: Inverter with POWERLINK communication card8I66T601100.0X-000: Inverter with X2X Link communication card8I66T601100.0C-000: Inverter with integrated CANopen interface

Spezifikationen

Specifications

CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
UL	cULus E225616 Power conversion equipment
Specified on nameplate	11 kW (15 HP)
Mains input voltage	3x 525 VAC -15% to 600 VAC +10%
Frequency	50 to 60 Hz ±5%
Apparent power (at 600 VAC)	14.5 kVA
Max. assumed short-circuit current (Isc) (short-circuit current at connection point)	22 kA
Inrush current	Max. 44 A
At 525 VAC	15.7 A
At 600 VAC	14 A
Power dissipation at nominal load and nominal clock frequency	197 W
Integrated EMC filter	No
Nominal output current	17 A
At nominal clock frequency (4 kHz)	No derating (up to 50°C)
Other clock frequencies	The derating curves are included in the installation instructions, which can be downloaded from the website (www.br-automation.com).
Starting at 1000 m above sea level	1%, per 100 m
Max. transient current for 60 s	25.5 A
Output frequency range	0.1 to 599 Hz
Nominal clock frequency	4 kHz
Min.	2 kHz
Max.	16 kHz
With braking resistor	Up to 170% of the rated motor torque
Shielded cable	50 m
Non-shielded cable	100 m
Induction motor	Sensorless vector control: 1. Voltage controlled with constant torque → standard mode 2. Voltage controlled with variable torque → energy saving mode e.g. for fans and pumps Sensorless slip control: 1. With V/f characteristic curve for constant torque → standard mode 2. With V/f characteristic curve for constant torque (up to 6 f-ranges) → Custom mode for special applications 3. With V/f characteristic curve for quadratically increasing torque → Energy-saving mode, e.g. for fans and pumps
Synchronous motor	Sensorless vector control: 1. Voltage controlled with constant torque → standard mode
Main protective functions of inverter	Thermal protection against power stage overheating Protection against short circuits between motor phases, overcurrent between output phases and ground, overvoltages on the DC bus, exceeding the speed limit. Safety function for: Overvoltage and undervoltage of the mains supply, mains phase failure with 3-phase power supply
Integrated dynamic brake transistors	Yes
Min. resistance value (external)	24 Ω
Input voltage	24 VDC (-15%/+20%)
Current	800 Ω
Output voltage 24 VDC	24 VDC (-15%/+20%)
Max. output current at 24 VDC	100 mA
Output voltage 10 VDC	10 VDC (-0%/+10%)
Max. output current at 10 VDC	10 mA
Type	Type 3
Quantity	1
Nominal voltage	30 VDC / 250 VAC
Input circuit	Source or sink
Switching threshold	Sink: >19 V (position 0), <13 V (position 1) Source: <5 V (position 0), >11 V (position 1)
Input - ACOPOSinverter	Yes
Input - Input	No
Sampling time	2 ms
Max. input frequency	20 kHz
Input impedance	1.5 kΩ
Current consumption	16 mA
Nonlinearity	±0.3%
Basic accuracy	At 25°C: ±1% At -10 to 60°C: ±2%
Voltage	470 Ω
Resolution	10-bit
Max. voltage	30 VDC
Output circuit	Source or sink
Max. current	100 mA
Switching current range	Min. switching current: 5 mA at 24 VDC Max. switching current: R1 at cos φ = 1: 3 A at 250 VAC / 4 A at 30 VDC R2 at cos φ = 1: 5 A R1 and R2 at cos φ = 0.4: 2 A
Relay 1	1 changeover contact
Relay 2	1 normally open contact
Output - ACOPOSinverter	Yes
Output - Output	No
Response time (max.)	2 ms
Output	0 to 10 V or 0 to 20 mA
Update time	2 ms
Power dissipation relative to continuous apparent power	IE2 (10, 25): 0.5% (3x 525 VAC), 0.5% (3x 600 VAC) IE2 (50, 25): 0.5% (3x 525 VAC), 0.4% (3x 600 VAC) IE2 (10, 50): 0.7% (3x 525 VAC), 0.6% (3x 600 VAC) IE2 (50, 50): 0.7% (3x 525 VAC), 0.6% (3x 600 VAC) IE2 (90, 50): 0.8% (3x 525 VAC), 0.7% (3x 600 VAC) IE2 (10, 100): 1.2% (3x 525 VAC), 1.1% (3x 600 VAC) IE2 (50, 100): 1.2% (3x 525 VAC), 1.1% (3x 600 VAC) IE2 (90, 100): 1.6% (3x 525 VAC), 1.4% (3x 600 VAC)
Nominal losses in standby mode	11 W (3x 525 VAC), 13 W (3x 600 VAC)
Degree of protection per EN 61800-5-1	IP20
Relative humidity per IEC 60068-2-3	5 to 95%, non-condensing No dripping water
Maximum installation elevation	≤1000 m without derating 1000 to 2000 m with Derating
Max. pollution degree per IEC/EN 61800-5-1	2 (non-conductive pollution)
Ambient conditions per IEC 60721-3-3	Class 3C3 and 3S2
Operating position	Vertical mounting orientation ±10°
Operation	-10 to 50°C without derating 50 to 60°C with derating
Storage	-25 to 70°C
Max. vibration resistance	1 gn 13 to 200 Hz EN/IEC 60068-2-6 1.5 mm peak to peak 2 to 13 Hz EN/IEC 60068-2-6
Width	180 mm
Height	404 mm
Height without shield plate	330 mm
Depth	198 mm
Weight	6.5 kg
