Home / I/O systems / X20 System / Counter functions

Counter functions Parts

Showing 1–17 of 17 parts
B&R X20CM1941 – I/O module, 1 resolver input, 1 ABR outputAvailable on requestB&R X20CM1941 – I/O module, 1 resolver input, 1 ABR output
MPN: X20CM1941 · B&R
Price on request
Request a quote
B&R X20DC1073 – I/O module, 1x SinCos inputAvailable on requestB&R X20DC1073 – I/O module, 1x SinCos input
MPN: X20DC1073 · B&R
Price on request
Request a quote
B&R X20DC1176 – I/O module, 1 ABR incremental encoder 5 VAvailable on requestB&R X20DC1176 – I/O module, 1 ABR incremental encoder 5 V
MPN: X20DC1176 · B&R
Price on request
Request a quote
B&R X20DC1178 – I/O module, 1 SSI absolute encoder 5 VAvailable on requestB&R X20DC1178 – I/O module, 1 SSI absolute encoder 5 V
MPN: X20DC1178 · B&R
Price on request
Request a quote
B&R X20DC1196 – I/O module, 1 ABR incremental encoder 5 VAvailable on requestB&R X20DC1196 – I/O module, 1 ABR incremental encoder 5 V
MPN: X20DC1196 · B&R
Price on request
Request a quote
B&R X20DC1198 – I/O module, 1 SSI absolute encoder 5 VAvailable on requestB&R X20DC1198 – I/O module, 1 SSI absolute encoder 5 V
MPN: X20DC1198 · B&R
Price on request
Request a quote
B&R X20DC11A6 – I/O module, 1 ABR incremental encoder 5 VAvailable on requestB&R X20DC11A6 – I/O module, 1 ABR incremental encoder 5 V
MPN: X20DC11A6 · B&R
Price on request
Request a quote
B&R X20DC1376 – I/O module, 1 ABR incremental encoder 24 VAvailable on requestB&R X20DC1376 – I/O module, 1 ABR incremental encoder 24 V
MPN: X20DC1376 · B&R
Price on request
Request a quote
B&R X20DC1396 – I/O module, 1 ABR incremental encoder 24 VAvailable on requestB&R X20DC1396 – I/O module, 1 ABR incremental encoder 24 V
MPN: X20DC1396 · B&R
Price on request
Request a quote
B&R X20DC1398 – I/O module, 1 SSI absolute encoder 24 VAvailable on requestB&R X20DC1398 – I/O module, 1 SSI absolute encoder 24 V
MPN: X20DC1398 · B&R
Price on request
Request a quote
B&R X20DC1976 – I/O module, 1 ABR incremental encoder 5 VAvailable on requestB&R X20DC1976 – I/O module, 1 ABR incremental encoder 5 V
MPN: X20DC1976 · B&R
Price on request
Request a quote
B&R X20DC2190 – I/O module, ultrasonic path measurement moduleAvailable on requestB&R X20DC2190 – I/O module, ultrasonic path measurement module
MPN: X20DC2190 · B&R
Price on request
Request a quote

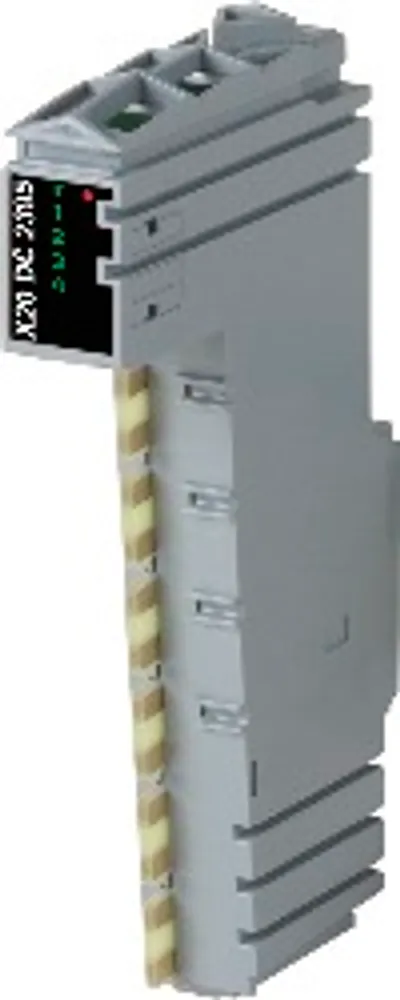

B&R X20DC2395 – I/O module, 1 SSI absolute encoders 24 VAvailable on requestB&R X20DC2395 – I/O module, 1 SSI absolute encoders 24 V
MPN: X20DC2395 · B&R
Price on request
Request a quote
B&R X20DC2396 – I/O module, 2 ABR incremental encoder 24 VAvailable on requestB&R X20DC2396 – I/O module, 2 ABR incremental encoder 24 V
MPN: X20DC2396 · B&R
Price on request
Request a quote
B&R X20DC2398 – I/O module, 2 SSI absolute encoder 24 VAvailable on requestB&R X20DC2398 – I/O module, 2 SSI absolute encoder 24 V
MPN: X20DC2398 · B&R
Price on request
Request a quote
B&R X20DC4395 – I/O module, 2 SSI absolute encoders 24 VAvailable on requestB&R X20DC4395 – I/O module, 2 SSI absolute encoders 24 V
MPN: X20DC4395 · B&R
Price on request
Request a quote
B&R X20DC137A – I/O module, 1 ABR incremental encoder 24 VAvailable on requestB&R X20DC137A – I/O module, 1 ABR incremental encoder 24 V
MPN: X20DC137A · B&R
Price on request
Request a quote

Compare Counter functions

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPNPower consumption – Internal I/OQuantityInput resistanceEncoder inputsCounter size
X20CM19411.5 W————
X20DC10731.3 W————
X20DC11761 W27.03 kΩ5 V, symmetrical16/32-bit
X20DC11781.1 W27.03 kΩ5 V, symmetricalUp to 32-bit depending on encoder
X20DC11961.5 W27.19 kΩ5 V, symmetrical16/32-bit
X20DC11981.5 W27.19 kΩ5 V, symmetrical32-bit
X20DC11A61 W27.03 kΩ5 V, symmetrical16/32-bit
X20DC13761.3 W27.03 kΩ24 V, asymmetrical16/32-bit
X20DC13961.4 W17.19 kΩ24 V, asymmetrical16/32-bit
X20DC13981.3 W17.19 kΩ24 V, asymmetrical32-bit
X20DC19761.2 W27.03 kΩ5 V, asymmetrical16/32-bit
X20DC21901.1 W2———
X20DC23951.4 W218.4 kΩ24 V, asymmetrical16/32-bit
X20DC23961.5 W27.19 kΩ24 V, asymmetrical16/32-bit
X20DC23981.4 W27.19 kΩ24 V, asymmetrical32-bit
X20DC43951.5 W418.4 kΩ24 V, asymmetrical16/32-bit
X20DC137A1.2 W27.03 kΩ24 V, symmetrical16/32-bit

Common to all listed parts

Diagnostics – Module run/errorYes, using LED status indicator and software
Power consumption – Bus0.01 W
Certifications – CEYes
Certifications – UKCAYes
Certifications – ULcULus E115267; Industrial control equipment
Additional power dissipation caused by actuators (resistive) [W]-
Mounting orientation – HorizontalYes
Mounting orientation – VerticalYes
