Digital outputs Parts
Available on requestB&R X20DO8232 – I/O module, 8 digital outputs 12 VDC for 1-wire connectionsMPN: X20DO8232 · B&R
Price on request
Request a quote
Available on requestB&R X20DO8322 – I/O module, 8 digital outputs 24 VDC for 1-wire connectionsMPN: X20DO8322 · B&R
Price on request
Request a quote
Available on requestB&R X20DO8331 – I/O module, 8 digital outputs 24 VDC for 1-wire connectionsMPN: X20DO8331 · B&R
Price on request
Request a quote
Available on requestB&R X20DO8332 – I/O module, 8 digital outputs 24 VDC for 1-wire connectionsMPN: X20DO8332 · B&R
Price on request
Request a quote

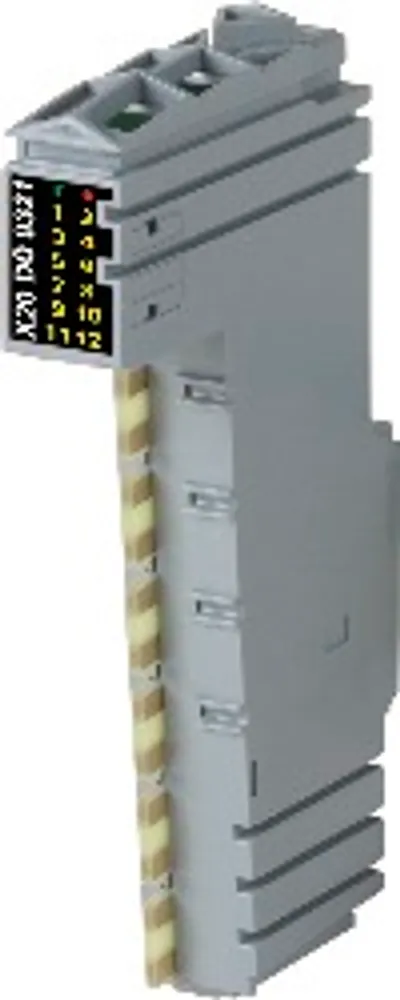

Available on requestB&R X20DO9321 – I/O module, 12 digital outputs 24 VDC for 1-wire connectionsMPN: X20DO9321 · B&R
Price on request
Request a quote
Available on requestB&R X20DO9322 – I/O module, 12 digital outputs 24 VDC for 1-wire connectionsMPN: X20DO9322 · B&R
Price on request
Request a quote

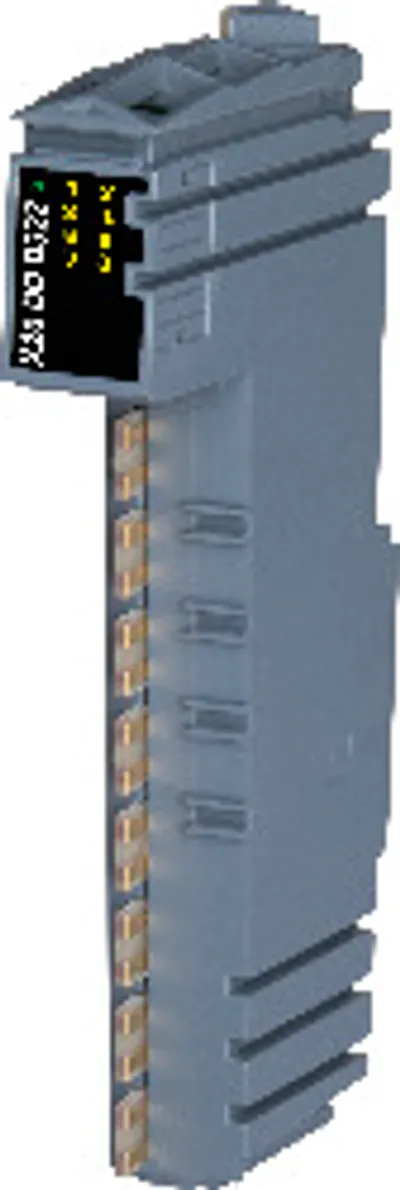

Available on requestB&R X20DOD322 – I/O module, 8 digital outputs 24 VDC for 1- or 2-wire…MPN: X20DOD322 · B&R
Price on request
Request a quote

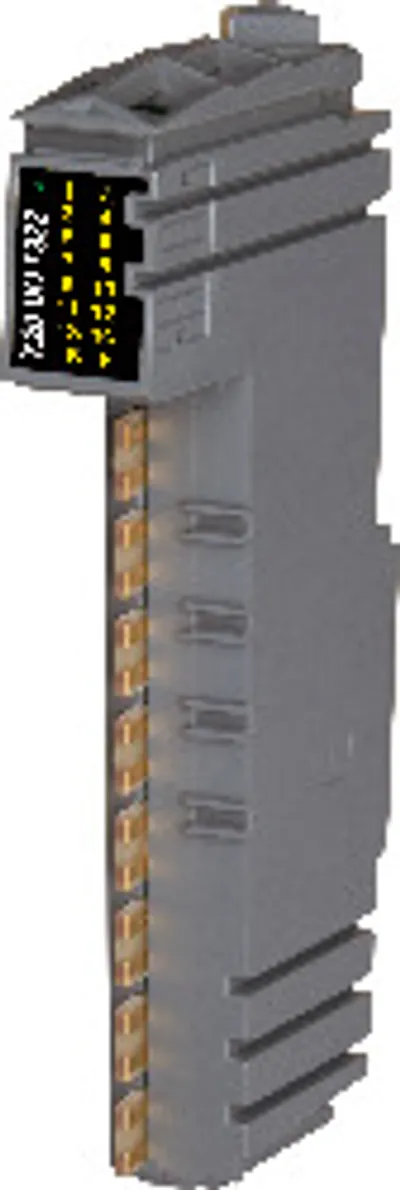

Available on requestB&R X20DOF322 – I/O module, 16 digital outputs 24 VDC for 1-wire connectionsMPN: X20DOF322 · B&R
Price on request
Request a quoteCompare Digital outputs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Power consumption – Bus | Power consumption – Internal I/O | Additional power dissipation caused by actuators (resistive) [W] " data-placement="top" data-html="true" data-container="body" data-content="Number of outputs x R<sub>DS(on)</sub> x Nominal output current<sup>2</sup>. For a calculation example, see section "Mechanical and electrical configuration" in the X20 system user's manual."> | R DS(on) | Peak short-circuit current |
|---|---|---|---|---|---|
| X20DO8232 | 0.22 W | - | +4.48 | 140 mΩ | <12 A |
| X20DO8322 | 0.26 W | 0.8 W | — | 210 mΩ | <12 A |
| X20DO8331 | 0.22 W | - | +0.56 | 35 mΩ | <24 A |
| X20DO8332 | 0.22 W | - | +2.24 | 140 mΩ | <12 A |
| X20DO9321 | 0.26 W | 0.99 W | +0.36 | 120 mΩ | <7 A |
| X20DO9322 | 0.26 W | 1.15 W | +0.63 | 210 mΩ | <12 A |
| X20DOD322 | 0.19 W | 0.8 W | +0.28 | 140 mΩ | <3 A |
| X20DOF322 | 0.28 W | 0.95 W | +0.56 | 140 mΩ | <3 A |
Common to all listed parts
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Outputs | Yes, using LED status indicator and software (output error status) |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – KC | Yes |
| Status indicators | I/O function per channel, operating state, module status |
| Switching frequency – Inductive load | See section "Switching inductive loads". |
