System modules for expandable bus controllers Parts

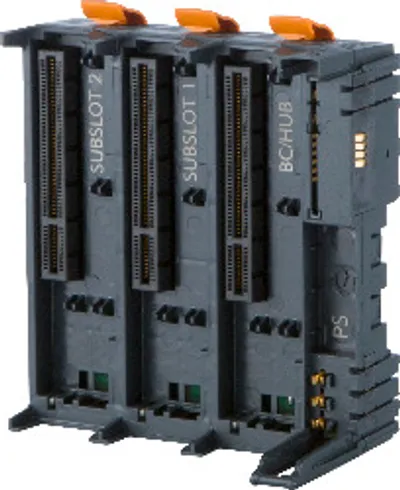

Available on requestB&R X20BB82 – Bus module, bus base with 2 expansion slotsMPN: X20BB82 · B&R
Price on request
Request a quote

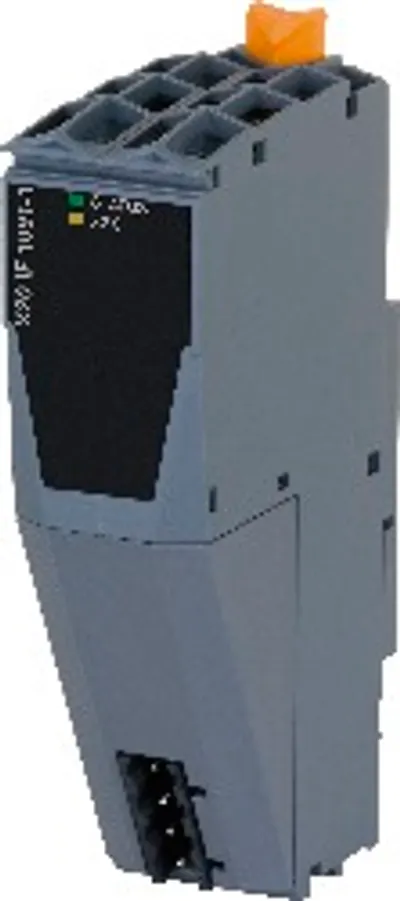

Available on requestB&R X20IF1091-1 – Communication module, 1x X2X Link masterMPN: X20IF1091-1 · B&R
Price on request
Request a quote

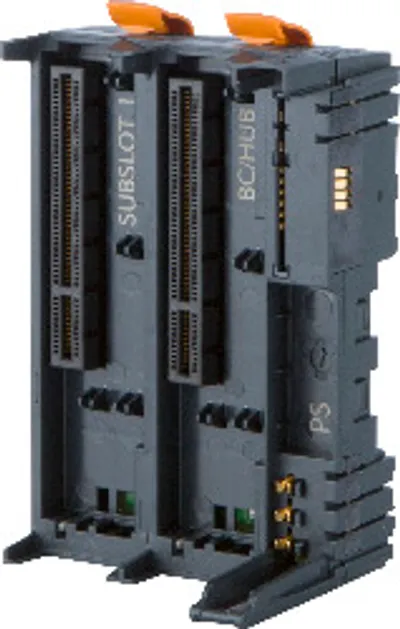

Available on requestB&R X20BB81 – Bus module, bus base with one expansion slotMPN: X20BB81 · B&R
Price on request
Request a quoteCompare System modules for expandable bus controllers
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bus module | Power consumption – Bus | Pitch |
|---|---|---|---|
| X20BB82 | Bus base with 2 expansion slots | 0.70 W | 87.5 +0.2 mm |
| X20IF1091-1 | — | — | — |
| X20BB81 | Bus base with one expansion slot | 0.50 W | 62.5 +0.2 mm |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| Certifications – KC | Yes |
| Additional power dissipation caused by actuators (resistive) [W] | - |
| Mounting orientation – Horizontal | Yes |
| Mounting orientation – Vertical | Yes |
