Terminal blocks Parts

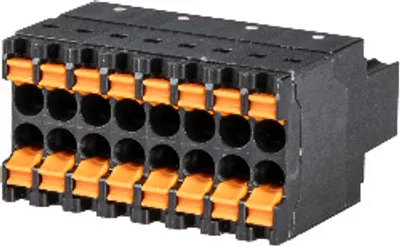

Available on requestB&R X20TBS1 – Tool-free wiring thanks to push-in technologyMPN: X20TBS1 · B&R
Price on request
Request a quote

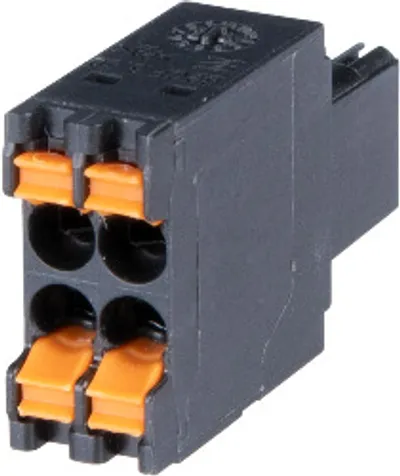

Available on requestB&R X20TBS2 – Tool-free wiring thanks to push-in technologyMPN: X20TBS2 · B&R
Price on request
Request a quote

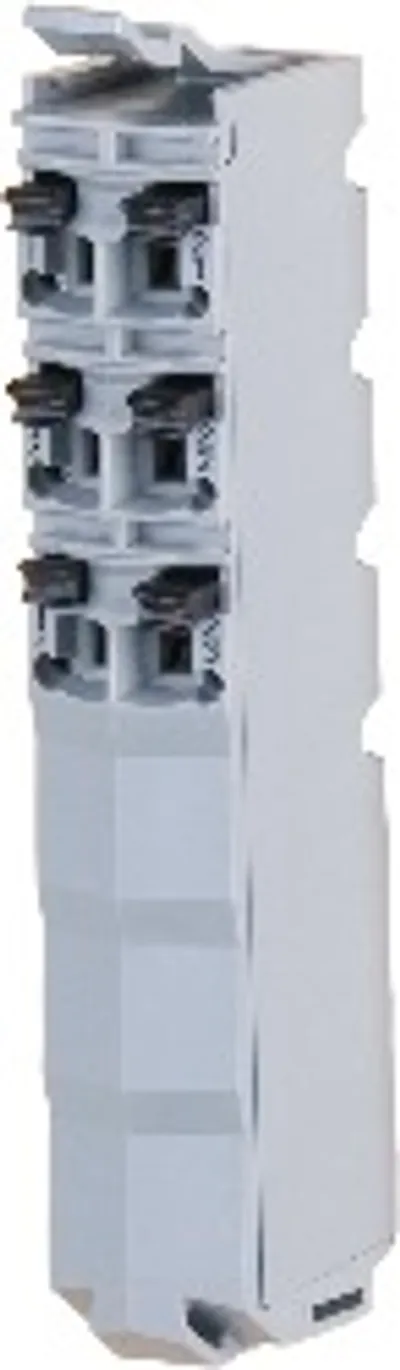

Available on requestB&R X20TB06 – Tool-free wiring with push-in technologyMPN: X20TB06 · B&R
Price on request
Request a quote

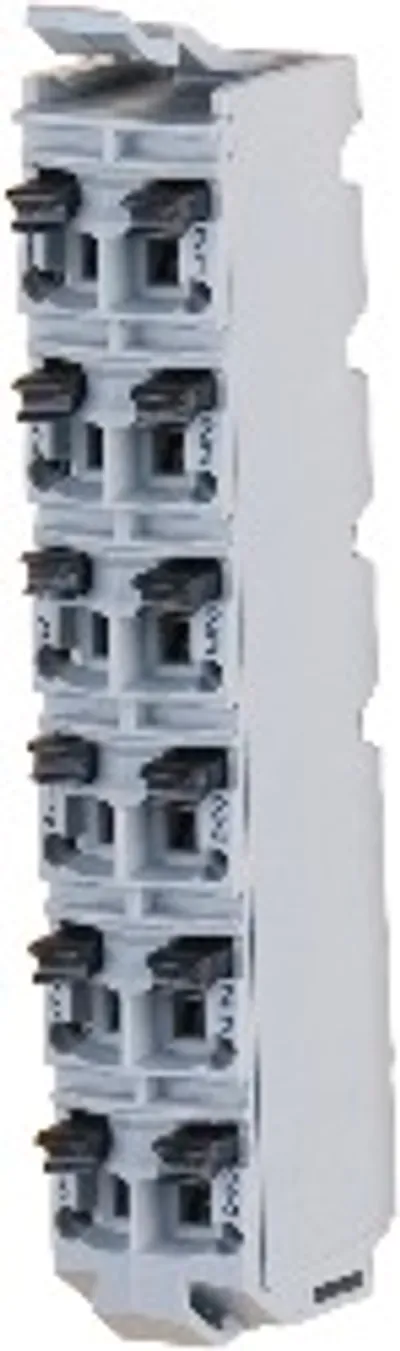

Available on requestB&R X20TB12 – Tool-free wiring with push-in technologyMPN: X20TB12 · B&R
Price on request
Request a quote

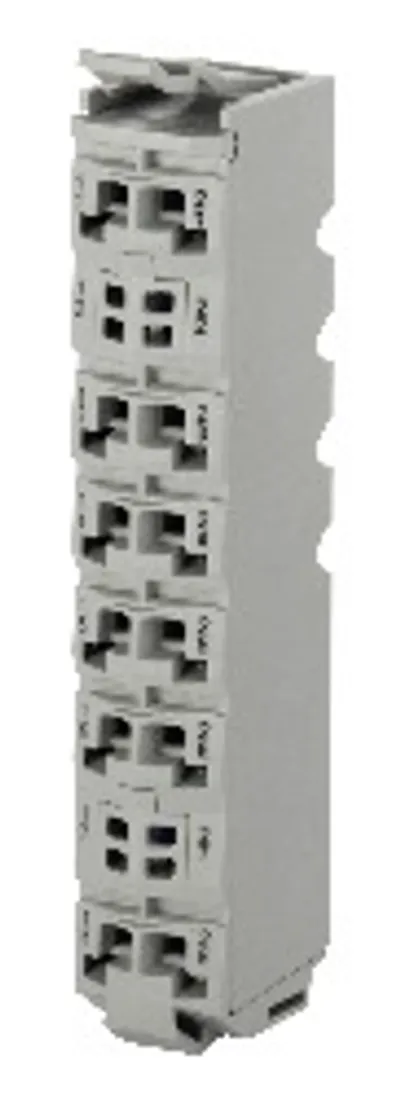

Available on requestB&R X20TB1E – Integrated terminal temperature compensationMPN: X20TB1E · B&R
Price on request
Request a quote

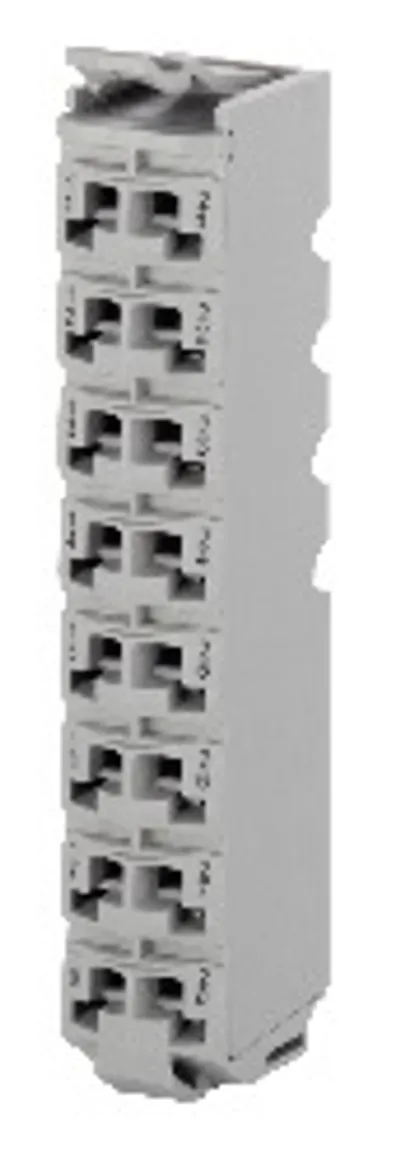

Available on requestB&R X20TB1F – Tool-free wiring with push-in technologyMPN: X20TB1F · B&R
Price on request
Request a quote

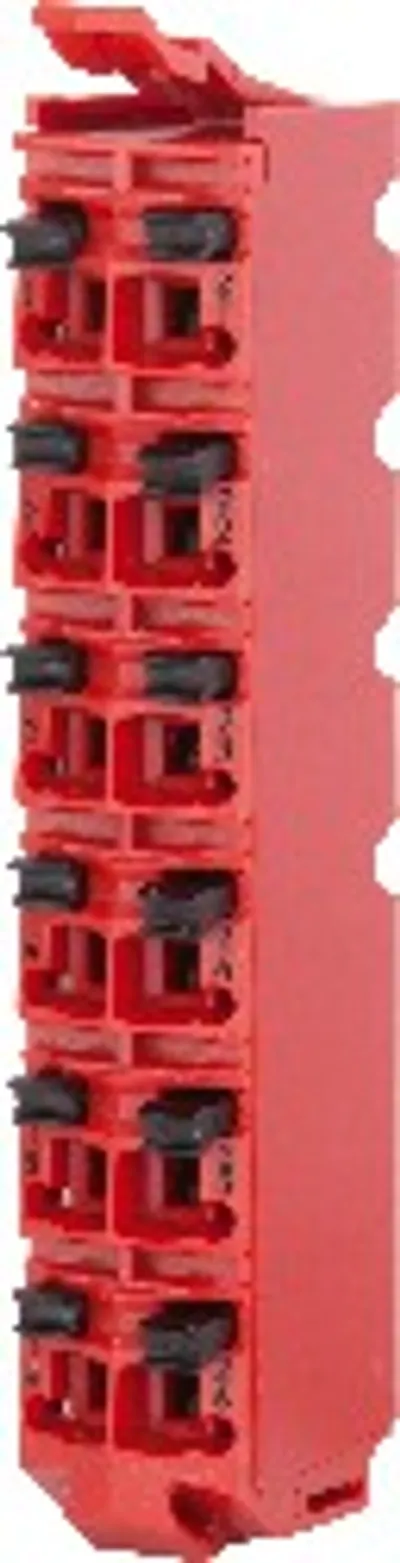

Available on requestB&R X20TB32 – Tool-free wiring with push-in technologyMPN: X20TB32 · B&R
Price on request
Request a quoteCompare Terminal blocks
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Number of pins | Push-in force per contact | Nominal voltage | Nominal current " data-placement="top" data-html="true" data-container="body" data-content="The respective limit data of the I/O modules must be taken into account!"> | Max. voltage |
|---|---|---|---|---|---|
| X20TBS1 | 16 | Max. 3.5 N | IEC: 320 V; UL: 300 V | IEC: 10 A / contact; UL: 9.5 A / contact | — |
| X20TBS2 | 4 | Max. 3.5 N | IEC: 320 V; UL: 300 V | IEC: 10 A / contact; UL: 9.5 A / contact | — |
| X20TB06 | 6 | Typ. 10 N | 240 VAC / 48 VDC | 10 A / contact | 300 VAC / 60 VDC |
| X20TB12 | 12 | Typ. 10 N | 240 VAC / 48 VDC | 10 A / contact | 300 VAC / 60 VDC |
| X20TB1E | 12 | Typ. 10 N | 24 VDC | 2 A / contact | 50 VDC |
| X20TB1F | 16 | Typ. 10 N | 24 VDC | 2 A / contact | 50 VDC |
| X20TB32 | 12 | Typ. 10 N | 240 VAC | 10 A / contact | 300 VAC |
Common to all listed parts
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Cable type | Only copper wires (no aluminum wires!) |
| Contact resistance | ≤5 mΩ |
