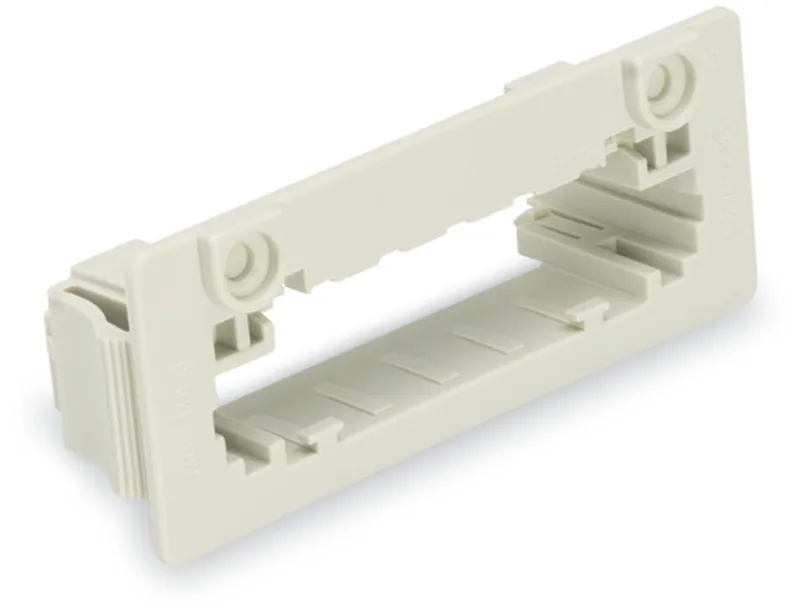

Snap-in frame; for male connectors; 1 part; Pin spacing 7.62 mm; 5-pole; light gray
Quick facts
| Availability | Confirmed on request |
| Category | Pluggable Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 831-305 be shipped?
831-305 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 831-305 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 831-305 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 831-305, subject to availability and destination.
<ul><li>Snap-in frames for through-panel MCS MAXI connectors</li><li>Fast and easy installation – without tools</li><li>Compatible with MCS MAXI male and female connectors</li><li>For panel thickness ranging from 0.5 to 2.5 mm</li><li>Optional screw mounting</li></ul>
Specifications
Connection data - Connection 1
| Pole number | 5 |
Physical data
| Width | 68.7 mm / 2.705 inches |
| Height | 28.1 mm / 1.106 inches |
| Depth | 23.3 mm / 0.917 inches |
Mechanical data
| Housing sheet thickness | 0.5 … 2.5 mm / 0.02 … 0.098 inches |
| Mounting type | Snap-in flange |
| Mounting type | Feed-through mounting |
Plug-in connection
| Mismating protection | Yes |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.218 MJ |
| Weight | 7.2 g |
Commercial data
| PU (SPU) | 12 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143564915 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121421 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
