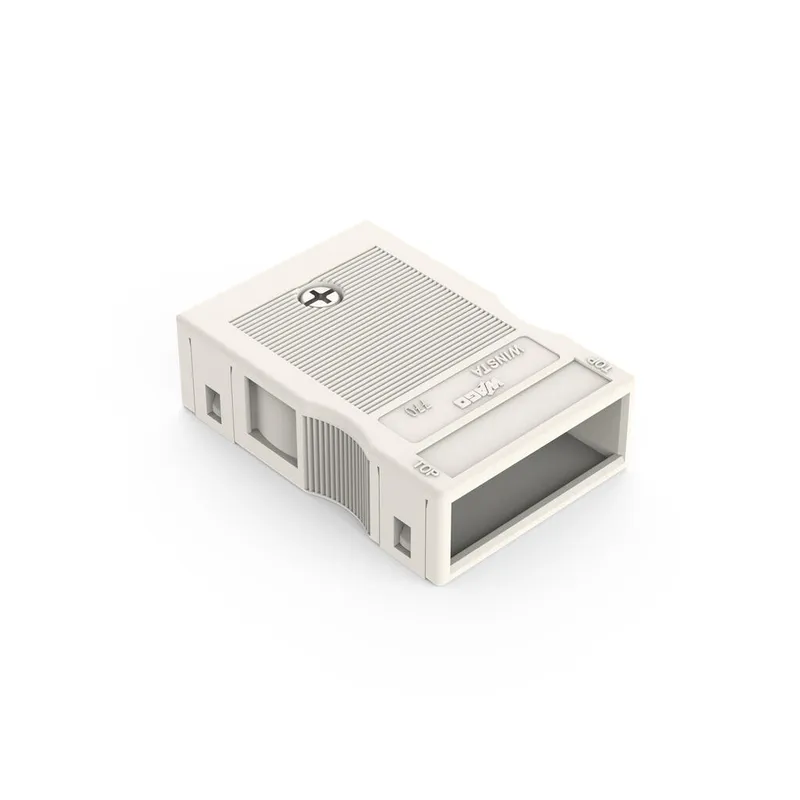

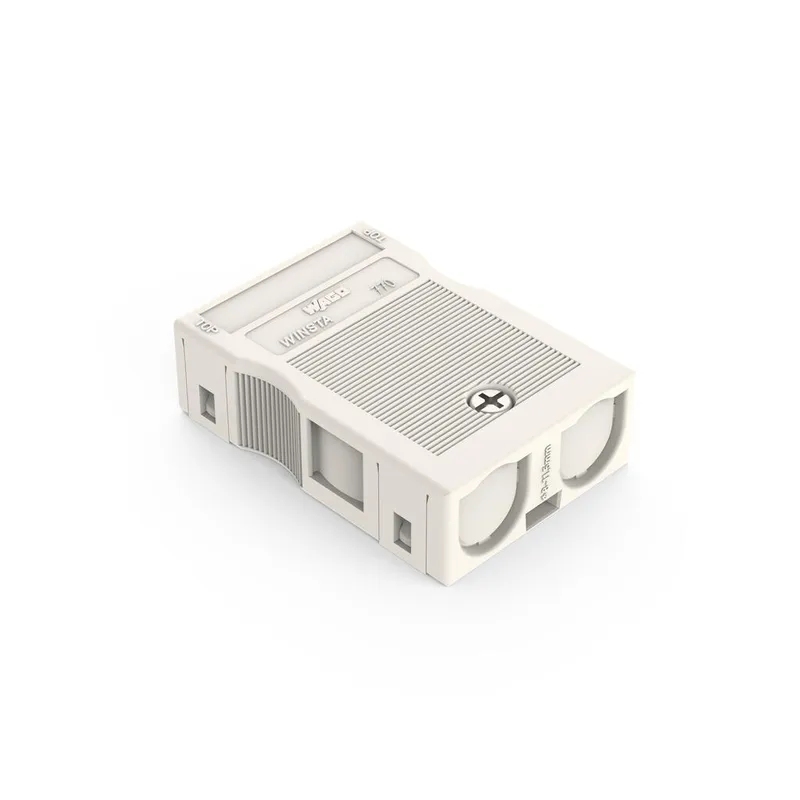

Strain relief housing; 3-pole; for 2 cables; 8.0 … 11.5 mm; 55 mm; white
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Pluggable Connectors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 770-513 be shipped?
770-513 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 770-513 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 770-513 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 770-513, subject to availability and destination.
<h2>Strain relief housing <i>WINSTA</i>® MIDI 3-pole</h2><br/><br/>The strain relief housing from the <i>WINSTA</i>® MIDI product line guarantees you the maximum flexibility in electrical installation. You can rely on the quality of WINSTA® components from WAGO for your electrical installation accessories too. Our <i>WINSTA</i>® MIDI product line offers flexibility for the installation of applications. Through its Push-in CAGE CLAMP® spring pressure connection technology, it guarantees time-saving, error-free installation and offers customization and flexibility for meeting an enormous variety of installation requirements. The strip length is 55 mm.<br/><br/><h3>Push-in CAGE CLAMP® spring pressure connection technology – pluggable installation instead of laborious screw connections!</h3><br/><br/>WINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It allows error-free installation of cables and components, quickly and reliably. Now you can also cut installation costs without compromising quality and safety: with protection against mismating reduces the need for servicing and prevents unnecessary downtime. <br/><br/><ul><br/><li>simple circuits</li><li>quick replacement of defective units during ongoing operation</li></ul>
Specifications
Connection data - Connection 1
| Pole number | 3 |
| Connectable sheathed cable diameter | 8 … 11.5 mm |
| Strip length (outer insulation) | 55 mm |
Physical data
| Pin spacing | 10 mm / 0.394 inches |
| Width | 34.6 mm / 1.362 inches |
| Height | 15 mm / 0.591 inches |
| Depth | 50 mm / 1.969 inches |
Mechanical data
| Screw tightening torque | 0.5 Nm |
Material data
| Note (material data) | Information on material specifications can be found here |
| Color | white |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.277 MJ |
| Weight | 9.6 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
| PU (SPU) | 50 pcs |
| Packaging type | box |
| Country of origin | PL |
| GTIN | 4017332753883 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121722 |
| eCl@ss 10.0 | 27-44-06-92 |
| eCl@ss 9.0 | 27-44-06-92 |
| ETIM 9.0 | EC002863 |
| ETIM 10.0 | EC002863 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
