M8 sensor/actuator box; 10-way; 3-pole; M16 connector
Quick facts
| Availability | Confirmed on request |
| Category | Sensor/Actuator Boxes |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 757-303 be shipped?
757-303 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 757-303 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 757-303 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 757-303, subject to availability and destination.
<ul><li>M8 sensor/actuator box, 10-way</li><li>3-pole (1 signal per contact)</li><li>M16 connector (14‑pole)</li><li>Green LED operating indicator</li><li>Yellow LED status indicator</li><li>incl. marking strips (WMB markers can also be used)</li><li>incl. M8 protective caps (2 pcs)</li></ul>
Specifications
Technical data
| Contact resistance (max.) | 0.01 Ω |
| Supply voltage | 10 … 30 VDC; Rated voltage: 32 V ~ rms |
| Current carrying capacity (signal connections) | 2 A |
| Current carrying capacity (supply connections) | 6 A |
| Rated value of electrical isolation | 500 V |
| Functionally separated potential groups | Kontakt/Kontakt |
| Insulation resistance | >109 Ω |
| Signal characteristics | PNP |
| Indicators | LED yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status |
Connection data

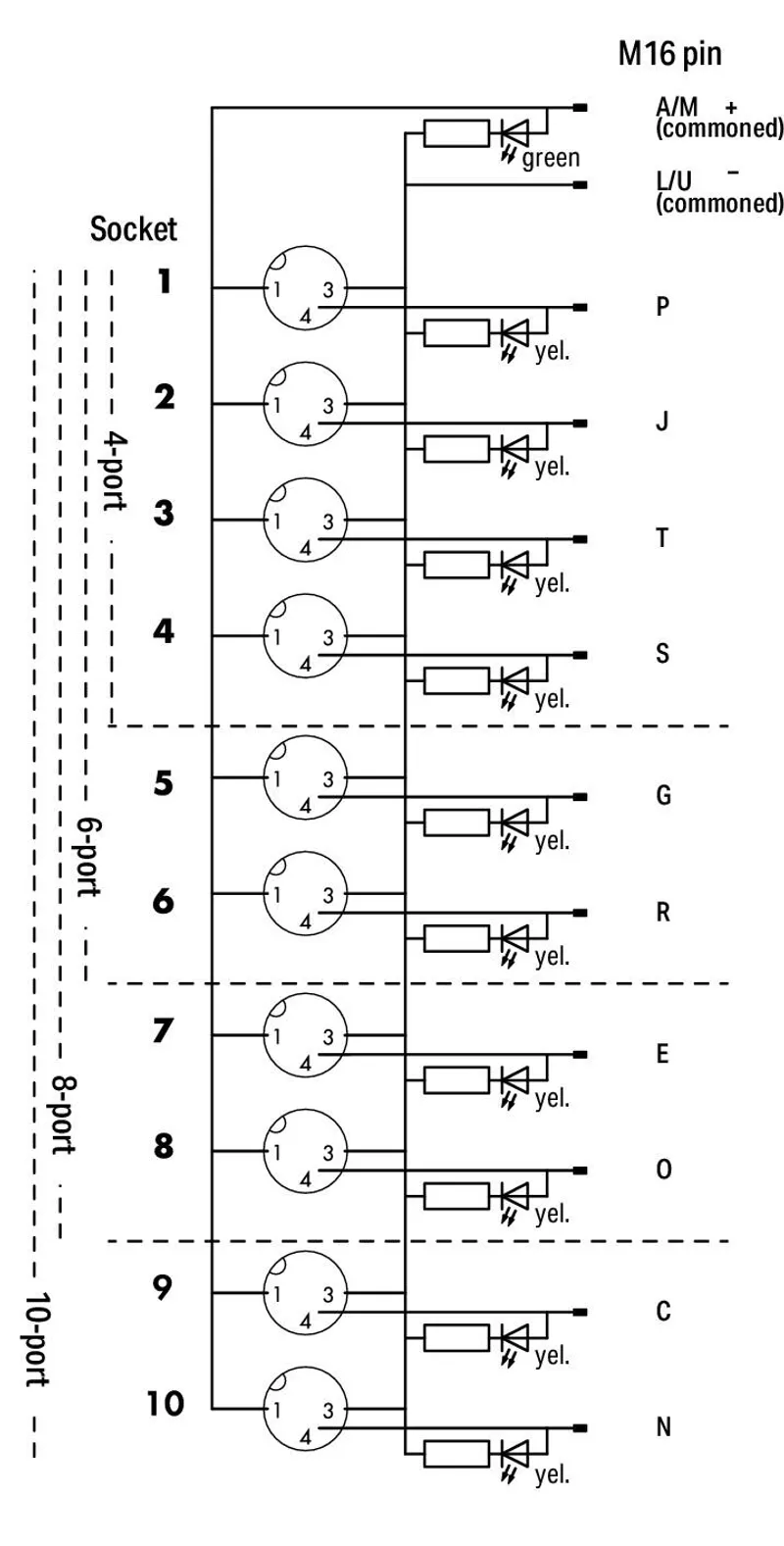

| Connection technology: I/O | 10 x M8 socket; 3-pole |
| Connection technology: trunk cable | 1 x M16 plug; 14-pole |
Physical data
| Width | 30 mm / 1.181 inches |
| Height | 26 mm / 1.024 inches |
| Depth | 175 mm / 6.89 inches |
Mechanical data
| Mounting type | Screw mounting |
| Weight | 160 g |
Material data
| Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
| Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
| Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) |
Environmental requirements
| Ambient temperature (operation) | -25 … +80 °C |
| Protection type | IP67 |
| Note on protection type | Per EN 60529 (NEMA 6 & 6P) in the fully locked position with its plugs or protective caps |
| Pollution degree | 3 per VDE 0110 |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
Commercial data
| Product Group | 23 (I/O passive and accessories) |
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4044918978705 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
| eCl@ss 10.0 | 27-44-01-11 |
| eCl@ss 9.0 | 27-44-01-08 |
| ETIM 9.0 | EC003558 |
| ETIM 10.0 | EC003558 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
