4-channel analog output; Voltage/Current
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | I/O Systems |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 750-564 be shipped?
750-564 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 750-564 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 750-564 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750-564, subject to availability and destination.
The analog output module provides a variety of standardized signals for voltage and current.<br/>The output signal can be parameterized channel by channel.<br/>The output signal is electrically isolated and transmitted with a resolution of 16 bits.<br/>Both the internal system and field side supply power the module.<br/>Wire break, overload and insufficient field supply, are diagnosed and displayed.<br/><br/>The module is protected against wrong wiring (feedback).<br/><br/>Voltage outputs can optionally be connected in 4-wire technology via the sense lines.<br/><br/>The module can be configured via GSD file, <b><i>e!</i></b><i>COCKPIT</i> and WAGO-I/O-<i>CHECK</i>.
Specifications
Technical data
| Number of analog outputs | 4 |
| Total number of channels (module) | 4 |
| Signal type | Voltage, Current |
| Signal type (current) | 0 … 10 mA; 2 … 10 mA; -10 … +10 mA; 0 … 20 mA; 4 … 20 mA; -20 … +20 mA; 0 … 22 mA; -22 … +22 mA; 0 … 12 mA; -12 … +12 mA |
| Signal type (voltage) | 0 … 5 V; 1 … 5 V; -5 … +5 V; 0 … 10 V; 2 … 10 V; -10 … +10 V; 0 … 12 V; -12 … +12 V |

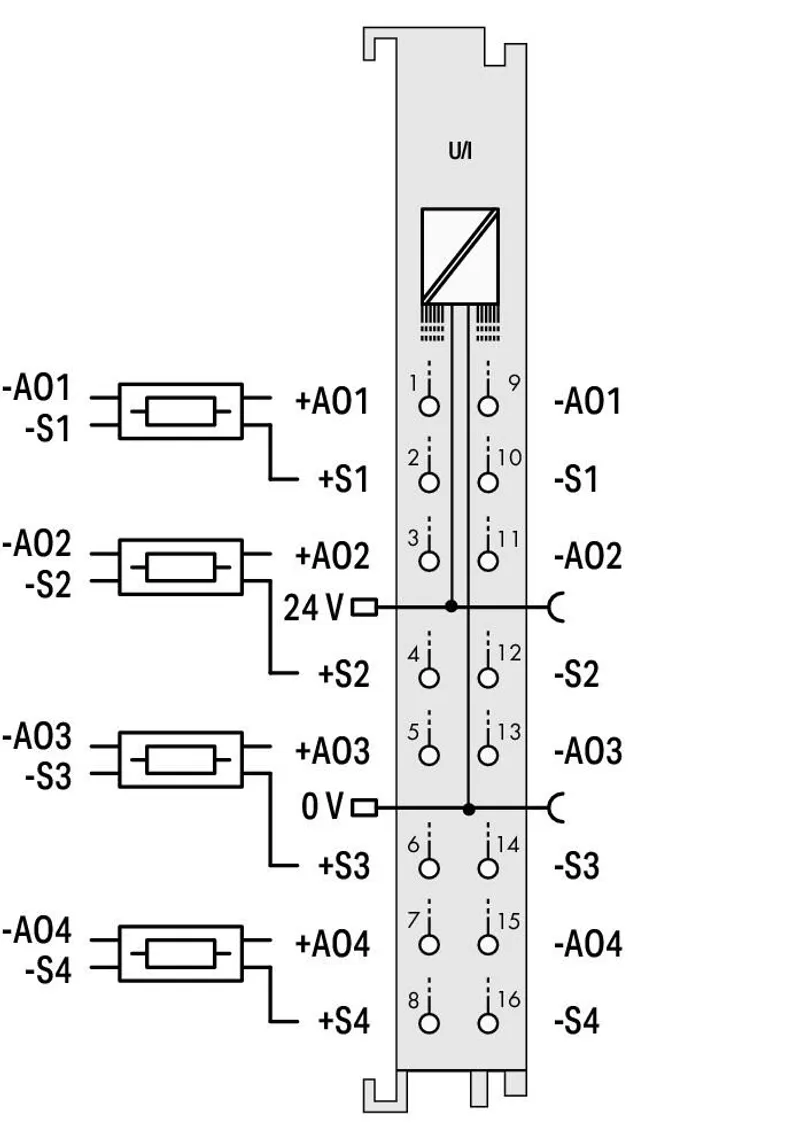

| Actuator connection | 4 x (2-wire); Voltage outputs can optionally be connected in 4-wire technology via the sense lines. |
| Resolution [bit] | 16 Bit |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Load impedance (voltage output) | ≥ 1 kΩ |
| Load impedance (current output) | ≤ 600 Ω |
| Conversion time (typ.) | 3 ms |
| Reference for measurement error | Voltage/Current |
| Output error, reference temperature | 25. °C |
| Output error, deviation (max.) of the upper-range value | 0.05 % |
| Temperature coefficient | U: ±25 ppm/K of the upper-range value; I: ±50 ppm/K of the upper-range value |
| Configuration options | WAGO-I/O-CHECK, CODESYS Library, e!COCKPIT |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 55 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |
| Indicators | LED (1-4) green: Status AO 1 … AO 4; LED (9-12) red: Error AO 1 … AO 4 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 16 x Push-in CAGE CLAMP® |
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 16 AWG |
| Fine-stranded conductor | 0.25 … 1.5 mm² / 22 … 16 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
| Height | 100 mm / 3.937 inches |
| Depth | 69 mm / 2.717 inches |
| Depth from upper-edge of DIN-rail | 61.8 mm / 2.433 inches |
Mechanical data
| Mounting type | DIN-35 rail |
| Pluggable connector | fixed |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.63 MJ |
| Weight | 51 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-3 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143933223 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
