Fail-safe 2 channel relay output; 250 V; 6 A

Name: Fail-safe 2 channel relay output; 250 V; 6 A
Brand: Wago
SKU: 750-1689

MPN: 750-1689 · Brand: Wago

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	I/O Systems
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 750-1689 be shipped?

750-1689 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 750-1689 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 750-1689 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 750-1689, subject to availability and destination.

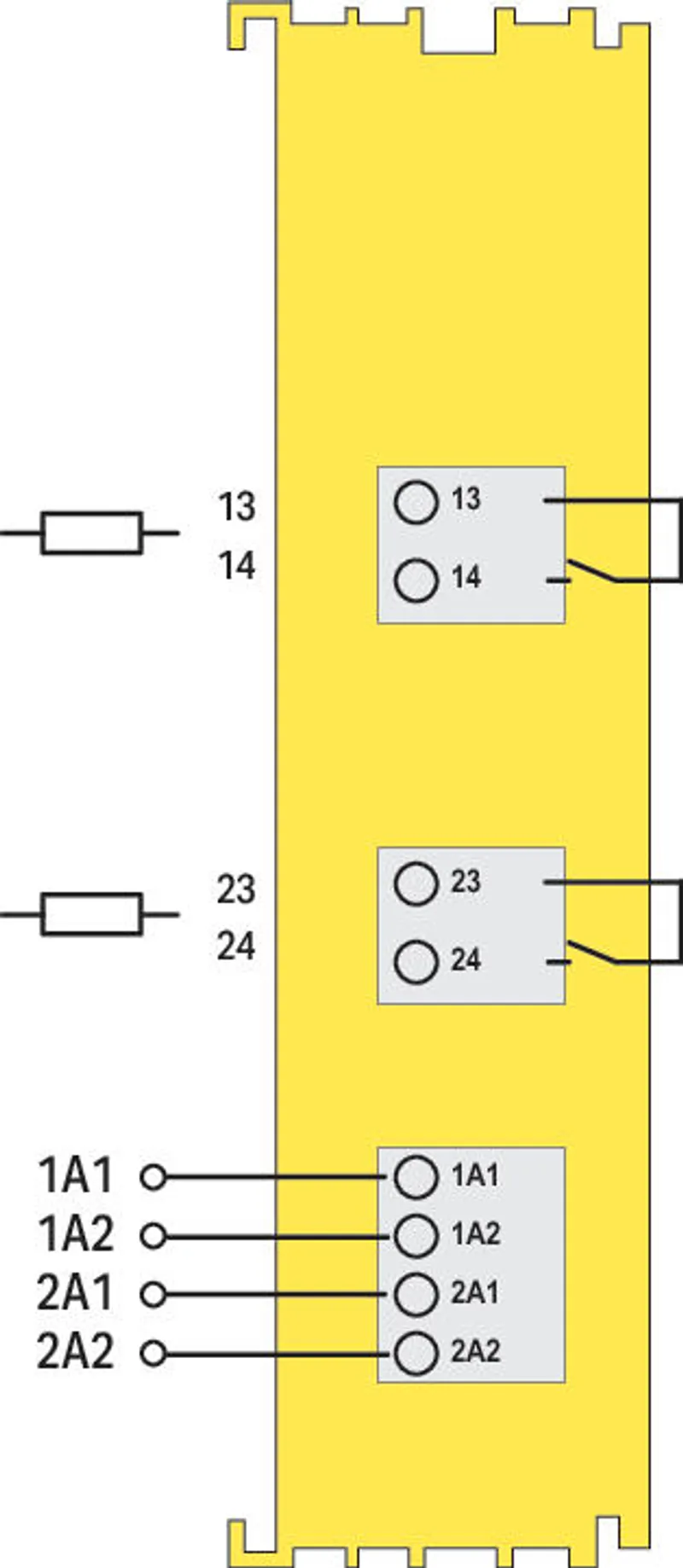

The module (Item No. 750-1689) has two independently switchable relay outputs (RO1 ... RO2) and is particularly suitable for applications that, e.g., individually electrically isolated Outputs are required, high loads must be switched or controlled with different voltage types (e.g., DC and AC voltage). The module supports operating voltages up to 250 VAC and 250 VDC. The electrically isolated outputs can be freely combined with each other, so that Cat. 2 or Cat. 4 architectures up to SIL3 or PLe are possible. Details on possible wiring variants can be found in the product manual. The relay outputs must be controlled via safe digital outputs (e.g., the outputs of the 75x-667/000-004, 750-1665/000-004 module), in which case an unsafe enable of the relay outputs must also be provided via the process image. The status of the safe relay outputs and the temperature for each relay are detected and transmitted to the controller via the non-safe process image, where they must be evaluated as diagnostics. The field and system levels are electrically isolated from each other. The individual safe modules can be arranged in any configuration in the fieldbus node. The module (Item No. 750-1689) was evaluated by UL in accordance with UL/CSA 61010-1, UL/CSA 61010-2-201 and UL 121201, CSA-C22.2 No. 213. The functional safety assessment according to the above standards was carried out by TÜV Rheinland.

Specifications

Technical data

Indicators	LED (A/B) green: Status RO1 ... RO2
Number of F I/O modules per node (fieldbus coupler/controller)	See information in the manual about the respective fieldbus coupler/controller
Supply voltage (system)	5 VDC; via data contacts
Current consumption (5 V system supply)	15 mA

Relay control signals

Signal type	Digital
Cable length (max.)	3 m
Reverse voltage protection	Yes
Input voltage (max.)	24 VDC (-25 … +30 %)
Input current (max.)	15 mA (Control current per channel max.)
Test pulse duration (max.)	1 ms

Relay outputs

Number of digital outputs	2
Output circuit design	2 make contacts; relay
Signal type	Digital
Actuator connection	2 x (2-wire)
Output characteristic	potential-free
Switching voltage (max.)	250 VAC; 250 VDC
Switching power	AC: 0.1 VA ... 1500 VA; DC: 200 W; see load limit curve
Output current (per channel)	6 A at 250 VAC (resistive load);6 A at 31,2 VDC (resistive load);3 A at 60 VDC (resistive load);0,8 A at 110 VDC (resistive load);0,3 A at 250 VDC (resistive load);2 A at 31,2 VDC (Pilot Duty);UL: R300 Pilot Duty according to UL508;UL: B300 Pilot Duty according to UL508
Switching capacity	AC-15: 3 A / 250 VAC; DC-13: 2 A / 31.2 VDC
Output current (module)	12 A
Limitation of the inductive switch-off voltage	nein
Drop-out time (typ.)	50 ms
Pull-in time (max.)	10 ms
Short-circuit withstand capacity	1 kA / 250 VAC IEC/EN 60947-5-1
Fuse	Each channel requires its own external fuse; max. 10 A slow; min. approved for the switching voltage used
Switching frequency (max.)	1 Hz; Resistive load
Switching frequency (max.) (2)	0.1 Hz; Inductive load
Contact load	2 mA (min.); 10 mA after a single overflow of 300 mA load current or a switching power of 12 W or 12 VA
Diagnostics	Relay status in the process image via force-guided contact
Electrical switching operations (min.) (at max. resistive load)	1 x 10⁶ switching operations
Mechanical switching operations (min.) (at max. resistive load)	40 x 10⁶ switching operations
Contact material	AgNi + 5μm Au
B10d values (resistive load)	Resistive load (at 230 VAC); 6 A: 600,000; 3 A: 6,000,000; 2 A: 10,000,000; 1 A: 12,000,000 switching cycles, Resistive load (at 24 VDC); 6 A: 4,000,000; 3 A: 10,000,000; 2 A: 14,000,000; 1 A: 20,000,000 switching cycles
B10d (15 AAC)	AC-15 (at 230 VAC); 3 A: 6,000,000; 2 A: 10,000,000; 1 A: 12,000,000; 0.5 A: 20,000,000 switching cycles
B10d (DC 13)	DC-13 (at 24 VDC); 2 A: 4,000,000; 1 A: 8,000,000; 0.5 A: 15,000,000 switching cycles

Safety and protection

System voltage	≤ 250 V
Note on system voltage	The system voltage corresponds to the line-to-neutral voltage derived from conventional mains power supply systems.

Insulation coordination

Overvoltage category	per EN 60664-1: III; per EN/UL 61010-2-201: II
Insulation type	Relay: Reinforced insulation; Channel/channel: Reinforced insulation; Control/system: Functional insulation

Test voltage

Test voltage	Test voltage (relay): 3.51 kVAC, 50/60 Hz, 1 min.; Test voltage (control/system): 500 VDC, 1 min.
Rated impulse withstand voltage	6 kV (relay)

Functional Safety

Achievable safety classes	Two-Channel Cat. 4/PL e per EN ISO 13849-1; SIL 3 per IEC 61508 / EN 62061; Single-Channel Cat. 2/PL d per EN ISO 13849-1; SIL 2 per IEC 61508 / EN 62061
Safety standards	IEC 61508-1 … -7; EN ISO 13849-1; EN 62061; DIN EN 61810-1, DIN EN 61810-3
Service life	20. Jahre

Connection data

Connection technology: I/O	8 x Push-in CAGE CLAMP® (outputs)
Connectable conductor materials	Copper
Connection type	Output
Solid conductor	0.14 … 1.5 mm² / 28 … 16 AWG
Fine-stranded conductor; with insulated ferrule	0.25 … 0.75 mm²
Fine-stranded conductor; with uninsulated ferrule	0.25 … 1.5 mm²
Strip length	8 … 9 mm / 0.31 … 0.35 inches

Physical data

Width	24 mm / 0.944 inches
Height	100 mm / 3.937 inches
Depth	69.8 mm / 2.748 inches
Depth from upper-edge of DIN-rail	62.6 mm / 2.465 inches

Mechanical data

Mounting type	DIN-35 rail
Pluggable connector	fixed

Material data

Housing material	Polycarbonate; polyamide 6.6
Fire load	1.374 MJ
Weight	93.5 g

Environmental requirements

Ambient temperature (operation)	0 … +55 °C
Ambient temperature (storage)	-40 … +85 °C
Protection type	IP20
Pollution degree	2
Protection class	II
Operating altitude	0 … 2000 m / 0 … 6562 ft
Mounting position	Horizontal left, horizontal right, horizontal top, vertical top and vertical bottom
Relative humidity (without condensation)	95 %
Vibration resistance	4g per IEC 60068-2-6
Shock resistance	15g per IEC 60068-2-27
EMC immunity to interference	Per EN 61000-6-2; marine applications; EN 61000-6-7 (FS); EN 61326-3-1:2017
EMC emission of interference	per EN 61000-6-4, marine applications, EN 61000-6-3
Exposure to pollutants	per IEC 60068-2-42 and IEC 60068-2-43
Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 %	10 ppm
Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 %	25 ppm
