Switchgear cabinet outlet; for DIN-rail and screw mounting; for plug, type E, CEE 7/5; common in FR, BE, PL; with LED status indicator; with Push-in Cage Clamp double connection; light gray
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 709-571 be shipped?
709-571 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 709-571 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 709-571 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 709-571, subject to availability and destination.
Switchgear cabinet outlet; for DIN-rail and screw mounting; for plug, type E, CEE 7/5; common in FR, BE, PL; with LED status indicator; with Push-in Cage Clamp double connection; light gray 709-571
Specifications
Notes
| Safety Information | Installation must be performed by a qualified electrician. |
| Safety information 2 | During the insulation resistance test, the active conductors must be connected.The integrated status indicator in the control cabinet outlet must be protected against transient overvoltages.Overvoltage protection in low-voltage systems must be observed. |
Technical data
| Number of spacings | 3 -fach |
| Mounting type | DIN-35 rail |
Electrical data
| Power loss P<sub>l</sub> (note) | LED status indication and contact resistance |
| Power loss P<sub>l</sub> (max.) | 1.8 W |
| Rated current | 16 A |
Connection data
| Connection technology | Push-in CAGE CLAMP® |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
| Solid conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor; with insulated ferrule | 2.5 mm² / 14 AWG |
| Stranded conductor | 0.2 … 2.5 mm² / 24 … 14 AWG |

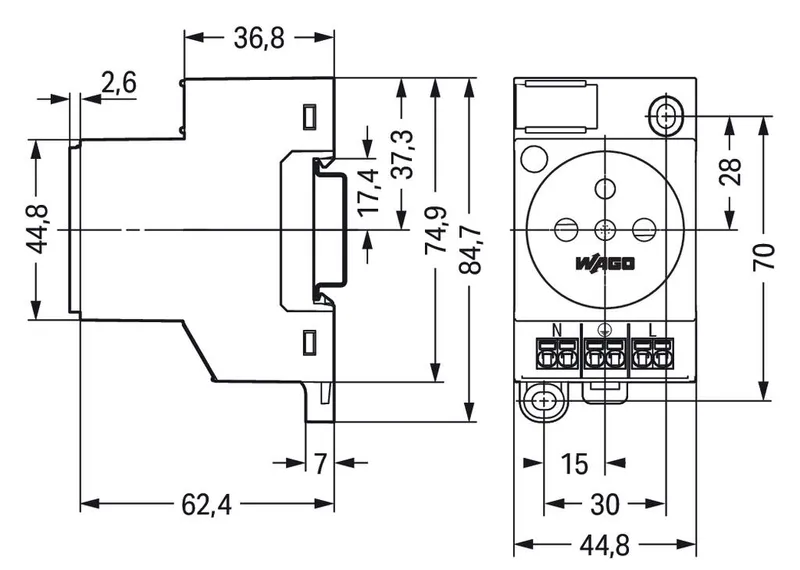

Physical data
| Width | 44.8 mm / 1.732 inches |
| Height | 84.7 mm / 3.48 inches |
| Depth | 65 mm / 2.559 inches |
| Depth from upper-edge of DIN-rail | 60 mm / 2.362 inches |
Material data
| Color | light gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper alloy |
| Contact plating | Sn |
| Clamping spring material | Chrome-nickel spring steel (CrNi) |
| Weight | 70.5 g |
Commercial data
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | BG |
| GTIN | 4066966629439 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121406 |
| ETIM 9.0 | EC001663 |
| ETIM 10.0 | EC001663 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
