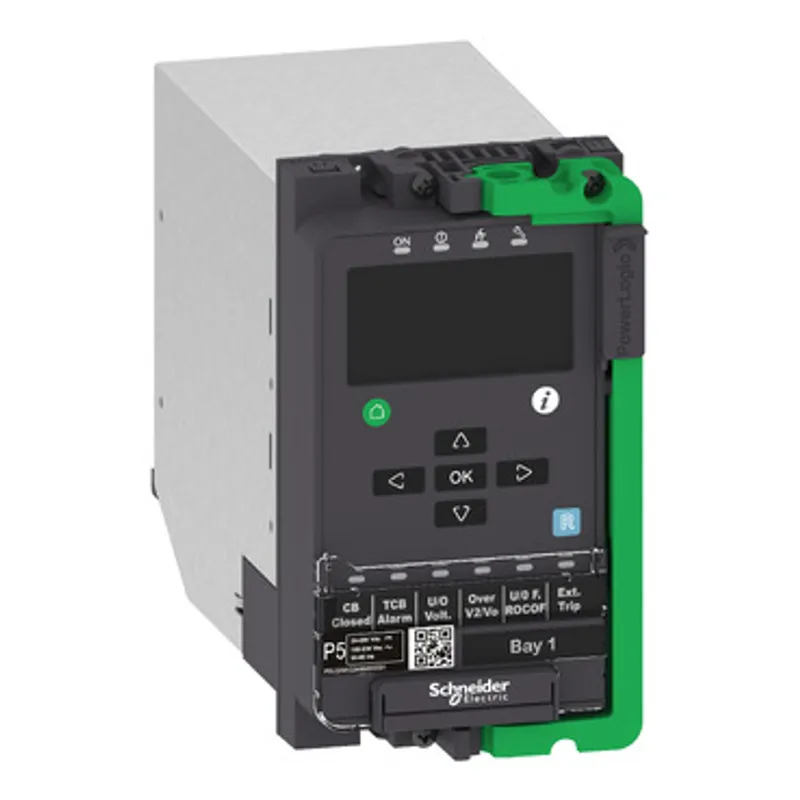

PowerLogic P5U20 24-250V 3CT 2Io 4DI-4DO RSTP Eth RJ45

The PowerLogic P5 is Schneider Electric's withdrawable protection and control relay for demanding medium voltage distribution applications. This current relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. The product embeds latest cybersecurity functionality to help prevent intentional mis-use and cyber-threats. PowerLogic P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The PowerLogic P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 24 to 250 VDC and 100 to 230 VAC. It works with conventional CTs. 3 phase current inputs, 1 standard neutral current input, 1 senstive neutral current input. It offers 4 digital inputs and 4 digital outputs, Ethernet RSTP RJ45 module with Dual IP and backup memory module. The product dimensions are 180 mm in height (7.09 in), 102 mm in width (4.01 in) and 224 mm in depth 8.82 in) for a net weight of 2.5 kg (5.5 lbs). PowerLogic P5 is compliant with EN 60255-26, EN 60255-27 standard and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug and play communication modules: Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51032), 8 temperature sensor module (59641), IRIG-B module (REL51045). connection cords (59660, 59661, 59662). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance.
