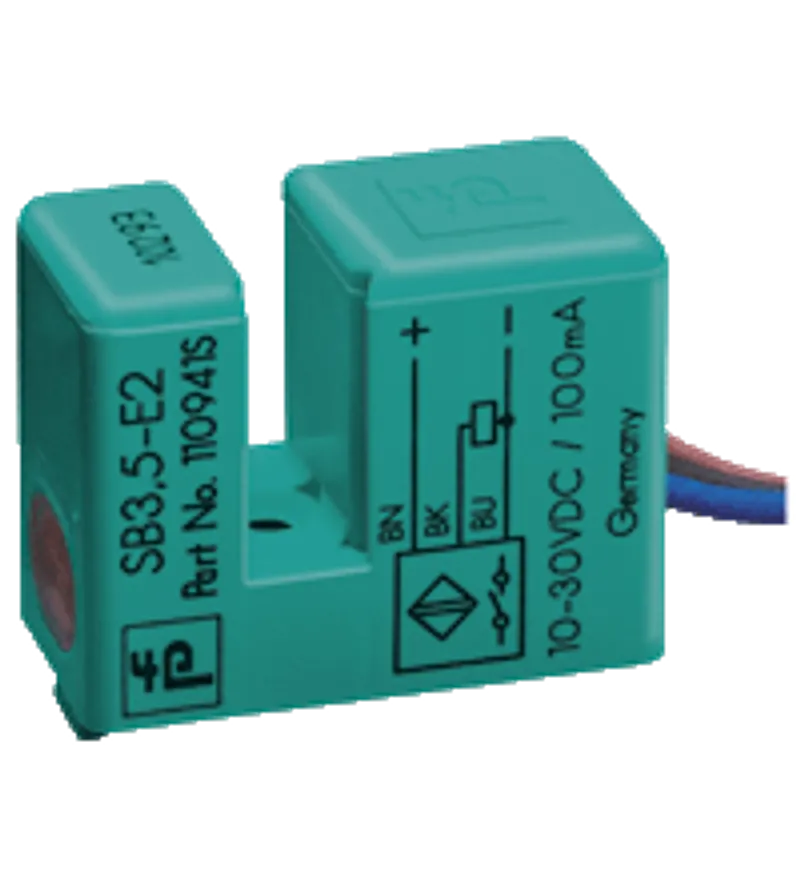

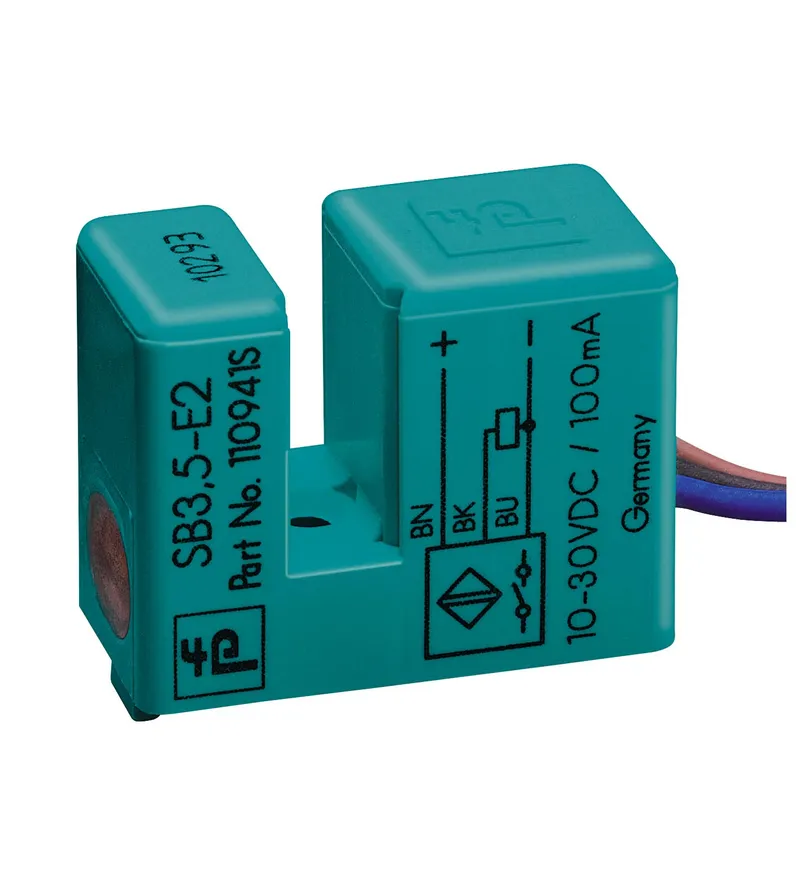

Pepperl Fuchs SB3,5-E2

Name: Pepperl Fuchs SB3,5-E2
Brand: Pepperl Fuchs
SKU: SB3,5-E2

MPN: SB3,5-E2 · Brand: Pepperl Fuchs

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Inductive Sensors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can SB3,5-E2 be shipped?

SB3,5-E2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SB3,5-E2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SB3,5-E2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SB3,5-E2, subject to availability and destination.

Inductive slot sensor. Switching function: Normally open (NO), Output type: PNP, Output polarity: DC, Output type: 3-wire, Construction type: Slot, Series: Slot type, Operating voltage: 10 ... 30 V DC, Type of voltage: DC, Connection type: flexible leads LiY , 500 mm, Housing material: PBT, Degree of protection: IP67. Switching function: Normally open (NO). Output type: PNP. Slot width: 3.5 mm. Depth of immersion (lateral): 5 ... 7 mm. Output polarity: DC. Output type: 3-wire. Operating voltage: 10 ... 30 V DC. Switching frequency: 0 ... 3000 Hz. Hysteresis: 0 ... 0.6 mm. Reverse polarity protection: reverse polarity protected. Short-circuit protection: pulsing. Voltage drop: ≤ 3 V. Operating current: 0 ... 100 mA. No-load supply current: ≤ 7 mA. Switching state indicator: LED, yellow. MTTFd: 2590 a. Mission Time (TM): 20 a. Diagnostic Coverage (DC): 0 %. Standard conformity: . StandardsEN IEC 60947-5-2: . Standards: EN IEC 60947-5-2. UL approval: cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA. CCC approval: CCC approval / marking not required for products rated ≤36 V. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Connection type: flexible leads LiY , 500 mm. Core cross section: 0.14 mm2. Housing material: PBT. Degree of protection: IP67. Dimensions: . Height15 mmWidth10 mmLength19.5 mm: . Height: 15 mm. Width: 10 mm. Length: 19.5 mm

Specifications

General specifications

Switching function	Normally open (NO)
Output type	PNP
Slot width	3.5 mm
Depth of immersion (lateral)	5 ... 7 mm
Output polarity	DC
Output type	3-wire

Nominal ratings

Operating voltage	10 ... 30 V DC
Switching frequency	0 ... 3000 Hz
Hysteresis	0 ... 0.6 mm
Reverse polarity protection	reverse polarity protected
Short-circuit protection	pulsing
Voltage drop	≤ 3 V
Operating current	0 ... 100 mA
No-load supply current	≤ 7 mA
Switching state indicator	LED, yellow

Functional safety related parameters

MTTFd	2590 a
Mission Time (TM)	20 a
Diagnostic Coverage (DC)	0 %

Compliance with standards and directives

Standard conformity
StandardsEN IEC 60947-5-2
Standards	EN IEC 60947-5-2

Approvals and certificates

UL approval	cULus Listed Load Type: General Purpose Circuitry: Class 2 Power Source Enclosure Type Rating: Type 1 Supply/Switching Voltage: 30 V DC Output Switching Current: 100 mA
CCC approval	CCC approval / marking not required for products rated ≤36 V

Ambient conditions

Ambient temperature

-25 ... 70 °C (-13 ... 158 °F)

Mechanical specifications

Connection type	flexible leads LiY , 500 mm
Core cross section	0.14 mm2
Housing material	PBT
Degree of protection	IP67

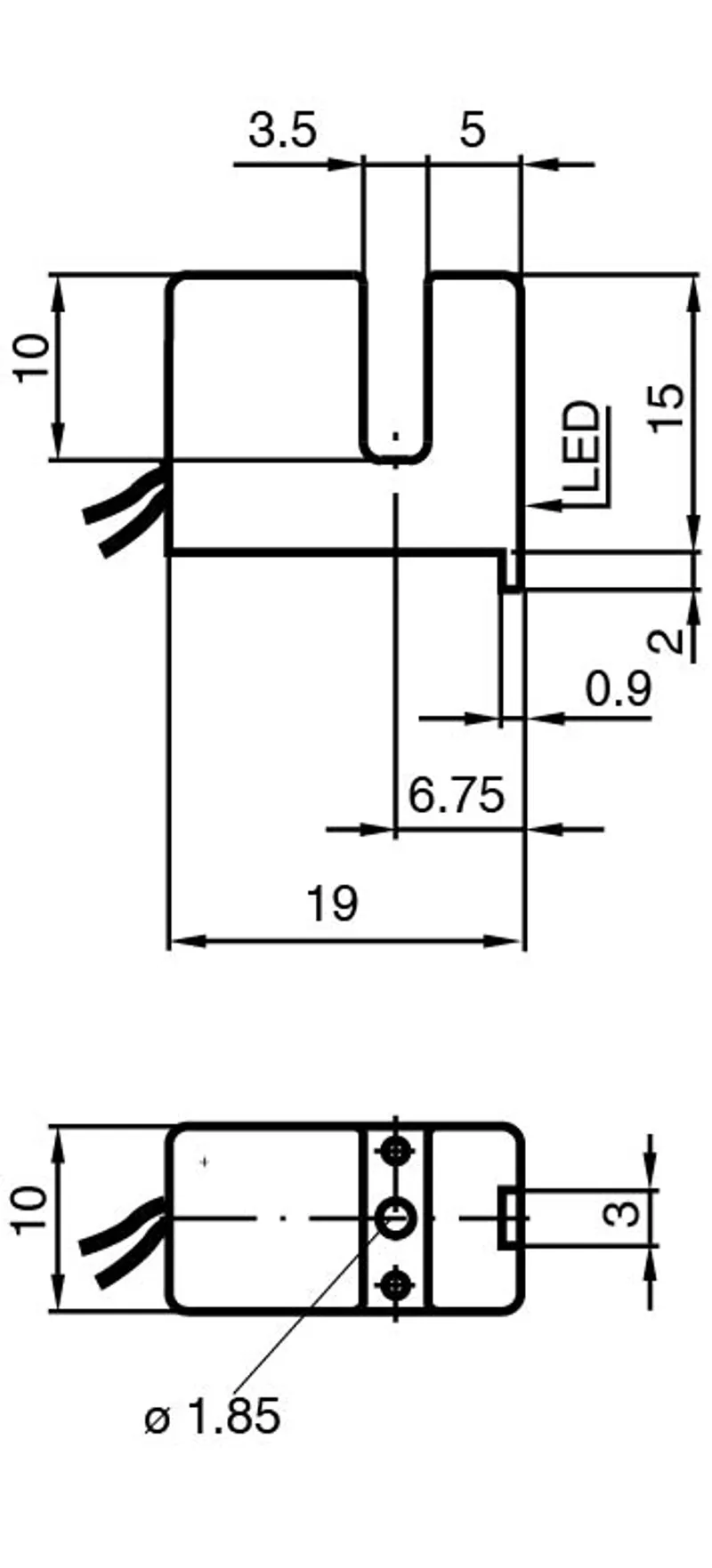

Dimensions
Height15 mmWidth10 mmLength19.5 mm
Height	15 mm
Width	10 mm
Length	19.5 mm
