Pepperl Fuchs REF-MH50
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Accessories |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can REF-MH50 be shipped?
REF-MH50 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up REF-MH50 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for REF-MH50 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for REF-MH50, subject to availability and destination.

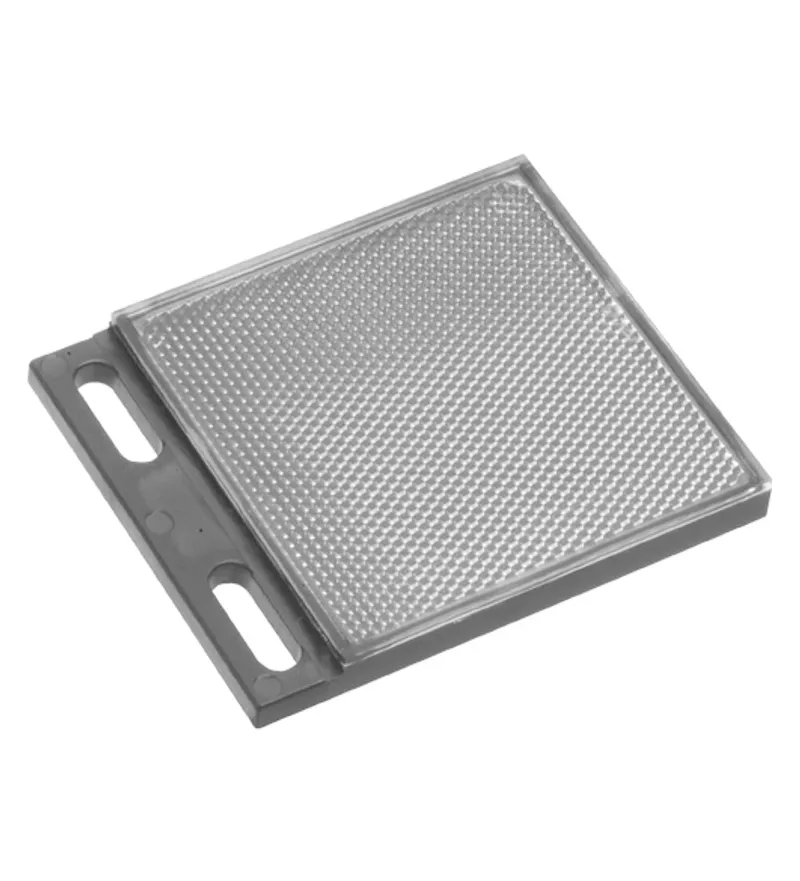

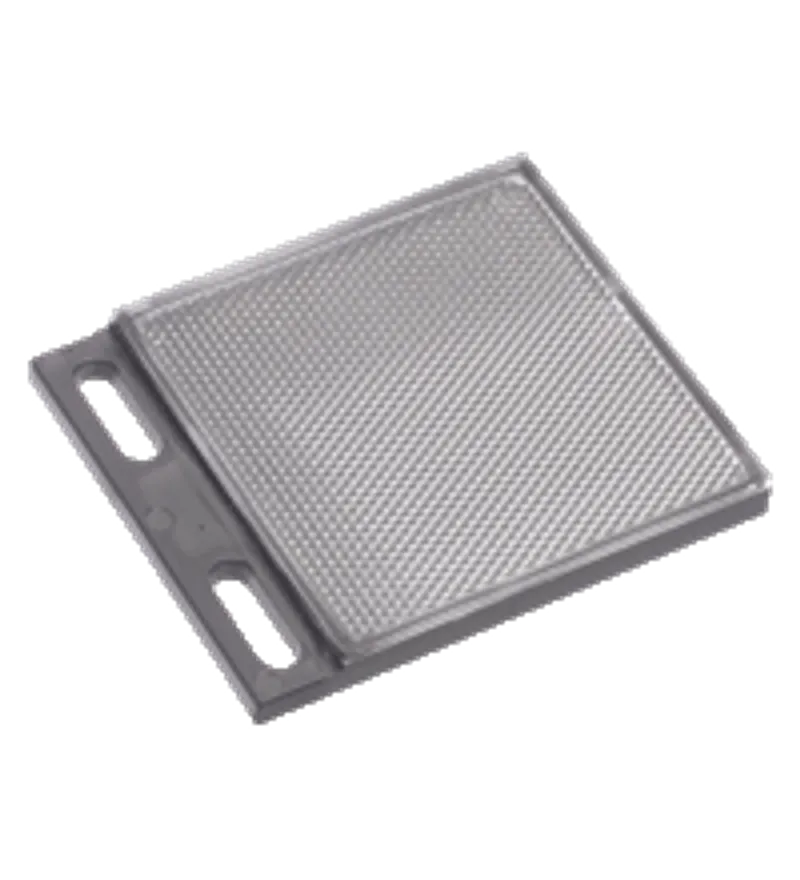

Reflector with micro-structure. Reflector with Micro-structure, rectangular 50.9 mm x 50.9 mm, mounting holes, fixing strap, Mounting holes for simple installation, Micro-structure. Construction type: rectangular. Tripel height: approx. 0.9 mm. Ambient temperature: -20 ... 85 °C (-4 ... 185 °F). Material: PMMA/ABS. Dimensions: . Height6.3 mmWidth50.9 mmLength60.9 mm: . Height: 6.3 mm. Width: 50.9 mm. Length: 60.9 mm. Mounting: mounting holes
Specifications
General specifications
| Construction type | rectangular |
| Tripel height | approx. 0.9 mm |
Ambient conditions
| Ambient temperature | -20 ... 85 °C (-4 ... 185 °F) |
Mechanical specifications
| Material | PMMA/ABS |

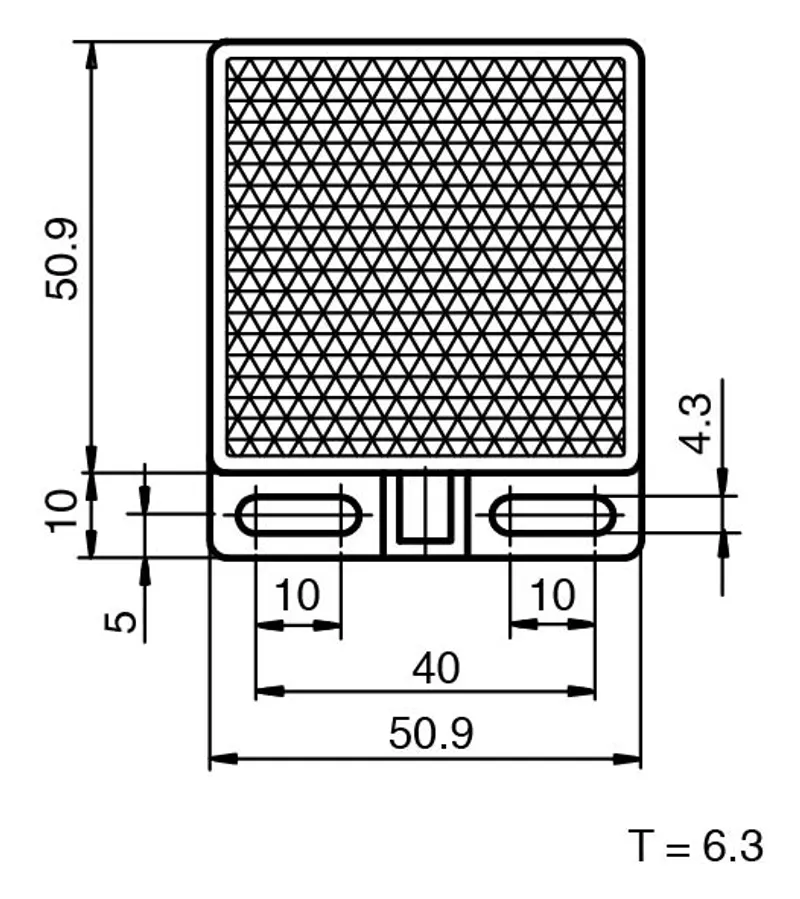

| Dimensions | |
| Height6.3 mmWidth50.9 mmLength60.9 mm | Height |
| Height | 6.3 mm |
| Width | 50.9 mm |
| Length | 60.9 mm |
| Mounting | mounting holes |
