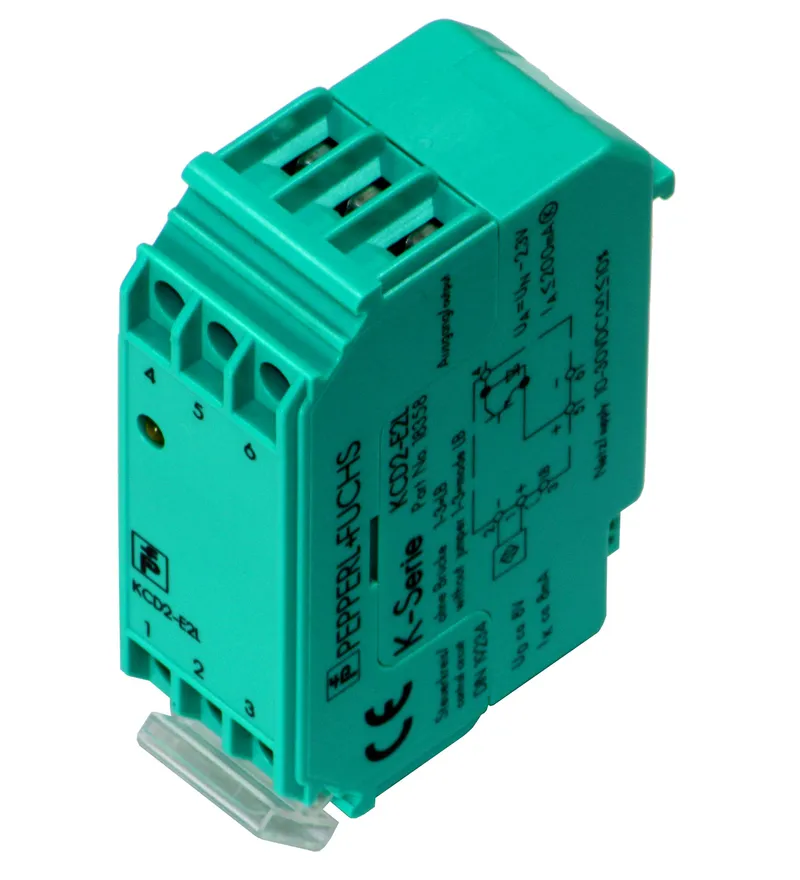

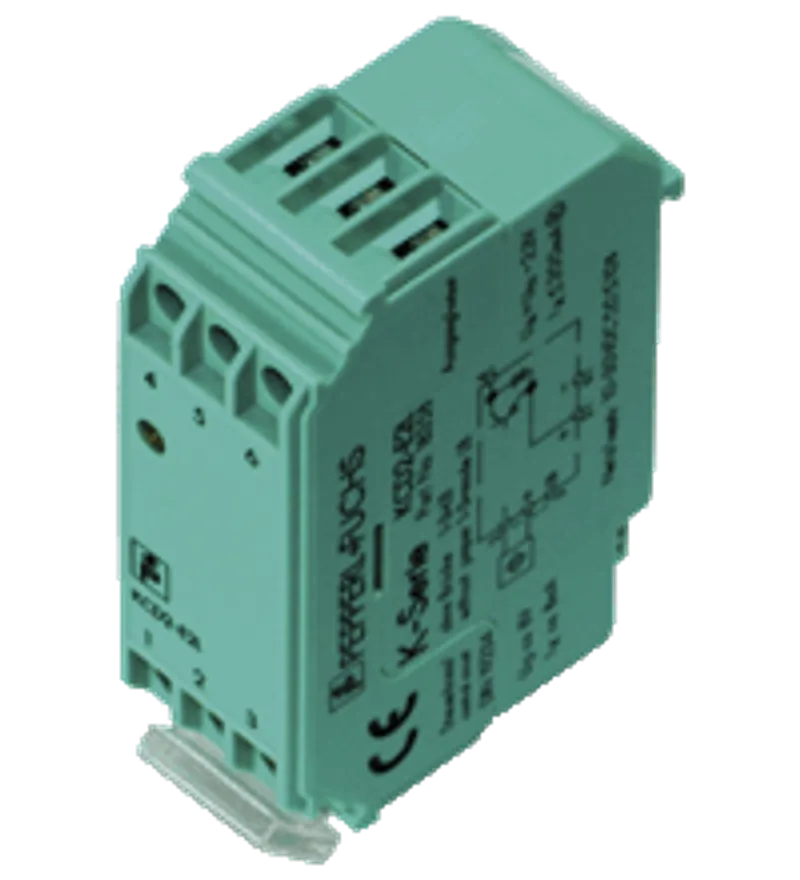

Sensor output interface terminal. Single-channel terminal amplifier with line breakage detection, input for NAMUR sensors, DC 24 V supply voltage, standardized interface to prevent signal transmission errors, switching state display, LED yellow. MTTFd: 1837 a. LED yellow: switching output lead breakage: LED off, output locked. Operating voltage: 10 ... 30 V DC. Ripple: ≤ 10 %. Operating current: approx. 22 mA. Connection: terminals 1+, 2-. Connectable sensor types: NAMUR. Pulse length/pulse interval: ≥ 0.5 ms / ≥ 0.5 ms. Short-circuit current: approx. 8 mA. Sensor supply: 8 V DC, max. 9 V DC at input resistance min. 562 Ω. Switching point: 1.2 ... 2.1 mA hysteresis approx. 0.2 mA. Line fault detection: with. Trip value: 1 kHz. Connection: terminal 4+. Current: 200 mA short-circuit protected. Transistor: PNP. Signal level: UB - 1.1V. Mode of operation: NO contact. Switching frequency: 1 kHz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: EN 60529:2000. Noise immunity: EN 61326-1:2013. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Degree of protection: IP20. Connection: self-opening apparatus connection terminals, max. core cross section 0.34 ... 2.5 mm2. Mass: 60 g. Dimensions: 20x60x40(in mm)
Specifications
Functional safety related parameters
| MTTFd | 1837 a |
Indicators/operating means
| LED yellow | switching output lead breakage: LED off, output locked |
Electrical specifications
| Operating voltage | 10 ... 30 V DC UB |
| Ripple | ≤ 10 % |
| Operating current | approx. 22 mA IB |
Input
| Connection | terminals 1+, 2- |
| Connectable sensor types | NAMUR |
| Pulse length/pulse interval | ≥ 0.5 ms / ≥ 0.5 ms |
| Short-circuit current | approx. 8 mA |
| Sensor supply | 8 V DC, max. 9 V DC at input resistance min. 562 Ω |
| Switching point | 1.2 ... 2.1 mA hysteresis approx. 0.2 mA |
| Line fault detection | with |
| Trip value | 1 kHz |
Output
| Connection | terminal 4+ |
| Current | 200 mA short-circuit protected |
| Transistor | PNP |
| Signal level | UB - 1.1V |
Transfer characteristics
| Mode of operation | NO contact |
| Switching frequency | 1 kHz |
Directive conformity
| Electromagnetic compatibility | |
| Directive 2014/30/EUEN 61326-1:2013 | Directive 2014/30/EU |
| Directive 2014/30/EU | EN 61326-1:2013 |
Standard conformity
| Degree of protection | EN 60529:2000 |
| Noise immunity | EN 61326-1:2013 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Degree of protection | IP20 |
| Connection | self-opening apparatus connection terminals, max. core cross section 0.34 ... 2.5 mm2 |
| Mass | 60 g |
| Dimensions | 20x60x40(in mm) |
