Pepperl Fuchs KCD2-E1
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Signal Converters |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can KCD2-E1 be shipped?
KCD2-E1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up KCD2-E1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for KCD2-E1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for KCD2-E1, subject to availability and destination.

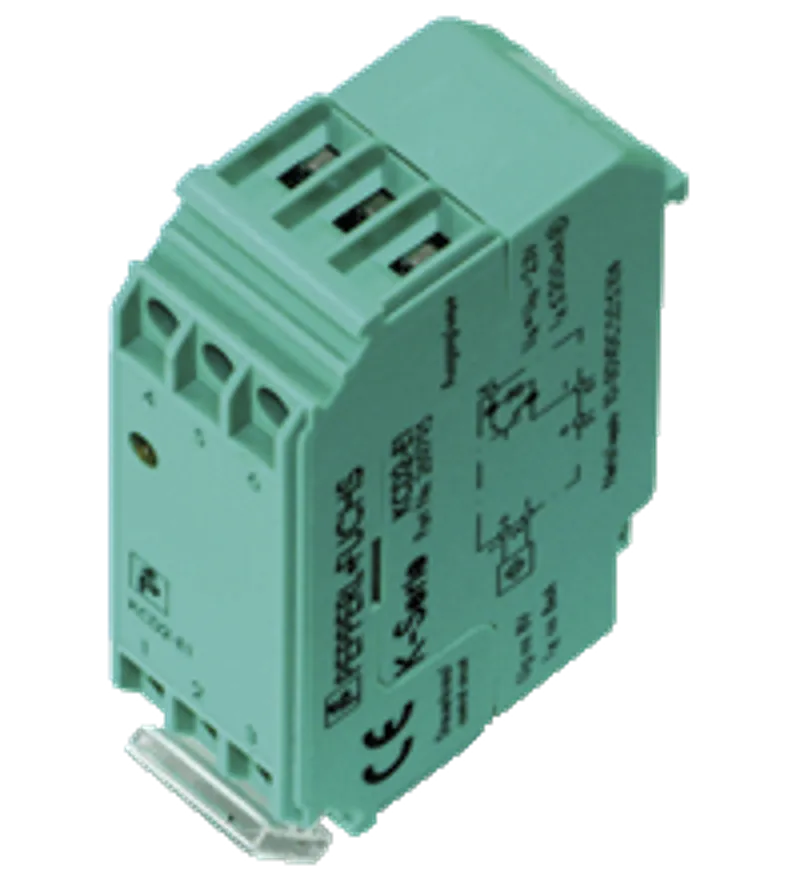

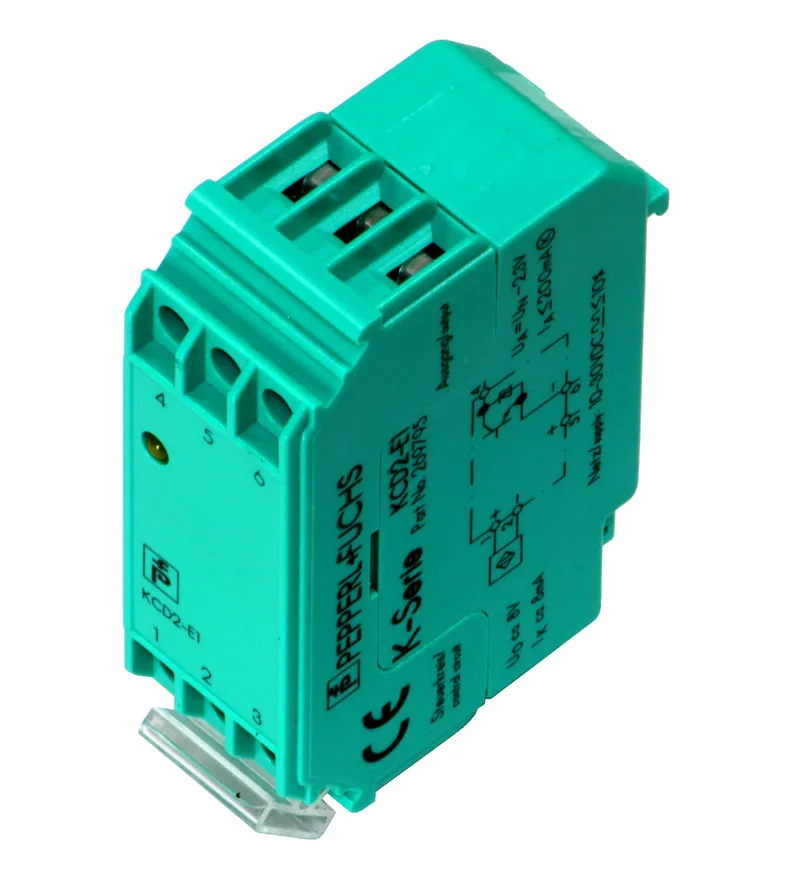

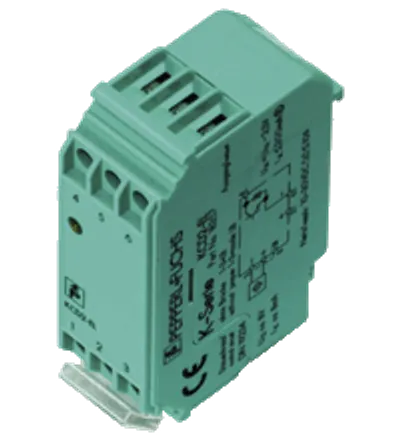

Sensor output interface terminal. 1-channel terminal amplifier, NAMUR sensor input, DC 24 V supply voltage, Standard interface for prevention of signal transmission errors, Switching status indicator, yellow LED, Operating voltage: 10 ... 30 V DC, Connectable sensor types: NAMUR, Transistor: NPN. MTTFd: 1612 a. LED yellow: switch output. Operating voltage: 10 ... 30 V DC. Ripple: ≤ 10 %. Operating current: approx. 22 mA. Connection: terminals 1+, 2-. Connectable sensor types: NAMUR. Pulse length/pulse interval: ≥ 0.5 ms / ≥ 0.5 ms. Short-circuit current: approx. 8 mA. Sensor supply: 8 V DC. Switching point: 1.2 ... 2.1 mA hysteresis approx. 0.2 mA. Line fault detection: without. Trip value: 1 kHz. Connection: terminal 4-. Current: 200 mA short-circuit protected. Transistor: NPN. Signal level: UB - 1.8V. Mode of operation: NC contact. Switching frequency: 1 kHz. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1:2013: . Directive 2014/30/EU: EN 61326-1:2013. Degree of protection: EN 60529:2000. Noise immunity: EN 61326-1:2013. Ambient temperature: -25 ... 70 °C (-13 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Connection: self-opening apparatus connection terminals, max. core cross-section 0.34 ... 2.5 mm2. Mass: 60 g. Dimensions: 20x60x40(in mm)
Specifications
Functional safety related parameters
| MTTFd | 1612 a |
Indicators/operating means
| LED yellow | switch output |
Electrical specifications
| Operating voltage | 10 ... 30 V DC |
| Ripple | ≤ 10 % |
| Operating current | approx. 22 mA |
Input
| Connection | terminals 1+, 2- |
| Connectable sensor types | NAMUR |
| Pulse length/pulse interval | ≥ 0.5 ms / ≥ 0.5 ms |
| Short-circuit current | approx. 8 mA |
| Sensor supply | 8 V DC |
| Switching point | 1.2 ... 2.1 mA hysteresis approx. 0.2 mA |
| Line fault detection | without |
| Trip value | 1 kHz |
Output
| Connection | terminal 4- |
| Current | 200 mA short-circuit protected |
| Transistor | NPN |
| Signal level | UB - 1.8V |
Transfer characteristics
| Mode of operation | NC contact |
| Switching frequency | 1 kHz |
Directive conformity
| Electromagnetic compatibility | |
| Directive 2014/30/EUEN 61326-1:2013 | |
| Directive 2014/30/EU | EN 61326-1:2013 |
Standard conformity
| Degree of protection | EN 60529:2000 |
| Noise immunity | EN 61326-1:2013 |
Ambient conditions
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Connection | self-opening apparatus connection terminals, max. core cross-section 0.34 ... 2.5 mm2 |
| Mass | 60 g |
| Dimensions | 20x60x40(in mm) |
