Pepperl Fuchs GR*-U*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Enclosures (Ex d, Ex e) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can GR*-U* be shipped?
GR*-U* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GR*-U* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GR*-U* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GR*-U*, subject to availability and destination.

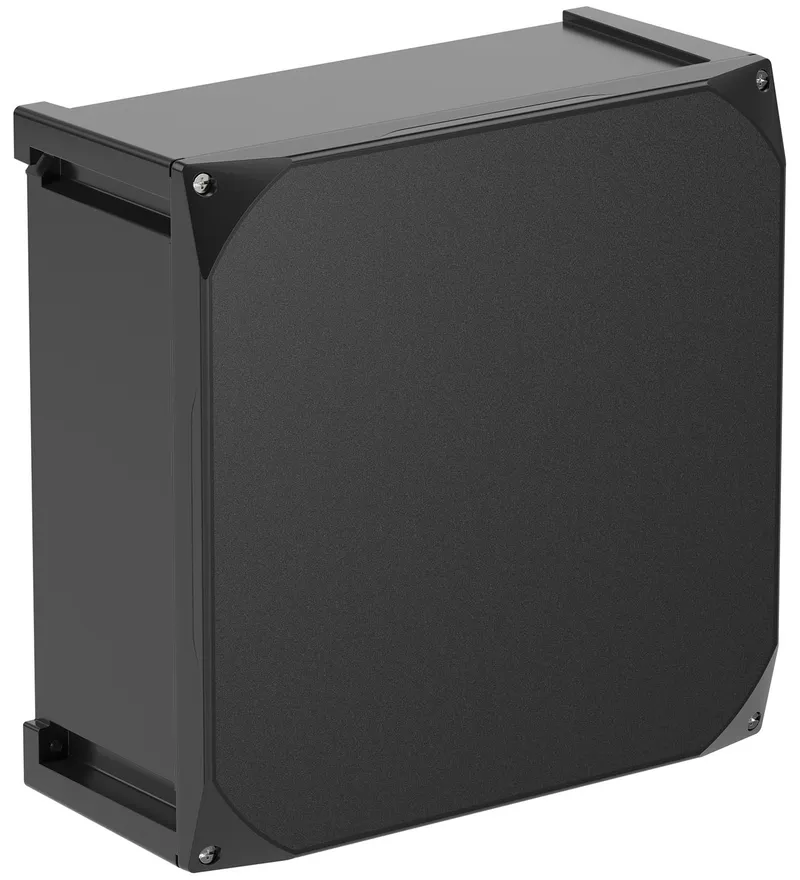

Enclosure (Ex e). Glass-fiber reinforced polyester (GRP) enclosure, Installation in Zone 1, Zone 2, Zone 21 and Zone 22, Ex eb and Ex tb certified, Suitable for operation in Class I, II Division 2, Suitable for operation in Class I Zone 2, Class II Zone 22, Modern design with high impact resistance, Easy installation due to easily accessible mounting points, Prefabricated mounting grid for flexible arrangement of internal components, Durable IP degree of protection due to foamed gasket and protected sealing area. Operating voltage: 690 V AC / DC max. , depending on size for ATEX / IECEx. Operating current: 350 A max. , depending on size and certification. Enclosure cover: fully detachable , optional hinges. Cover fixing: Stainless steel A4 (V4A) combination pozi driv and slotted screw. Cover seal: foamed silicone. Degree of protection: IP66 , Type 4X. Cable entry: see data table. Number of cable entriessee data table: . Number of cable entries: see data table. Terminal assembly: . Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table: . Number of rails: see data table. Terminal type: Standard see PDF datasheet, other terminal types optional. Number of terminals per rail: see data table. Material: . Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional: . Enclosure: carbon loaded, antistatic glass-fiber reinforced polyester (GRP). Finish: inherent color black. Grounding plate: 2 mm brass optional. Mass: see data table valid for empty enclosure, will increase according to integrated components. Shock resistance: IK09 (from GR.18.18.10 and larger, IK09, IK10 apply). Dimensions: see data table. Mounting: screws , see data table. Grounding: none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt. Ambient temperature: -60 ... 85 °C (-76 ... 185 °F). EU-type examination certificate: CML 17 ATEX 3084U. Marking II 2 GD Ex eb IIC Gb Ex tb IIIC Db: . Marking: II 2 GD Ex eb IIC Gb Ex tb IIIC Db. UL approval: . Approved forClass I and II, Division 2 Class I, Zone 2, Class II, Zone 22cULusE499269Ambient temperature-25 ... 40 °C (-13 ... 104 °F): . Approved for: Class I and II, Division 2 Class I, Zone 2, Class II, Zone 22. cULus: E499269. Ambient temperature: -25 ... 40 °C (-13 ... 104 °F). IECEx approval: IECEx CML 17.0039U. UKCA approval: CML 21 UKEX 3895U. INMETRO approval: TÜV 19.1741U. IA approval: MASC S/18-1359U. Degree of protection: EN60529 and UL 50 / UL 50E. Shock resistance: EN IEC 62262. Ordering information: For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.. Optional accessories: M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass mounting plate, stainless steel hinges, polyamide mounting block for DIN mounting rail, polyamide engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label
Specifications
Electrical specifications
| Operating voltage | 690 V AC / DC max. , depending on size for ATEX / IECEx |
| Operating current | 350 A max. , depending on size and certification |
Mechanical specifications
| Enclosure cover | fully detachable , optional hinges |
| Cover fixing | Stainless steel A4 (V4A) combination pozi driv and slotted screw |
| Cover seal | foamed silicone |
| Degree of protection | IP66 , Type 4X |
| Cable entry | see data table |
| Number of cable entriessee data table | Number of cable entries |
| Number of cable entries | see data table |
| Terminal assembly | |
| Number of railssee data tableTerminal typeStandard see PDF datasheet, other terminal types optionalNumber of terminals per railsee data table | Number of rails |
| Number of rails | see data table |
| Terminal type | Standard see PDF datasheet, other terminal types optional |
| Number of terminals per rail | see data table |
| Material | |
| Enclosurecarbon loaded, antistatic glass-fiber reinforced polyester (GRP)Finishinherent color blackGrounding plate2 mm brass optional | Enclosure |
| Enclosure | carbon loaded, antistatic glass-fiber reinforced polyester (GRP) |
| Finish | inherent color black |
| Grounding plate | 2 mm brass optional |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Shock resistance | IK09 (from GR.18.18.10 and larger, IK09, IK10 apply) |
| Dimensions | see data table |
| Mounting | screws , see data table |
| Grounding | none as standard optional M6 or M8 internal/external brass nickel-plated grounding bolt optional M6 or M8 internal/external stainless steel grounding bolt |
Ambient conditions
| Ambient temperature | -60 ... 85 °C (-76 ... 185 °F) |
Data for application in connection with hazardous areas
| EU-type examination certificate | CML 17 ATEX 3084U |
| Marking II 2 GD Ex eb IIC Gb Ex tb IIIC Db | Marking |
| Marking | II 2 GD Ex eb IIC Gb Ex tb IIIC Db |
International approvals
| UL approval | |
| Approved forClass I and II, Division 2 Class I, Zone 2, Class II, Zone 22cULusE499269Ambient temperature-25 ... 40 °C (-13 ... 104 °F) | Approved for |
| Approved for | Class I and II, Division 2 Class I, Zone 2, Class II, Zone 22 |
| cULus | E499269 |
| Ambient temperature | -25 ... 40 °C (-13 ... 104 °F) |
| IECEx approval | IECEx CML 17.0039U |
| UKCA approval | CML 21 UKEX 3895U |
| INMETRO approval | TÜV 19.1741U |
| IA approval | MASC S/18-1359U |
Conformity
| Degree of protection | EN60529 and UL 50 / UL 50E |
| Shock resistance | EN IEC 62262 |
General information
| Ordering information | For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
Accessories
| Optional accessories | M6 or M8 internal/external brass nickel-plated grounding bolts M6 or M8 internal/external stainless steel grounding bolts grounding plate, brass mounting plate, stainless steel hinges, polyamide mounting block for DIN mounting rail, polyamide engraved traffolyte tag labelengraved AISI 316L stainless steel tag labelcolor in-fill stainless steel tag label |
