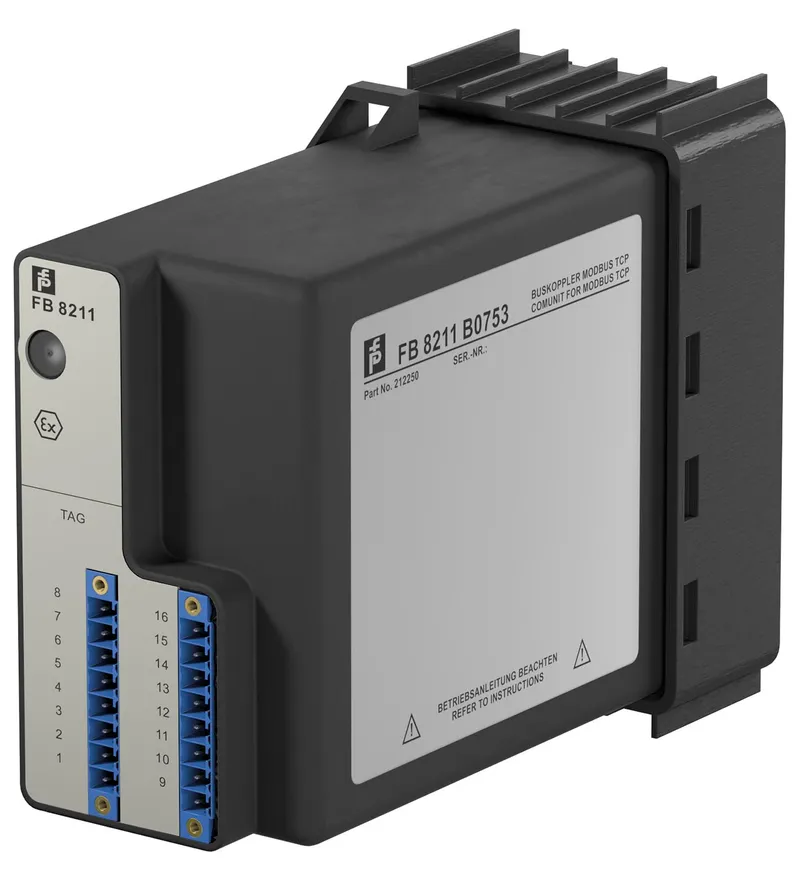

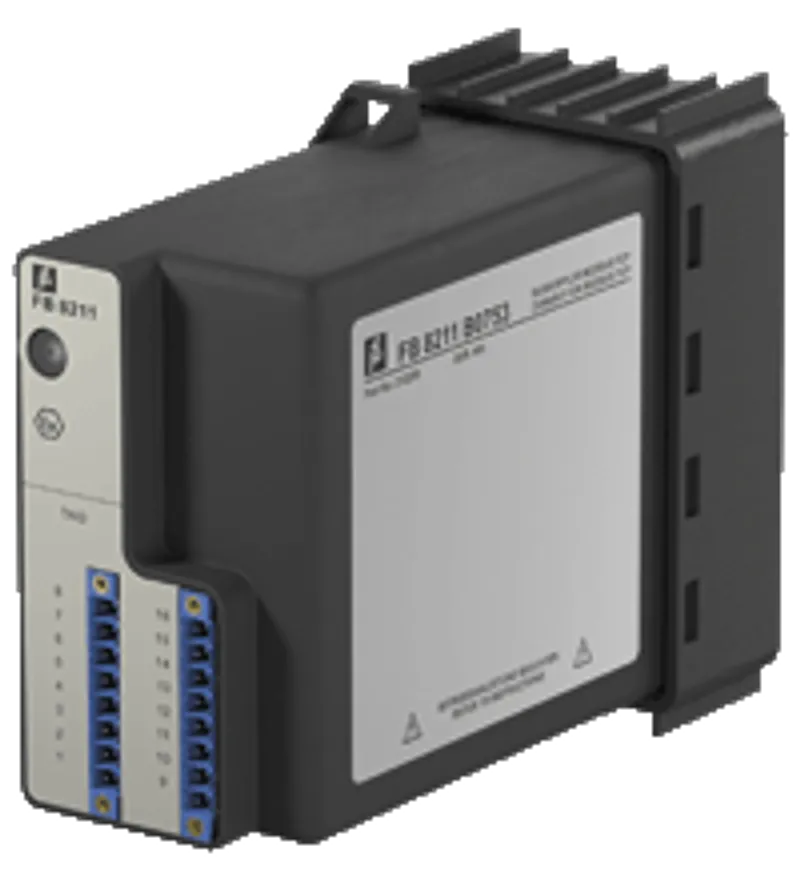

Pepperl Fuchs FB8211*

Com Unit for MODBUS TCP. Interface between the I/O modules and the PCS/PLC, Communication via MODBUS TCP, Installation in suitable enclosures in Zone 1, Module can be exchanged under voltage (hot swap), Fieldbus type: MODBUS TCP. Connection: backplane bus. Rated voltage: 5 V DC , only in connection with the power supplies FB92**. Power consumption: 2.5 W. Fieldbus type: MODBUS TCP. Connection type: wired to Ex e terminals via backplane. Transfer rate: 10 MBit/s. Station connection: directly to PCS or PLC or via hubs or switches. Bus length: max. 100 m (Ethernet standard). Addressing: IP address assigned via Ethernet. Ethernet address: IP V4 address (factory standard setting: 0.0.0.0, auto IP, DHCP). Number of channels per station: max. 80 analog, max. 184 digital. Supported I/O modules: all FB remote I/O modules. HART communication: via Ethernet. Connection: backplane bus. Redundancy: via left front connector. Connection: via right front connector in connection with service adapter SERV8001. LED indication: LED green (power supply): On = operating, fast flash = cold start LED red (collective alarm): On = internal fault, flashing = no Modbus TCP connection LED yellow (operating mode): flashing 1 (1:1 ratio) = active, normal operation; flashing 2 (7:1 ratio) = active, simulation. Electromagnetic compatibility: . Directive 2014/30/EUEN 61326-1: . Directive 2014/30/EU: EN 61326-1. Electromagnetic compatibility: NE 21. Degree of protection: IEC 60529. Fieldbus standard: IEEE 802.3. Environmental test: EN 60068-2-14. Shock resistance: EN 60068-2-27. Vibration resistance: EN 60068-2-6. Damaging gas: EN 60068-2-42. Relative humidity: EN 60068-2-56. Ambient temperature: -20 ... 60 °C (-4 ... 140 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Relative humidity: 95 % non-condensing. Shock resistance: shock type I, shock duration 11 ms, shock amplitude 15 g, number of shocks 18. Vibration resistance: frequency range 10 ... 150 Hz; transition frequency: 57.56 Hz, amplitude/acceleration ± 0.075 mm/1 g; 10 cyclesfrequency range 5 ... 100 Hz; transition frequency: 13.2 Hz amplitude/acceleration ± 1 mm/0.7 g; 90 minutes at each resonance. Damaging gas: designed for operation in environmental conditions acc. to ISA-S71.04-1985, severity level G3. Degree of protection: IP20 (module) , a separate housing is required acc. to the system description. Connection: via backplane. Mass: approx. 750 g. Dimensions: 57 x 107 x 132 mm (2.2 x 4.2 x 5.2 inch). EU-Type Examination Certificate: PTB 97 ATEX 1074 U. Marking II 2 G Ex d [ib] IIC Gb: . Marking: II 2 G Ex d [ib] IIC Gb. Directive conformity: . Directive 2014/34/EUEN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006: . Directive 2014/34/EU: EN 60079-0:2009 EN 60079-1:2007 EN 60079-11:2007 EN 60079-26:2007 EN 61241-11:2006. EAC approval: Russia: RU C-IT.MIII06.B.00129. Marine approval: . Lloyd Register15/20021DNV GL MarineTAA0000034American Bureau of ShippingT1450280/UN: . Lloyd Register: 15/20021. DNV GL Marine: TAA0000034. American Bureau of Shipping: T1450280/UN. System information: The module has to be mounted in appropriate backplanes (FB92**) in Zone 1, 2, or outside hazardous areas. Observe the corresponding EC-type examination certificate.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
