Pepperl Fuchs EXPC*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Switch Disconnectors (Ex d) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can EXPC* be shipped?
EXPC* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up EXPC* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for EXPC* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EXPC*, subject to availability and destination.

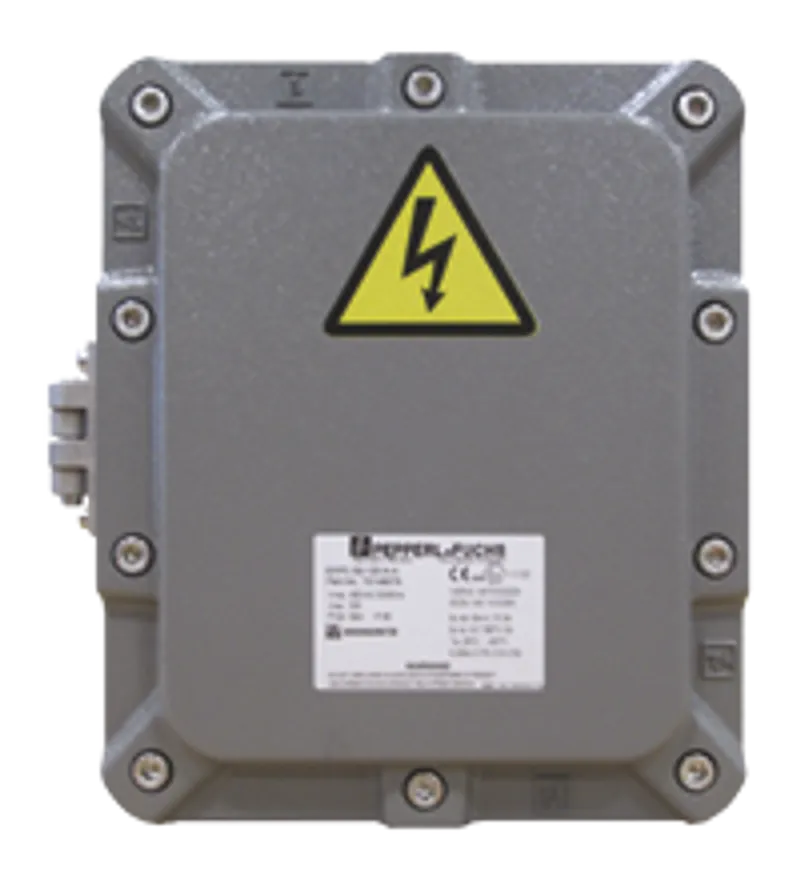

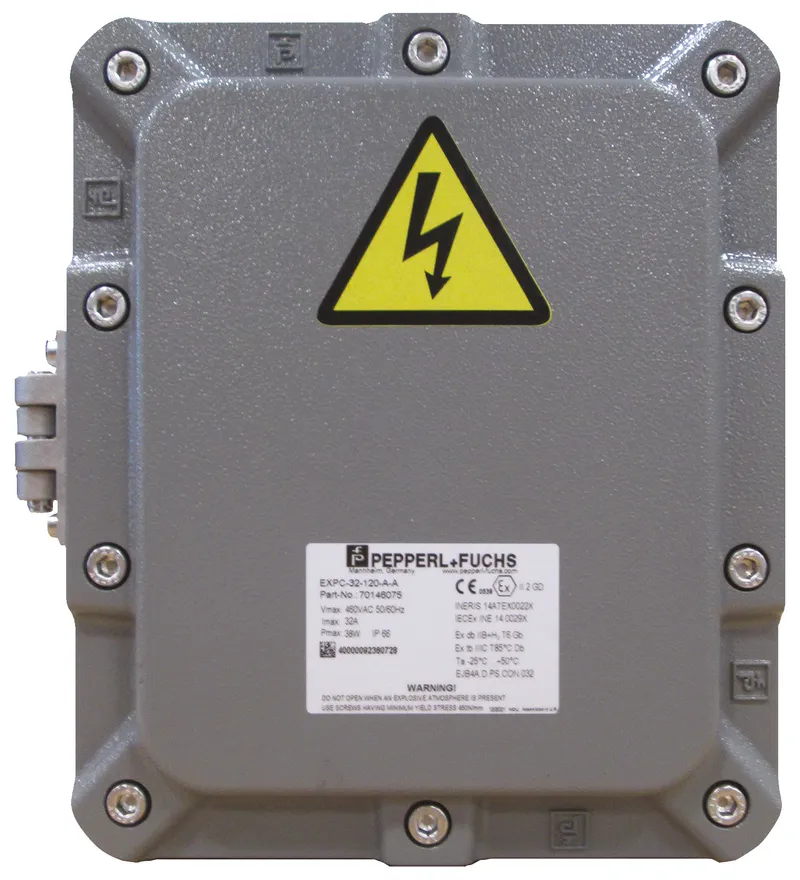

Explosion Proof Power Contactors. 3-pole non-reversing contactors for Division 1 / Zone 1, Preconfigured line and load ports, Copper-free cast aluminum housing Type 4X / IP66, Breather drain and hinged cover standard, Incorporates Eaton XT IEC Power Control contractors, Function: Power control, Enclosure: Copper-free aluminum alloy or 316L stainless steel. Operating voltage: 115 ... 460 V. Rated frequency: 50/60 Hz. Short circuit current limitation: see data table. Operating current: 18 A - 170 A. Rated insulation voltage: 690 V. Function: Power control. Contact configurationsee data tableUsage categorysee data tableNumber of polessee data tableAuxiliary contactsOne (1) normally open contactAuxiliary contacts usage categorysee data table: . Contact configuration: see data table. Usage category: see data table. Number of poles: see data table. Auxiliary contacts: One (1) normally open contact. Auxiliary contacts usage category: see data table. Thread type: metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1. Enclosure range: EJB. Enclosure cover: fully detachable. Cover fixing: stainless steel socket cap head screws. Screwssee data tableYield stressmin. 450 N/mm2: . Screws: see data table. Yield stress: min. 450 N/mm2. Cover seal: none. Flamepath grease: Greasil MS4 or NEVER SEEZ Marine Grade. Degree of protection: Type 4, 4X, 7, 9 / IP66. Cable entry: see data table. Defined entry area: face B. Material: . EnclosureCopper-free aluminum alloy or 316L stainless steelFinishFor aluminum: epoxy coated RAL 7005 (grey): . Enclosure: Copper-free aluminum alloy or 316L stainless steel. Finish: For aluminum: epoxy coated RAL 7005 (grey). Mass: see data table. Dimensions: see data table values might differ slightly due to casting and manufacturing tolerances. Tightening torque: . Nut torque at enclosure (SW1)see datasheets of stopping plugs: . Nut torque at enclosure (SW1): see datasheets of stopping plugs. Mounting: see data table. Grounding: M6 external grounding points. Ambient temperature: -20 ... 50 °C (-4 ... 122 °F) @ T6. EU-type examination certificate: INERIS 14 ATEX 0022X. Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db: . Marking: II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db. UL approval: Enclosure only. cULusClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G: . cULus: Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G. IECEx approval: IECEx INE 14.0029X. Degree of protection: EN60529. Usage category: IEC / EN 60947. CE marking: 0539. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specifications
Electrical specifications
| Operating voltage | 115 ... 460 V |
| Rated frequency | 50/60 Hz |
| Short circuit current limitation | see data table |
| Operating current | 18 A - 170 A |
| Rated insulation voltage | 690 V |
| Function | Power control |
| Contact configurationsee data tableUsage categorysee data tableNumber of polessee data tableAuxiliary contactsOne (1) normally open contactAuxiliary contacts usage categorysee data table | Contact configuration |
| Contact configuration | see data table |
| Usage category | see data table |
| Number of poles | see data table |
| Auxiliary contacts | One (1) normally open contact |
| Auxiliary contacts usage category | see data table |
Mechanical specifications
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 |
| Enclosure range | EJB |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel socket cap head screws |
| Screwssee data tableYield stressmin. 450 N/mm2 | Screws |
| Screws | see data table |
| Yield stress | min. 450 N/mm2 |
| Cover seal | none |
| Flamepath grease | Greasil MS4 or NEVER SEEZ Marine Grade |
| Degree of protection | Type 4, 4X, 7, 9 / IP66 |
| Cable entry | see data table |
| Defined entry area | face B |
| Material | |
| EnclosureCopper-free aluminum alloy or 316L stainless steelFinishFor aluminum: epoxy coated RAL 7005 (grey) | Enclosure |
| Enclosure | Copper-free aluminum alloy or 316L stainless steel |
| Finish | For aluminum: epoxy coated RAL 7005 (grey) |
| Mass | see data table |
| Dimensions | see data table values might differ slightly due to casting and manufacturing tolerances |
| Tightening torque | |
| Nut torque at enclosure (SW1)see datasheets of stopping plugs | Nut torque at enclosure (SW1) |
| Nut torque at enclosure (SW1) | see datasheets of stopping plugs |
| Mounting | see data table |
| Grounding | M6 external grounding points |
Ambient conditions
| Ambient temperature | -20 ... 50 °C (-4 ... 122 °F) @ T6 |
Data for application in connection with hazardous areas
| EU-type examination certificate | INERIS 14 ATEX 0022X |
| Marking II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db | Marking |
| Marking | II 2 GD Ex d IIB+H2 T* Gb Ex tb IIIC Db |
International approvals
| UL approval | Enclosure only |
| cULusClass I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G | cULus |
| cULus | Class I, Division 1, Groups B, C, D Class II, Division 1, Groups E, F, G |
| IECEx approval | IECEx INE 14.0029X |
Conformity
| Degree of protection | EN60529 |
| Usage category | IEC / EN 60947 |
| CE marking | 0539 |
General information
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
