Pepperl Fuchs DS*
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Enclosures (Ex d, Ex e) |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can DS* be shipped?
DS* is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up DS* in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for DS* and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for DS*, subject to availability and destination.

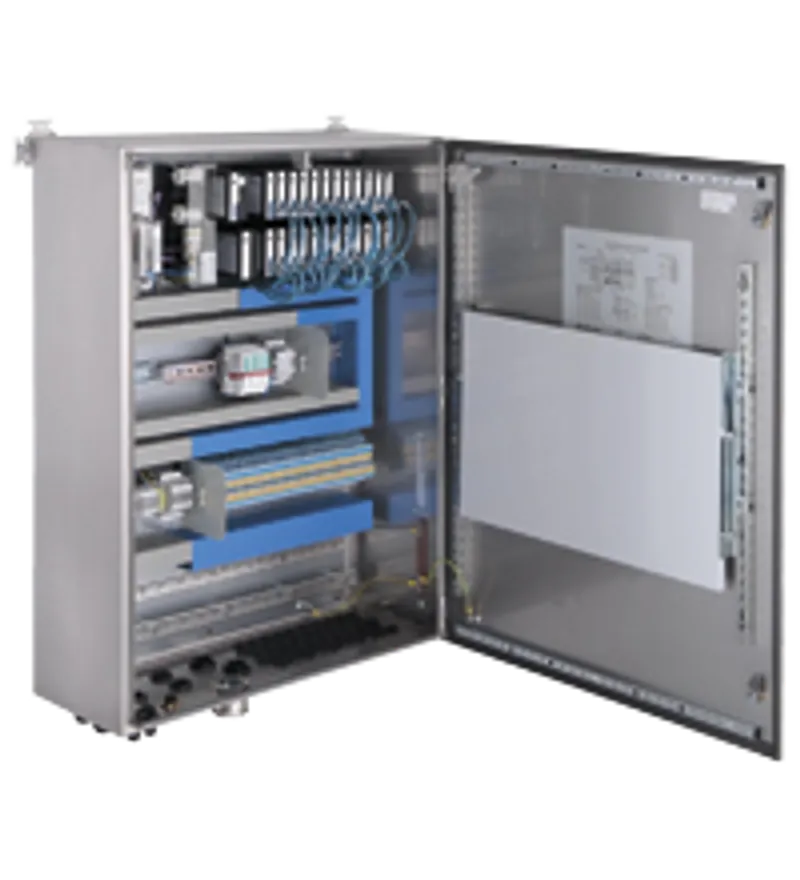

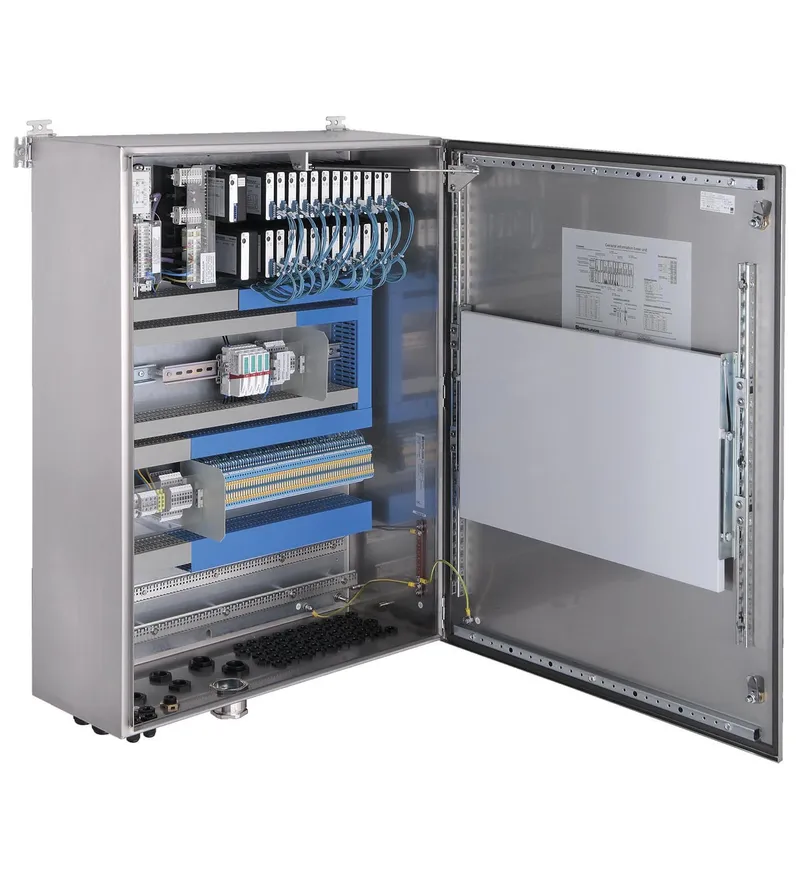

Control and Interface Cabinets Ex tD, Stainless Steel. Stainless Steel enclosure, Various enclosure size and design variants, Installation in Zone 21 and Zone 22, Ex tD certified, Degree of protection IP65 / IP66, Customizable configuration of operators, cable entry quantities and cable gland types as per specification, Wide range of labels and accessories available, Integration of electrical components and operating elements in Ex tD enclosures as per customer specification, Product available for Australia and New Zealand only. Operating voltage: 690 V max.. Operating current: application-specific. Terminal capacity: application-specific. Function: multiple functions as per specification. Enclosure range: DS. Enclosure cover: fully detachable. Cover fixing: stainless steel hexagonal head screws. ScrewsM6Numbersee data tableTightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2: . Screws: M6. Number: see data table. Tightening torque: 3 Nm. Material of screws: stainless steel. Yield stress: min. 450 N/mm2. Cover seal: chloroprene. Degree of protection: IP65/66. Cable entry: see data table cable glands as per specification. Gland plate on face(s)as per specification: . Gland plate on face(s): as per specification. Defined entry area: A, B, C & D. Terminal assembly: . Number of railssee data tableNumber of terminals per railsee data table: . Number of rails: see data table. Number of terminals per rail: see data table. Material: . Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plate3 mm AISI 316L, (1.4404) stainless steelFinishelectropolished or powder coated: . Enclosure: 1.5 mm AISI 316L, (1.4404) stainless steel. Gland plate: 3 mm AISI 316L, (1.4404) stainless steel. Finish: electropolished or powder coated. Mass: see data table valid for empty enclosure, will increase according to integrated components. Dimensions: see data table. Mounting: see data table. Grounding: M6 internal/external brass grounding bolt. Ambient temperature: -20 ... 55 °C (-4 ... 131 °F) depending on integrated components. Max dissipation / ambient temperature / T class: see data table. IECEx approval: IECEx SIM 09.0001X. IECEx markingEx tD A21 T80 °C @ Ta +55 °C: . IECEx marking: Ex tD A21 T80 °C @ Ta +55 °C. Degree of protection: EN 60529. CE marking: 0102. Ordering information: This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service.. Supplementary information: EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com.
Specifications
Electrical specifications
| Operating voltage | 690 V max. |
| Operating current | application-specific |
| Terminal capacity | application-specific |
| Function | multiple functions as per specification |
Mechanical specifications

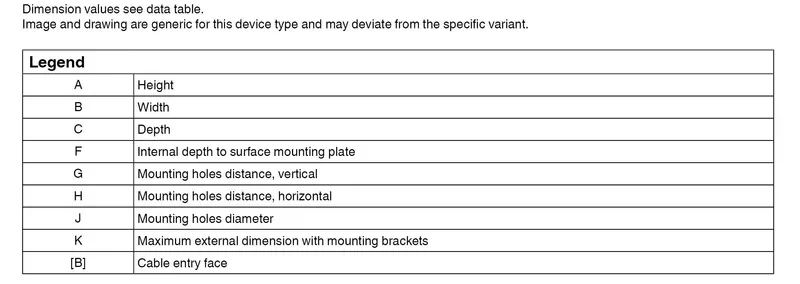

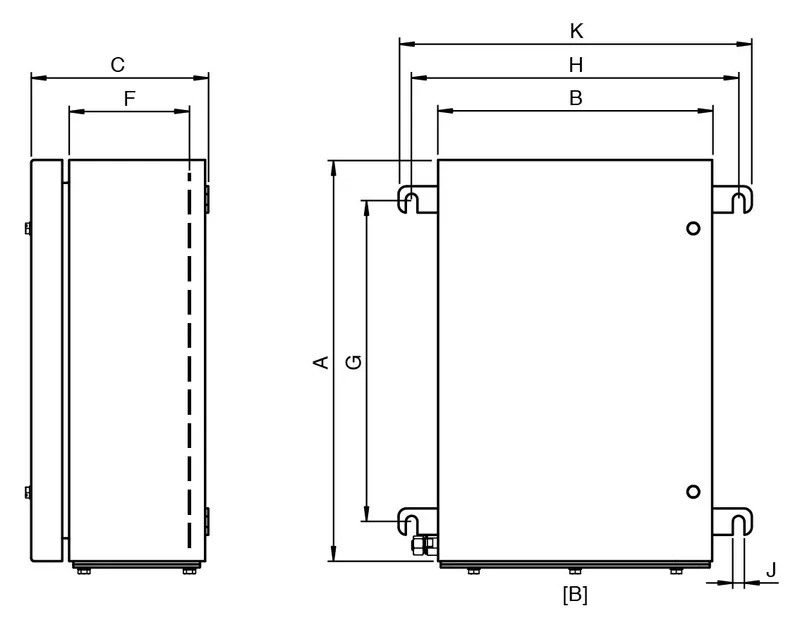

| Enclosure range | DS |
| Enclosure cover | fully detachable |
| Cover fixing | stainless steel hexagonal head screws |
| ScrewsM6Numbersee data tableTightening torque3 NmMaterial of screwsstainless steelYield stressmin. 450 N/mm2 | Screws |
| Screws | M6 |
| Number | see data table |
| Tightening torque | 3 Nm |
| Material of screws | stainless steel |
| Yield stress | min. 450 N/mm2 |
| Cover seal | chloroprene |
| Degree of protection | IP65/66 |
| Cable entry | see data table cable glands as per specification |
| Gland plate on face(s)as per specification | Gland plate on face(s) |
| Gland plate on face(s) | as per specification |
| Defined entry area | A, B, C & D |
| Terminal assembly | |
| Number of railssee data tableNumber of terminals per railsee data table | Number of rails |
| Number of rails | see data table |
| Number of terminals per rail | see data table |
| Material | |
| Enclosure1.5 mm AISI 316L, (1.4404) stainless steelGland plate3 mm AISI 316L, (1.4404) stainless steelFinishelectropolished or powder coated | Enclosure |
| Enclosure | 1.5 mm AISI 316L, (1.4404) stainless steel |
| Gland plate | 3 mm AISI 316L, (1.4404) stainless steel |
| Finish | electropolished or powder coated |
| Mass | see data table valid for empty enclosure, will increase according to integrated components |
| Dimensions | see data table |
| Mounting | see data table |
| Grounding | M6 internal/external brass grounding bolt |
Ambient conditions
| Ambient temperature | -20 ... 55 °C (-4 ... 131 °F) depending on integrated components |
| Max dissipation / ambient temperature / T class | see data table |
International approvals
| IECEx approval | IECEx SIM 09.0001X |
| IECEx markingEx tD A21 T80 °C @ Ta +55 °C | IECEx marking |
| IECEx marking | Ex tD A21 T80 °C @ Ta +55 °C |
Conformity
| Degree of protection | EN 60529 |
| CE marking | 0102 |
General information
| Ordering information | This solution will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. |
