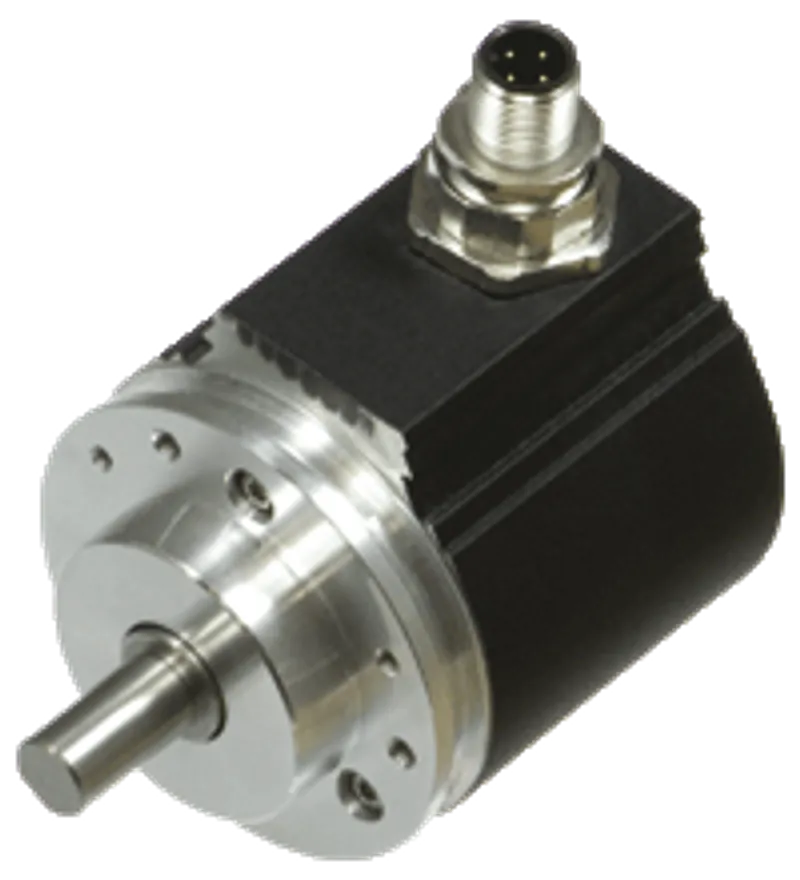

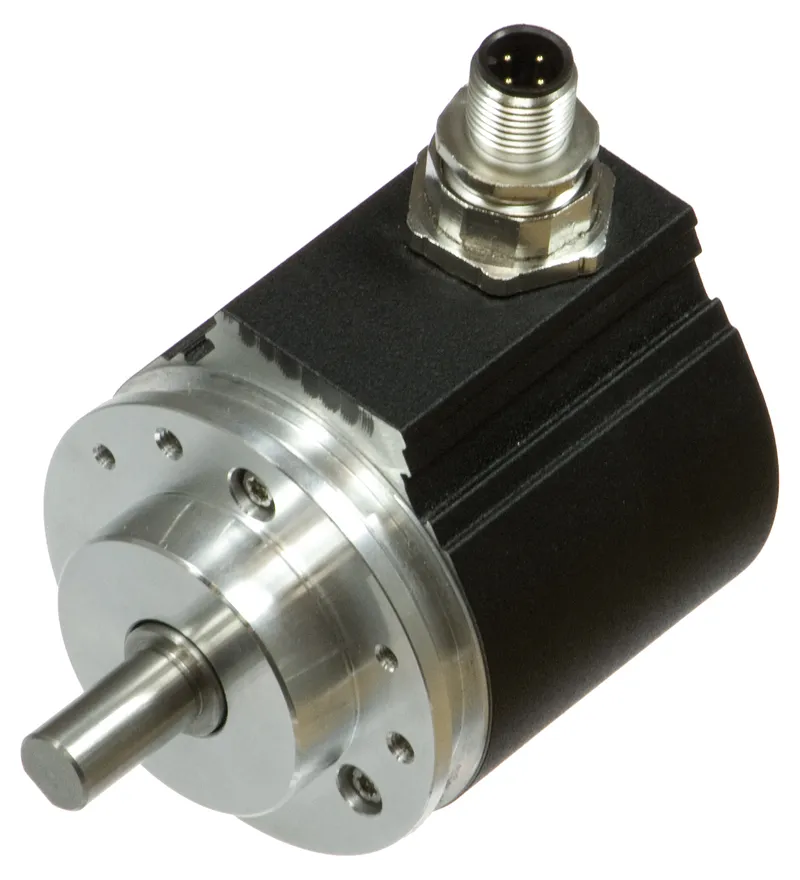

Pepperl Fuchs BVM58
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Absolute Rotary Encoders |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can BVM58 be shipped?
BVM58 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up BVM58 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for BVM58 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for BVM58, subject to availability and destination.
Multiturn absolute rotary encoder. Industrial standard housing ∅58 mm, 16 Bit multiturn, Output code: gray and binary, Transfer of position data with 4 AS-Interface slaves, Parameterization and addressing via AS-Interface, Enclosure type: 58 mm, Type of shaft: Solid shaft, Interface: AS-Interface, Detection type: photoelectric sampling, Interface type: AS-Interface. Detection type: photoelectric sampling. Device type: Multiturn absolute rotary encoder. Operating voltage: 29.5 ... 31.6 V DC. No-load supply current: max. starting current 155 mA , operating current max. 85 mA. Linearity: ± 1 LSB. Output code: programmable, Gray code, binary code. Code course (counting direction): programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending). Interface type: AS-Interface. Resolution: . Overall resolutionSee table, max. 16 Bit: . Overall resolution: See table, max. 16 Bit. Transfer rate: max. 0.167 MBit/s. Standard conformity: AS-Interface. Connector: type V1, M12, 4-pin. Degree of protection: DIN EN 60529, IP65. Climatic testing: DIN EN 60068-2-3, no moisture condensation. Emitted interference: EN 61000-6-4:2007. Noise immunity: EN 61000-6-2:2005. Shock resistance: DIN EN 60068-2-27, 100 g, 11 ms. Vibration resistance: DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz. Operating temperature: -20 ... 70 °C (-4 ... 158 °F). Storage temperature: -25 ... 85 °C (-13 ... 185 °F). Material: housing: powder coated aluminumflange: aluminumshaft: stainless steel. Mass: approx. 360 g. Rotational speed: max. 6000 min -1. Moment of inertia: 30 gcm2. Starting torque: ≤ 2 Ncm. Shaft load: . Axial40 NRadial60 N: . Axial: 40 N. Radial: 60 N. Dimensions: . Diameter58 mm: . Diameter: 58 mm
Specifications
General specifications
| Detection type | photoelectric sampling |
| Device type | Multiturn absolute rotary encoder |
Electrical specifications
| Operating voltage | 29.5 ... 31.6 V DC |
| No-load supply current | max. starting current 155 mA , operating current max. 85 mA |
| Linearity | ± 1 LSB |
| Output code | programmable, Gray code, binary code |
| Code course (counting direction) | programmable,cw ascending (clockwise rotation, code course ascending)cw descending (clockwise rotation, code course descending) |
Interface
| Interface type | AS-Interface |
| Resolution | |
| Overall resolutionSee table, max. 16 Bit | |
| Overall resolution | See table, max. 16 Bit |
| Transfer rate | max. 0.167 MBit/s |
| Standard conformity | AS-Interface |
Connection
| Connector | type V1, M12, 4-pin |
Standard conformity
| Degree of protection | DIN EN 60529, IP65 |
| Climatic testing | DIN EN 60068-2-3, no moisture condensation |
| Emitted interference | EN 61000-6-4:2007 |
| Noise immunity | EN 61000-6-2:2005 |
| Shock resistance | DIN EN 60068-2-27, 100 g, 11 ms |
| Vibration resistance | DIN EN 60068-2-6, 10 g, 10 ... 2000 Hz |
Ambient conditions
| Operating temperature | -20 ... 70 °C (-4 ... 158 °F) |
| Storage temperature | -25 ... 85 °C (-13 ... 185 °F) |
Mechanical specifications
| Material | housing: powder coated aluminumflange: aluminumshaft: stainless steel |
| Mass | approx. 360 g |
| Rotational speed | max. 6000 min -1 |
| Moment of inertia | 30 gcm2 |
| Starting torque | ≤ 2 Ncm |
| Shaft load | |
| Axial40 NRadial60 N | |
| Axial | 40 N |
| Radial | 60 N |

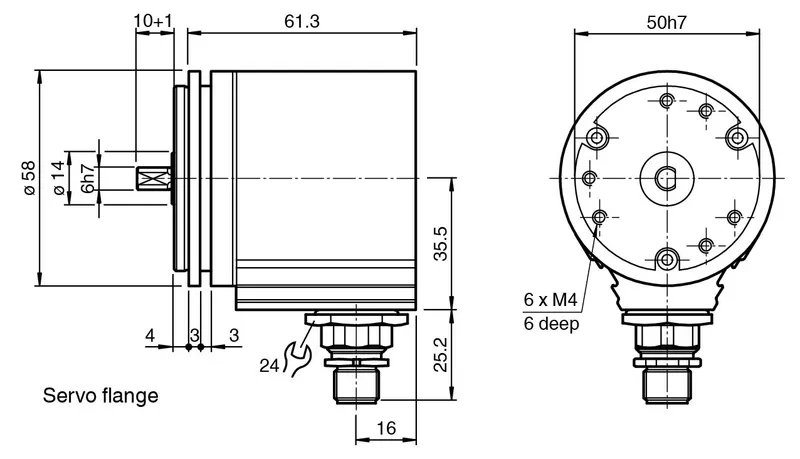

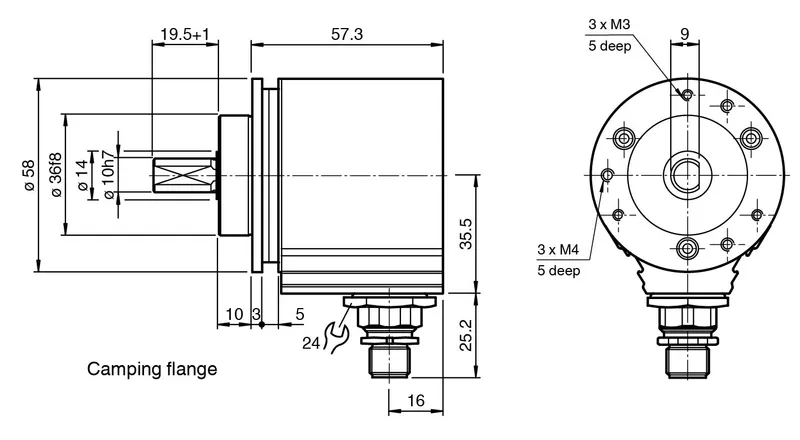

| Dimensions | |
| Diameter58 mm | |
| Diameter | 58 mm |
