Available on request

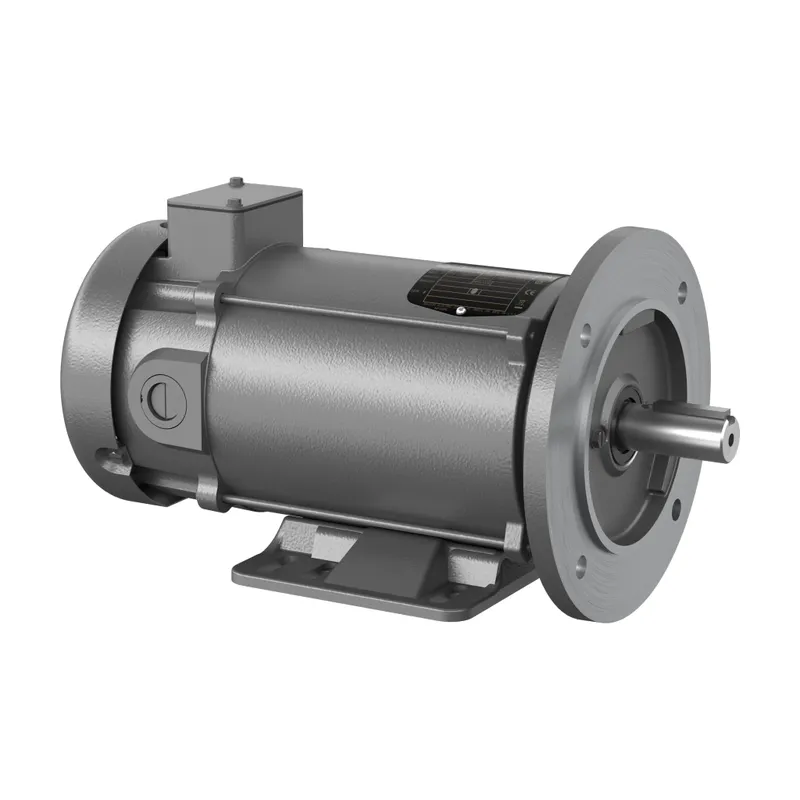

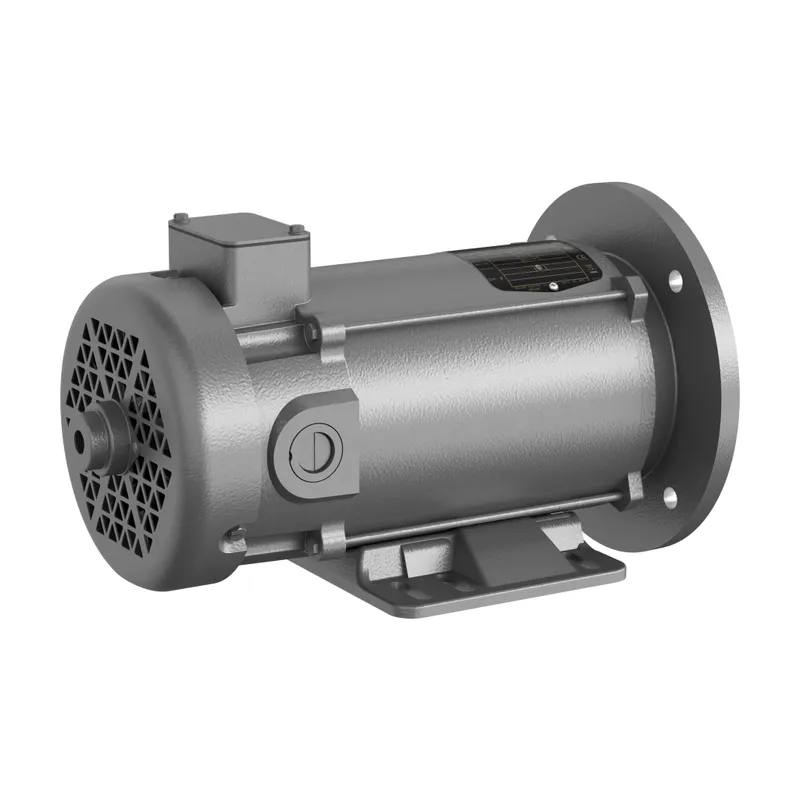

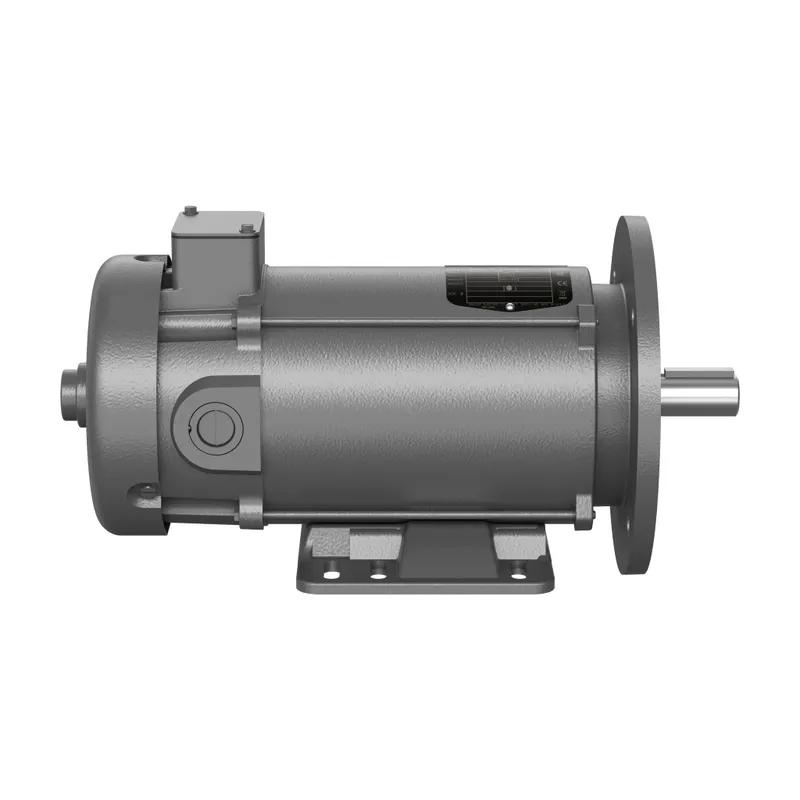

1.1/1.5HP,3000RPM,DC,D90D,3432P,TEF
MPN: VP3468D · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via


Quick facts
| Availability | Confirmed on request |
| Category | Metric Flange SCR |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can VP3468D be shipped?
VP3468D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up VP3468D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for VP3468D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VP3468D, subject to availability and destination.
DC PM IEC Flange 1.5 Hp (VP3468D)
Specifications
Ordering
| Catalog Number | VP3468D |
| Brand / Label | Baldor-Reliance |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85013200 |
| Minimum Order Quantity | 1 piece |
| Order Multiple | 1 piece |
Electrical
| Ambient Temperature | 40 °C |
| Insulation Class | F |
| Service Factor | 1.00 |
| Type of Duty | Continuous |
| Output Power | 1.5 Hp |
Mechanical
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| Frame Material | Steel |
| Motor Frame Size | D90D |
| Motor Base Type | Foot Mounted |
| Brake Present | No |
Dimensions
| Product Net Height | 11.25 in |
| Product Net Weight | 46 lb |
| Product Net Width | 10.5 in |
| Dimension Diagram | 34LY6484 |
Certificates and Declarations
| Certification Agency | CE, CSA, UR, WEEE |
| ETIM 7 | EC001851 - Electric motor |
