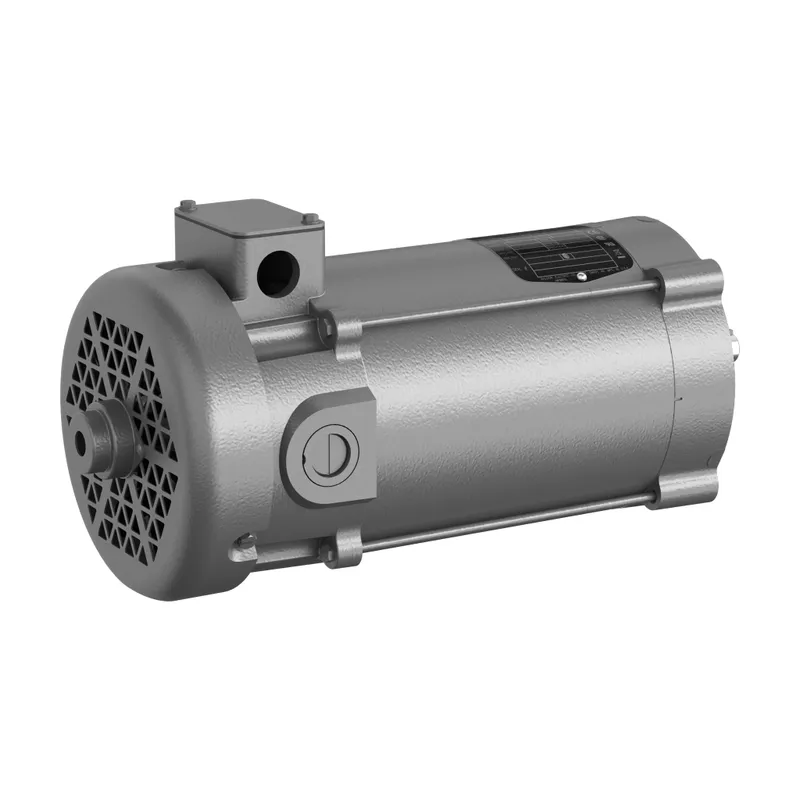

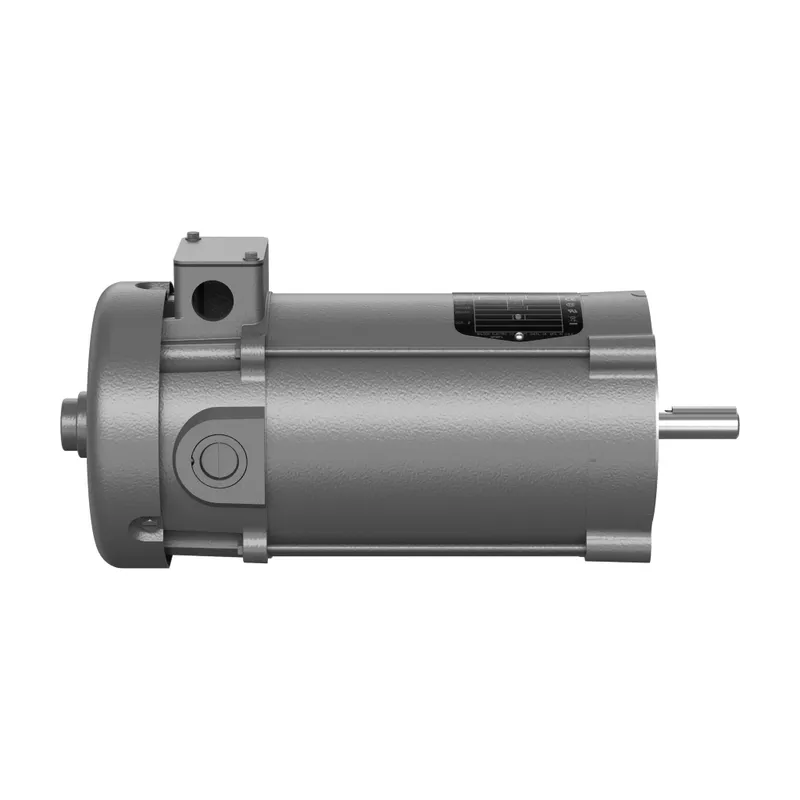

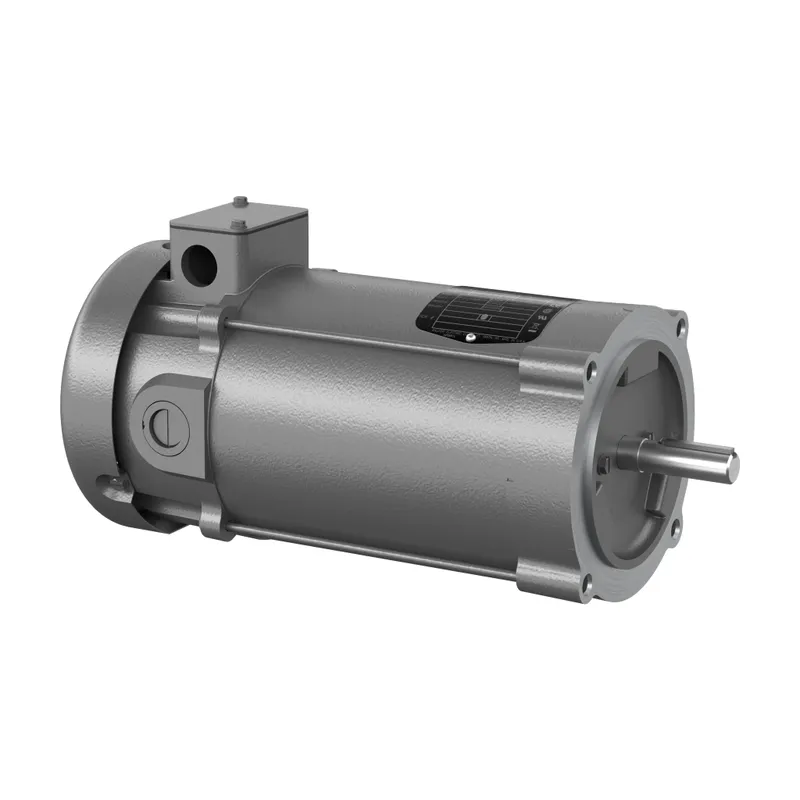

1HP,1750RPM,DC,56C,3435P,TEFC,F1,N

Name: 1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Brand: ABB
SKU: VDP3455

MPN: VDP3455 · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can VDP3455 be shipped?

VDP3455 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up VDP3455 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for VDP3455 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for VDP3455, subject to availability and destination.

1HP,1750RPM,DC,56C,3435P,TEFC,F1,N

Specifications

Additional Information

ABB Type Designation	1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Ambient Temperature	40 °C
Armature Current	5 A A
Armature Inertia	13.66 ft·lbf
Armature Voltage	180 V V
Base Speed	1750 r/min
Bearing	6203, Sealed Bearing
Bearing NDE	6203
Brake Present	No
Brand / Label	Baldor-Reliance
Catalog Number	VDP3455
Certification Agency	CE, CSA, UR, WEEE
Country or Territory of Origin	United States
Customs Tariff Number	85013100
Drive End Flange Type	Standard
Enclosure Type	TEFC
Frame Material	Steel
Frame Size	56
Global Commercial Alias	VDP3455
Gross Volume	3496.049 in³
Gross Weight	46 lb
Insulation Class	F
Invoice Description	1HP,1750RPM,DC,56C,3435P,TEFC,F1,N
Made To Order	No
Medium Description	DC Permanent Magnet Standard, 1/KW.75 HP, 0.000 RPM, Frame Size 56C, TEFC Enclosure, 0.000 V, 0.000 HZ (VDP3455) KW
Minimum Order Quantity	1 piece
Motor Base Type	Footless
Motor Frame Size	56C
Mounting Orientation	Horizontal
Order Multiple	1 piece
Output Power	1 Hp
Product Name	DC Permanent Magnet Standard
Product Net Depth / Length	19.375 in
Product Net Height	13.123 in
Product Net Weight	46 lb
Product Net Width	13.75 in
Product Type	Undefined
Quote Only	No
Rated Speed	1750 r/min
Selling Unit of Measure	piece
Service Factor	1.00
Shaft Diameter	0.63 in
Short Description	1/KW.75 HP, 0.000 RPM, Frame Size 56C, TEFC, 0.000 V KW
Standards	NEMA
Stocked At (Warehouses)	China, Fort Smith, Arkansas, United States, Alaska, United States
Type of Duty	Continuous
