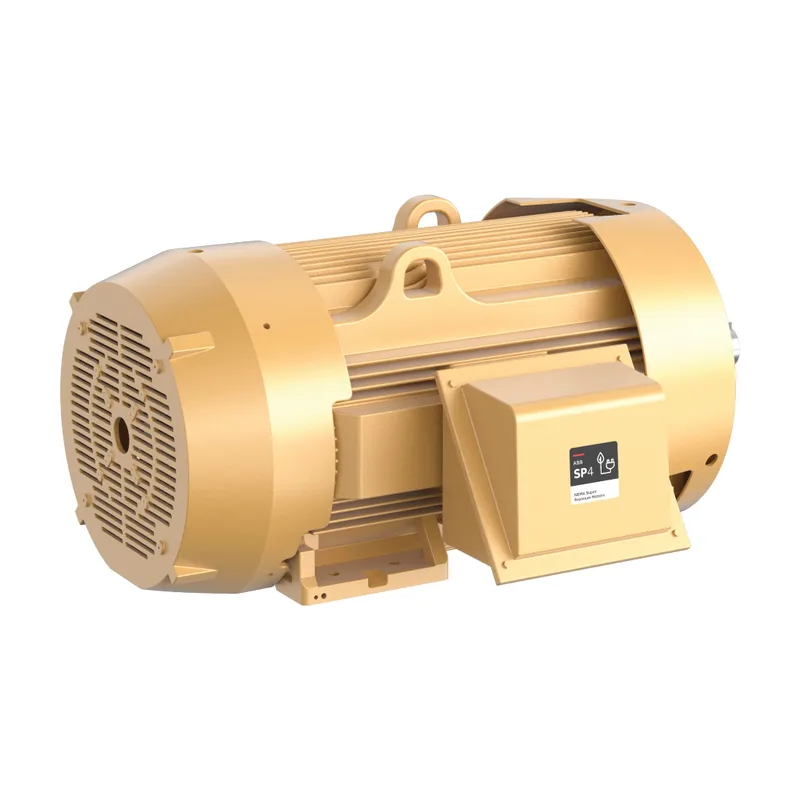

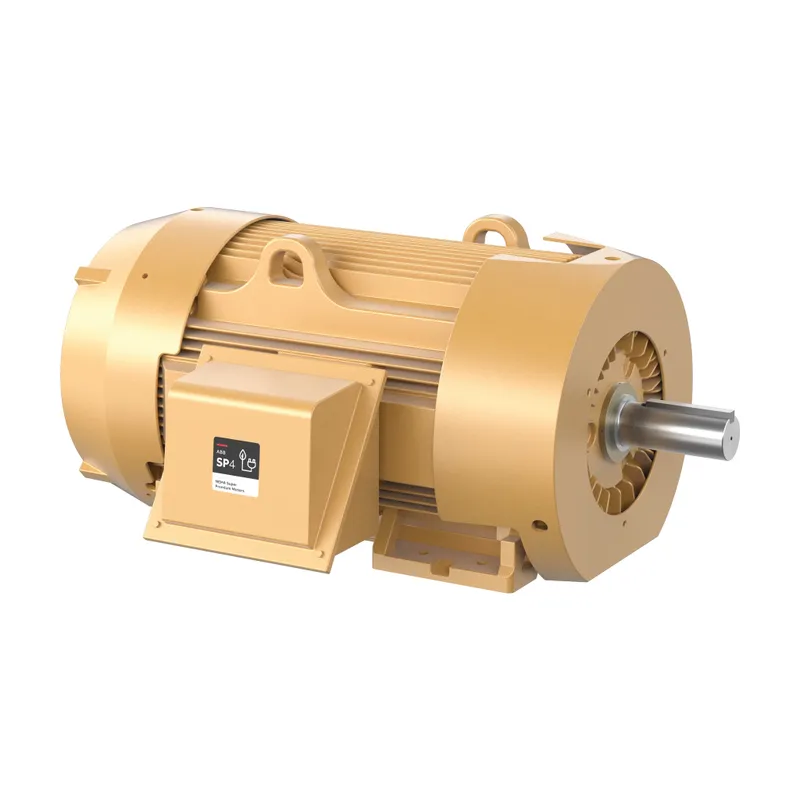

200HP,1790RPM,3PH,60HZ,447T,A44124M

Name: 200HP,1790RPM,3PH,60HZ,447T,A44124M
Brand: ABB
SKU: SPM4407TR-4

MPN: SPM4407TR-4 · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Three phase enclosed motor
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can SPM4407TR-4 be shipped?

SPM4407TR-4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up SPM4407TR-4 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for SPM4407TR-4 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for SPM4407TR-4, subject to availability and destination.

General Purpose Motor 200 Hp 460 V (SPM4407TR-4)

Specifications

Ordering

Catalog Number	SPM4407TR-4
Brand / Label	Baldor-Reliance®
Country or Territory of Origin	United States
Customs Tariff Number	85015381
Minimum Order Quantity	1 piece
Order Multiple	1 piece

Electrical

Ambient Temperature	40 °C
Efficiency Level	Super Premium (NEMA 12-23), IE4, Premium Efficiency (NEMA 12-12)
Insulation Class	H
NEMA Design Code	A A
Number of Phases	3-phase
Number of Poles	4P
Number of Speeds	single_speed
Power Factor	87 %
Rated Efficiency	96.50 %
Service Factor	1.15
Type of Duty	Continuous
Starting of Motor	Direct on line
Synchronous Speed (vsyn)	1800 r/min
Output Power	200 Hp

Mechanical

Drive End Flange Type	Standard
Enclosure Type	TEFC
Explosion Proof Group Class	Class I, Group A, B, C & D, Class II, Group F & G A
Frame Material	Iron
Motor Frame Size	447T
Motor Base Type	Foot Mounted
Mounting Position	F1
Brake Present	No
