Home / ABB / M3AA 180MLC 4
Available on request

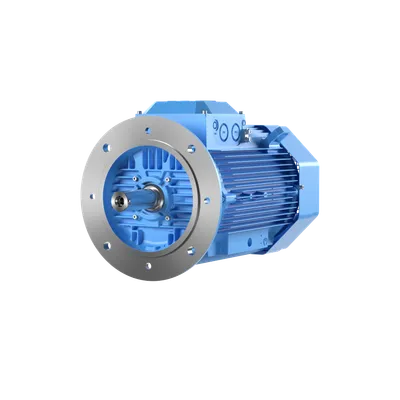

M3AA 180MLC 4

MPN: 3GAA182430-ADKUL01 · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight176 kg

Shipping & availability

When can 3GAA182430-ADKUL01 be shipped?

3GAA182430-ADKUL01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GAA182430-ADKUL01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GAA182430-ADKUL01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA182430-ADKUL01, subject to availability and destination.

(3GAA182430-ADKUL01)

Specifications

Ordering

ABB Type DesignationM3AA 180MLC 4
Invoice DescriptionM3AA 180MLC 4
Product Name3-Phase squirrel cage motor
Product Type3AA3__M3AA_IE3_AA
Country or Territory of OriginChina
Customs Tariff Number85015230
Stocked At (Warehouses)Vittuone, Italy

Electrical

Temperature Class Default--
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE3, Full Load (100%) 93.4 %, Partial Load (75%) 93.0 %, Partial Load (50%) 91.7 %
IE Class Data (60 Hz)IE Class IE3, Full Load (100%) 94.1 %, Partial Load (75%) 93.7 %, Partial Load (50%) 92.4 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS1
Voltage CodeD

Mechanical

Frame MaterialAluminum
Frame Size180
Bearing6310-2Z/C3
Bearing NDE6209-2Z/C3
IM ClassIMB3 IM1001
Terminator Box LocationD-End top

Dimensions

Product Net Weight176 kg kg
Gross Weight186 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC26101100
