Available on request

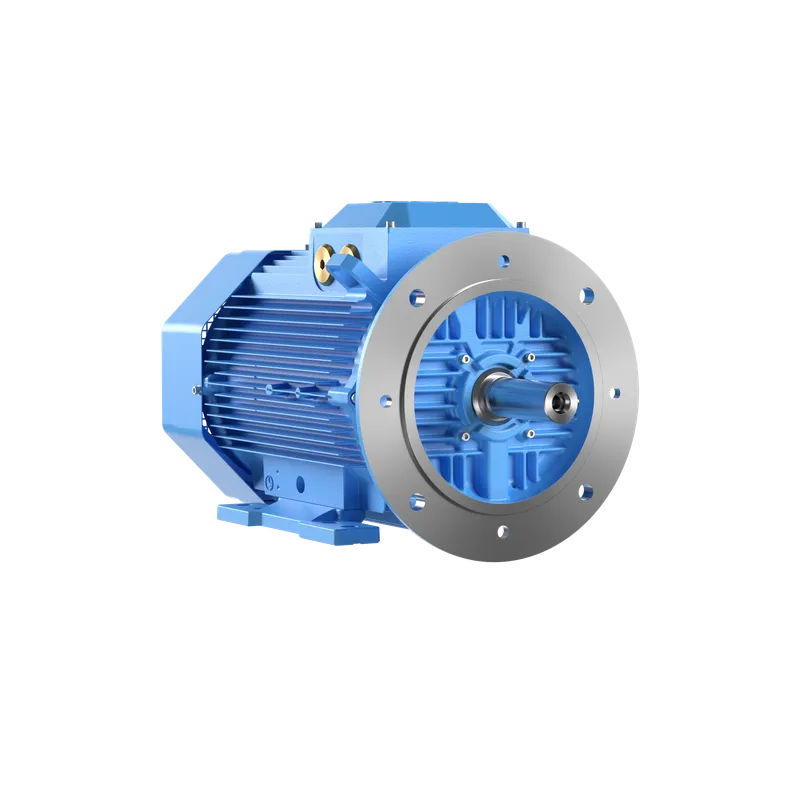

M3AA 160MLB 2
MPN: 3GAA161937-HSK · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 105 kg |
Shipping & availability
When can 3GAA161937-HSK be shipped?
3GAA161937-HSK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GAA161937-HSK in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GAA161937-HSK and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GAA161937-HSK, subject to availability and destination.
(3GAA161937-HSK)
Specifications
Ordering
| ABB Type Designation | M3AA 160MLB 2 |
| Product Name | 3-Phase squirrel cage motor |
| Product Type | 3AA3__M3AA_IE3_AA |
| Country or Territory of Origin | China, Sweden, Poland |
| Customs Tariff Number | 85015230 |
| Stocked At (Warehouses) | Shanghai, China |
Electrical
| Temperature Class Default | -- |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC411 |
| IE Class Data (50 Hz) | IE Class IE3, Full Load (100%) 92.0 %, Partial Load (75%) 93.0 %, Partial Load (50%) 92.0 % |
| IE Class Data (60 Hz) | IE Class IE3, Full Load (100%) 92.0 %, Partial Load (75%) 92.0 %, Partial Load (50%) 92.0 % |
| IP Class | IP55 |
| Insulation Class | ICLF |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S1 |
| Voltage Code | S |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 160 |
| Bearing | 6309-2Z/C3 |
| Bearing NDE | 6209-2Z/C3 |
| Lubrication | For life |
| IM Class | IMB35 IM2001 |
| Terminator Box Location | D-End top |
Dimensions
| Product Net Weight | 105 kg kg |
| Gross Weight | 115 kg kg |
Environmental
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
| SCIP | 27ac6190-e1ce-4080-8654-6552aaabbe58 Finland |
External Classifications and Standards
| Standards | IEC 60034-1 |
