Home / ABB / 20HP,1175RPM,3PH,60HZ,286T,TEFC,F1
Available on request

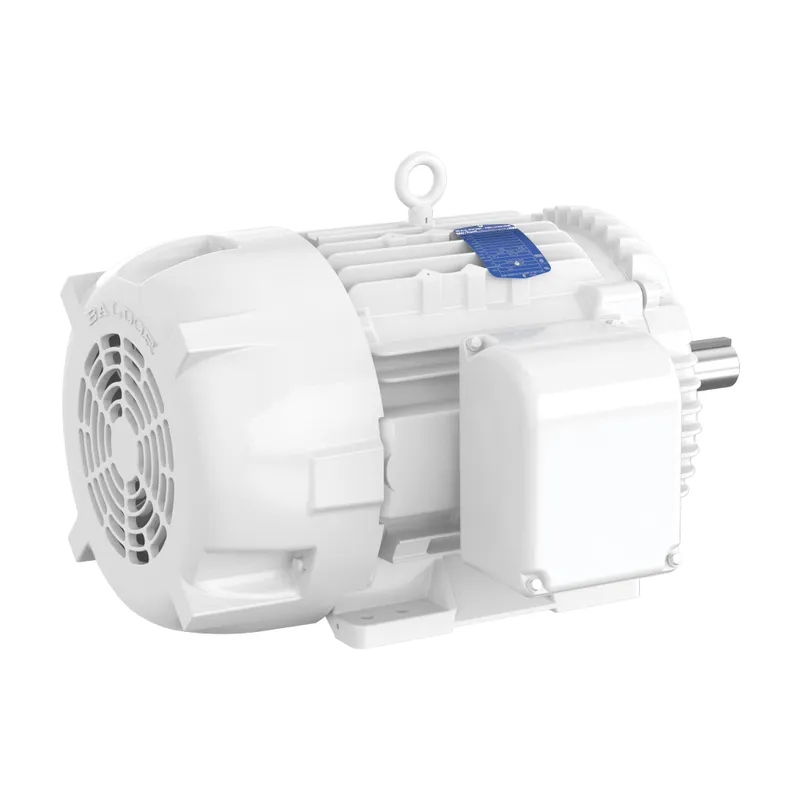

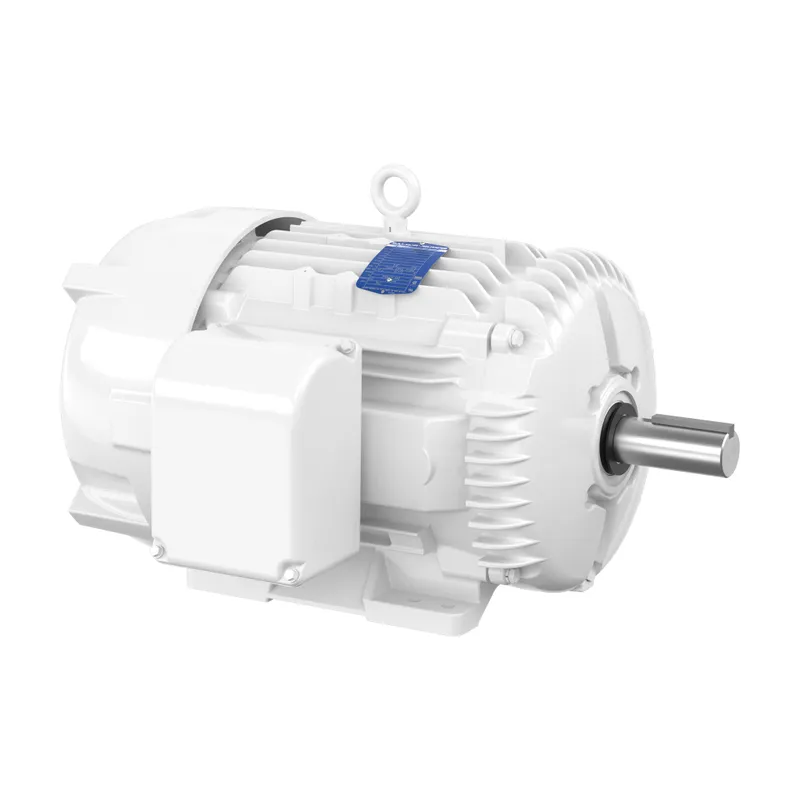

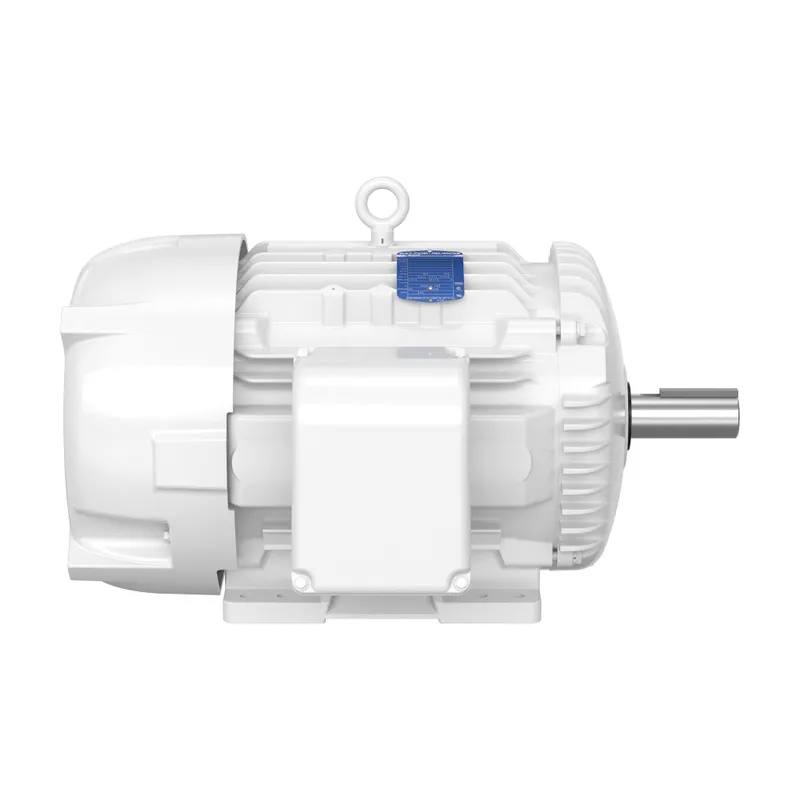

20HP,1175RPM,3PH,60HZ,286T,TEFC,F1

MPN: EWDM4102T · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryStainless Steel
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can EWDM4102T be shipped?

EWDM4102T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up EWDM4102T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for EWDM4102T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for EWDM4102T, subject to availability and destination.

Washdown Motor 20 Hp 230 V (EWDM4102T)

Specifications

Ordering

Catalog NumberEWDM4102T
Brand / LabelBaldor-Reliance
Country or Territory of OriginUnited States
Customs Tariff Number85015220
Minimum Order Quantity1 piece
Order Multiple1 piece

Electrical

Ambient Temperature40 °C
Duty Time60 Min
Efficiency LevelPremium Efficiency (NEMA 12-12)
Insulation ClassF
NEMA Design CodeB
Number of Phases3-phase
Number of Poles6P
Number of SpeedsSingle Speed
Power Factor78 %
Rated Efficiency91.70 %
Service Factor1.15
Type of DutyContinuous
Starting of MotorDirect On Line
Synchronous Speed (vsyn)1200 r/min
Output Power20 Hp

Mechanical

Drive End Flange TypeStandard
Enclosure TypeTEFC
Frame MaterialCast Iron
Motor Frame Size286T
Motor Base TypeFoot Mounted
Mounting PositionF1
Brake PresentNo

Dimensions

Product Net Height19.625 in
Product Net Weight429 lb
Product Net Width23.75 in
Dimension Diagram10LYN057

Certificates and Declarations

Certification AgencyCSA EEV, CURUSEEV, NEMA_PREMIUM, UR
ETIM 7EC001851 - Electric motor
