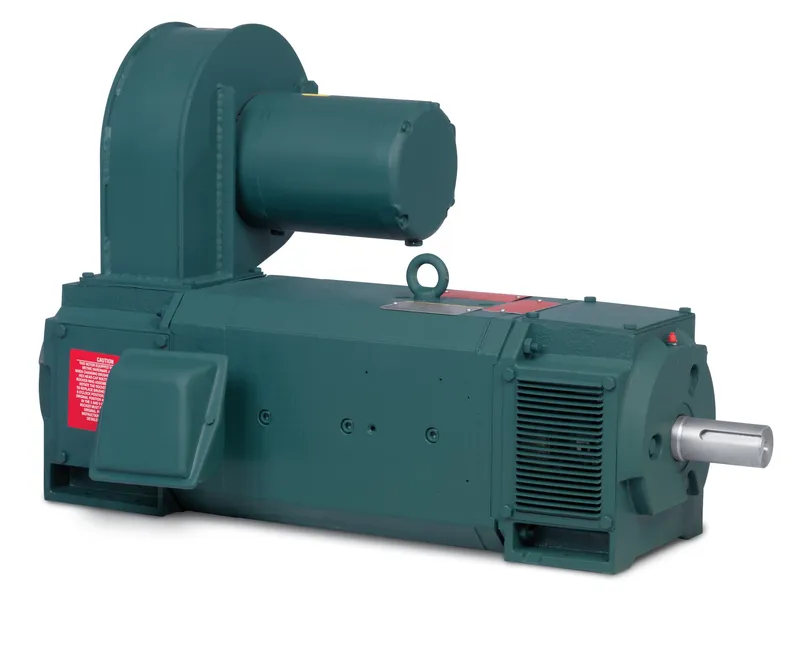

25 1750/2300 MC2812ATZ TEFC 240V
MPN: D2525R · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can D2525R be shipped?
D2525R is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up D2525R in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for D2525R and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for D2525R, subject to availability and destination.
25 1750/2300 MC2812ATZ TEFC 240V
Specifications
Additional Information
| ABB Type Designation | 25 1750/2300 MC2812ATZ TEFC 240V |
| Ambient Temperature | 40 °C |
| Armature Current | 87 A A |
| Armature Voltage | 240 V V |
| Base Speed | 1750 r/min |
| Bearing | 65BC03J30X |
| Bearing NDE | 55BC02J30X |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | D2525R |
| Certification Agency | CCSA US |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Dimension Diagram | 609951-013 |
| Drive End Flange Type | Standard |
| Enclosure Type | TEFC |
| ETIM 7 | EC001851 - Electric motor |
| Field Current | 2.73 A, 1.96 A A |
| Field Voltage | 150 V V |
| Frame Material | Explosed Laminations |
| Frame Size | Undefined |
| Global Commercial Alias | D2525R |
| Gross Volume | 30922.5 in³ |
| Gross Weight | 819.999 lb |
| Horsepower Rating UL/CSA | 25.000 Hp |
| Insulation Class | F |
| Invoice Description | 25 1750/2300 MC2812ATZ TEFC 240V |
| Made To Order | No |
| Maximum Speed | 2300 r/min |
| Medium Description | TEFC Enclosure, (D2525R) |
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Rigid |
| Motor Frame Size | MC2812ATZ |
| Mounting Orientation | Horizontal |
| Order Multiple | 1 piece |
| Output Power | 25 Hp |
| Product Name | DC Integral HP RPMIII Wound Field |
| Product Net Depth / Length | 47.5 in |
| Product Net Height | 21 in |
| Product Net Weight | 819.999 lb |
| Product Net Width | 31 in |
| Product Type | Undefined |
| Quote Only | No |
| Rated Speed | 1750 r/min |
| Selling Unit of Measure | piece |
| Service Factor | 1.00 |
| Service Factor Percentage | 1.00 % |
| Shaft Diameter | 2.37 in |
| Short Description | TEFC, |
| Standards | NEMA |
| Stocked At (Warehouses) | China, Fort Smith, Arkansas, United States, Alaska, United States |
| Type of Duty | Continuous |
| Voltage Code | 240 Va, 150 Vf |
