Available on request

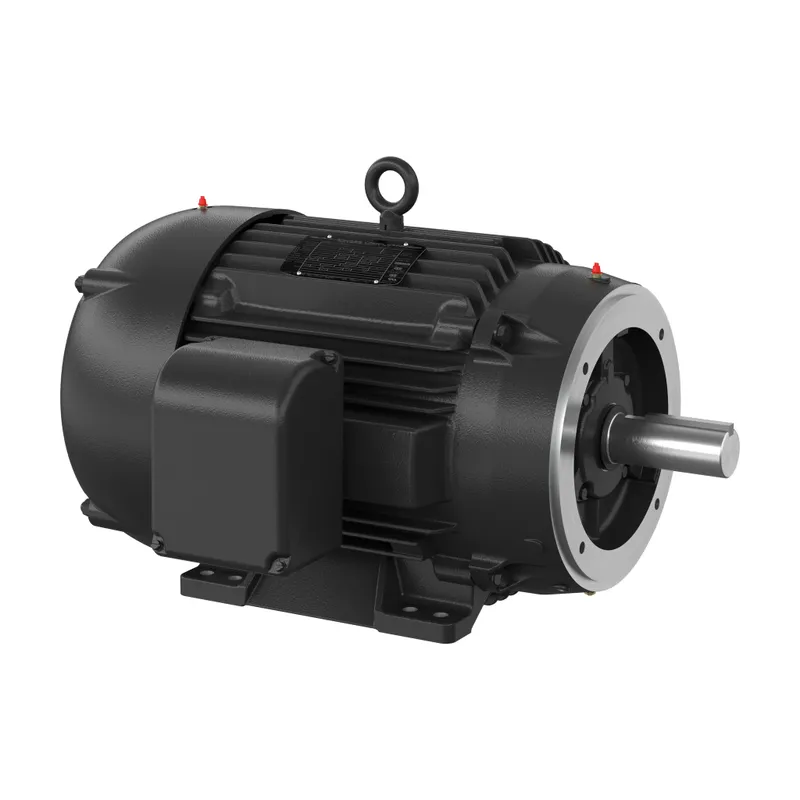

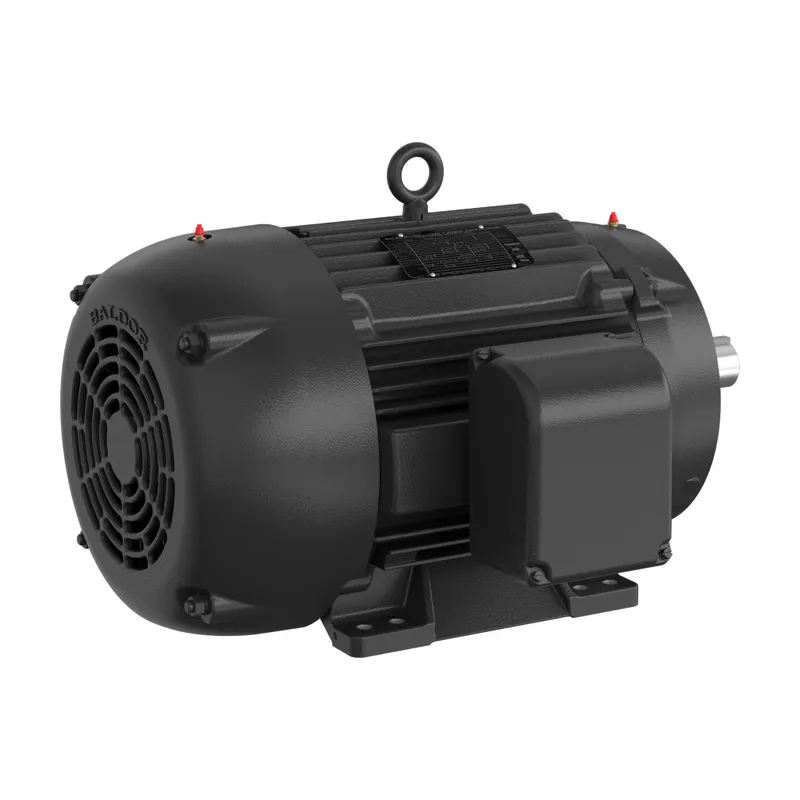

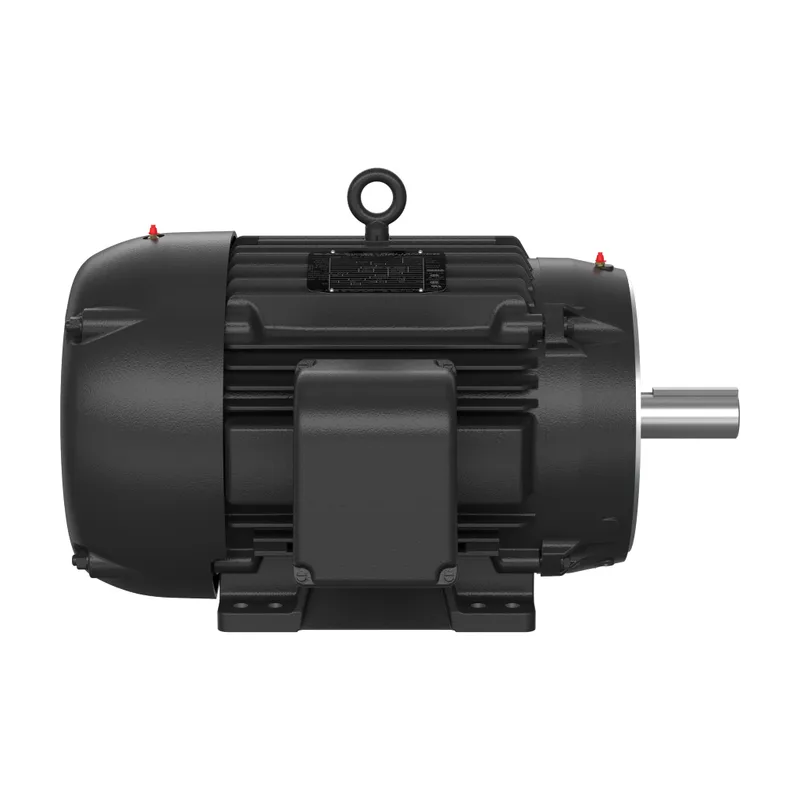

25HP,1180RPM,3PH,60HZ,324TC,1260M,T
MPN: CXT3256T · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CXT3256T be shipped?
CXT3256T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CXT3256T in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CXT3256T and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CXT3256T, subject to availability and destination.
25HP,1180RPM,3PH,60HZ,324TC,1260M,TEFC,F
Specifications
Additional Information
| ABB Type Designation | 25HP,1180RPM,3PH,60HZ,324TC,1260M,T |
| Ambient Temperature | 40 °C |
| Bearing | 6312 |
| Bearing NDE | 6311 |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | CXT3256T |
| Certification Agency | CCSA US, CSA EEV, NEMA PREMIUM, UR |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015230 |
| Drive End Flange Type | C-Face |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Enclosure Type | TEFC |
| Explosion Proof Group Class | Class I, Group A, B, C & D A |
| Frame Material | Iron |
| Frame Size | Undefined |
| Global Commercial Alias | CXT3256T |
| Gross Volume | 26590.25 in³ |
| Gross Weight | 591.999 lb |
| Insulation Class | F |
| Invoice Description | 25HP,1180RPM,3PH,60HZ,324TC,1260M,TEFC,F |
| Made To Order | No |
| Medium Description | Frame Size 324Tc, C-Face Mounting, 3Phase Phase, TEFC Enclosure, (CXT3256T) |
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Rigid |
| Motor Frame Size | 324TC |
| Mounting Orientation | Horizontal |
| Mounting Position | F1 |
| NEMA Design Code | A A |
| Number of Phases | 3-phase |
| Number of Poles | 6P |
| Number of Poles (High) | 6 |
| Number of Speeds | Single Speed |
| Order Multiple | 1 piece |
| Output Power | 25 Hp |
| Power Factor | 79 % |
| Product Name | LV Severe Duty Motors |
| Product Net Depth / Length | 36.5 in |
| Product Net Height | 23.5 in |
| Product Net Weight | 591.999 lb |
| Product Net Width | 31 in |
| Product Type | Undefined |
| Quote Only | No |
| Rated Current (In) | 63 A, 32 A A |
| Rated Efficiency | 93 % |
| Rated Speed | 1180 r/min |
| Selling Unit of Measure | piece |
| Service Factor | 1.15 |
| Shaft Diameter | 2.13 in |
| Short Description | Frame Size 324Tc, C-Face, 3Phase PH, TEFC, |
| Standards | NEMA |
| Starting of Motor | Direct On Line |
| Stocked At (Warehouses) | China, Fort Smith, Arkansas, United States, Alaska, United States |
| Synchronous Speed (vsyn) | 1200 r/min |
| Temperature Class | T3 |
| Type of Duty | Continuous |
| Voltage Rating | 230 V, 460 V V |
