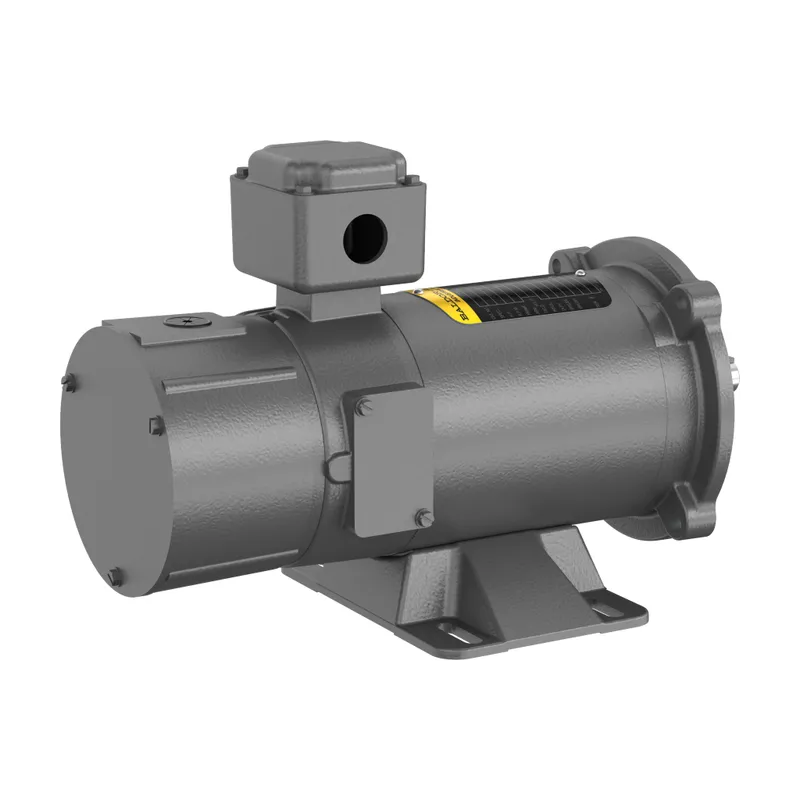

.5HP,1750RPM,DC,56C,3336P,TENV,F1,N
MPN: CDPT3326 · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can CDPT3326 be shipped?
CDPT3326 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up CDPT3326 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for CDPT3326 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for CDPT3326, subject to availability and destination.
.5HP,1750RPM,DC,56C,3336P,TENV,F1,N
Specifications
Additional Information
| ABB Type Designation | .5HP,1750RPM,DC,56C,3336P,TENV,F1,N |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| Armature Current | 2.5 A A |
| Armature Inertia | 8.42 ft·lbf |
| Armature Voltage | 180 V V |
| Base Speed | 1750 r/min |
| Bearing | 6203, Sealed Bearing |
| Bearing NDE | 6203 |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | CDPT3326 |
| Certification Agency | CE, CSA, UR, WEEE |
| Country or Territory of Origin | United States |
| Customs Tariff Number | 85015100 |
| Dimension Diagram | 33LY2657 |
| Direction of Rotation | Both sides |
| Drive End Flange Type | Standard |
| Enclosure Type | TENV |
| ETIM 7 | EC001851 - Electric motor |
| Frame Material | Steel |
| Frame Size | 56 |
| Global Commercial Alias | CDPT3326 |
| Gross Volume | 5274.135 in³ |
| Gross Weight | 35 lb |
| Horsepower Rating UL/CSA | 0.500 Hp |
| IC Class | TENV |
| IE Class Data (50 Hz) | IE Class NA |
| IE Class Data (60 Hz) | IE Class NA |
| IM Class | F1 |
| Insulation Class | F |
| Invoice Description | .5HP,1750RPM,DC,56C,3336P,TENV,F1,N |
| Lubrication | Regreasable |
| Made To Order | No |
| Medium Description | DC Permanent Magnet Standard, .5/KW.37 HP, 0.000 RPM, Frame Size 56C, TENV Enclosure, 0.000 V, 0.000 HZ (CDPT3326) KW |
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Foot Mounted |
| Motor Frame Size | 56C |
| Mounting Orientation | Horizontal |
| Order Multiple | 1 piece |
| Output Power | 0.5 Hp |
| Product Name | DC Permanent Magnet Standard |
| Product Net Depth / Length | 21.625 in |
| Product Net Height | 15.125 in |
| Product Net Weight | 35 lb |
| Product Net Width | 16.125 in |
| Product Type | Undefined |
| Quote Only | No |
| Rated Speed | 1750 r/min |
| Replaced Product ID (OLD) | 7B33-2657Z139G1 |
| Selling Unit of Measure | piece |
| Service Factor | 1.00 |
| Service Factor Percentage | 1.00 % |
| Shaft Diameter | 0.63 in |
| Short Description | .5/KW.37 HP, 0.000 RPM, Frame Size 56C, TENV, 0.000 V KW |
| Standards | NEMA |
| Stocked At (Warehouses) | China, Fort Smith, Arkansas, United States, Alaska, United States |
| Temperature Class Default | -- |
| Two Speed Motor | No |
| Type of Duty | Continuous |
| Voltage Code | 180 Va |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) cm |
