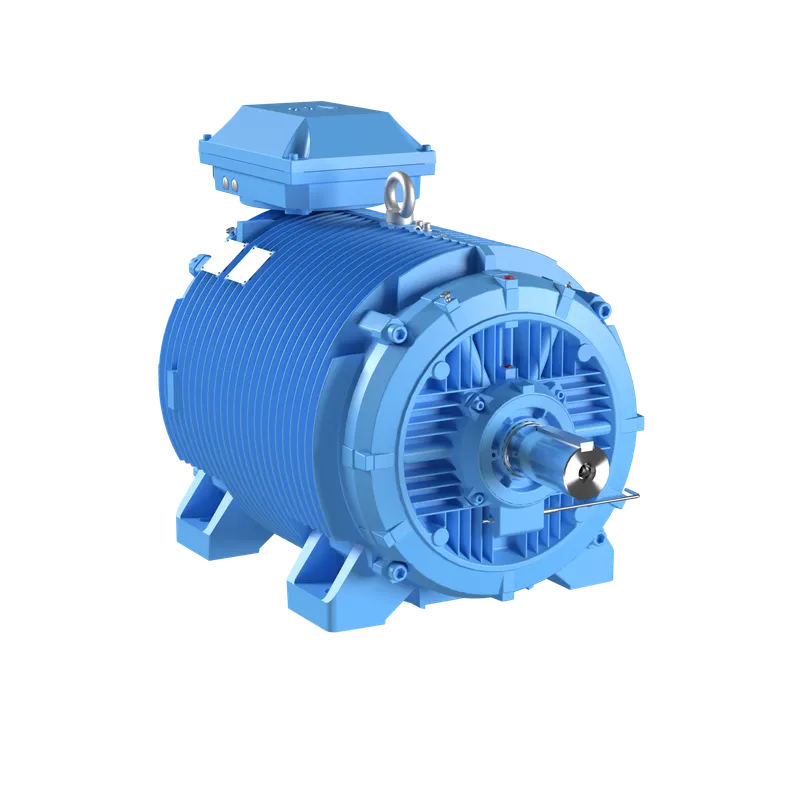

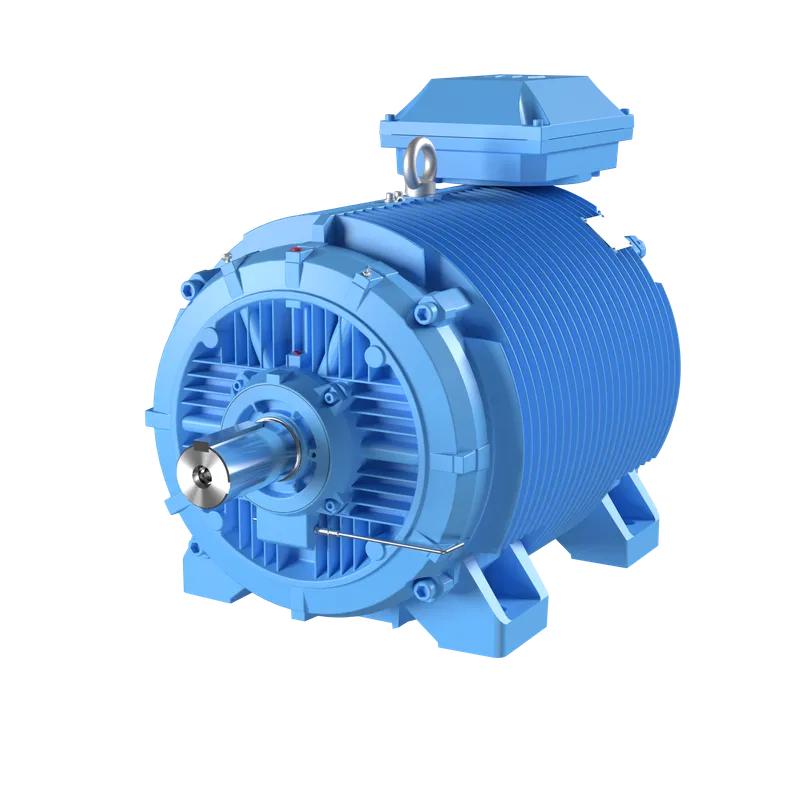

M3RP 315LB 8

Name: M3RP 315LB 8
Brand: ABB
SKU: 3GRP314524-ADG

MPN: 3GRP314524-ADG · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	950 kg

Shipping & availability

When can 3GRP314524-ADG be shipped?

3GRP314524-ADG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GRP314524-ADG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GRP314524-ADG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GRP314524-ADG, subject to availability and destination.

M3RP 315LB 8

Specifications

Ordering

ABB Type Designation	M3RP 315LB 8
Invoice Description	M3RP 315LB 8
Product Name	3-Phase squirrel cage motor
Product Type	3RP0__M3RP_CI
Country or Territory of Origin	Finland
Customs Tariff Number	85015230
Replaced Product ID (OLD)	3GRP314520-AXG
Medium Description	37kW, 8 Poles, Frame Size 315, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GRP314524-ADG)
Short Description	37kW, 8P, Frame Size 315, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	Y
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	400 V V
Operating Frequency (fsw)	50.000 Hz Hz
Output Power	37 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC410
IE Class Data (50 Hz)	IE Class NA, Full Load (100%) 93.1 %, Partial Load (75%) 92.5 %, Partial Load (50%) 90.8 %
IP Class	IP55
Insulation Class	ICLF
Direction of Rotation	Both sides
Number of Poles (High)	8
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D
