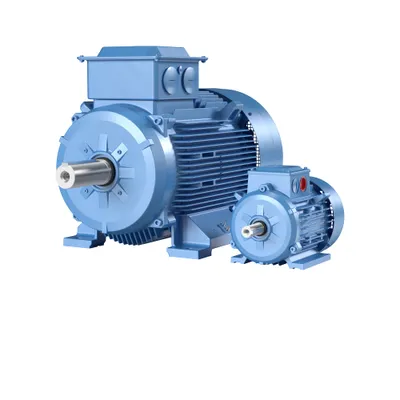

M2QA 90SLB 2

MPN: 3GQA091020-BSP · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight35 kg

Shipping & availability

When can 3GQA091020-BSP be shipped?

3GQA091020-BSP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GQA091020-BSP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GQA091020-BSP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GQA091020-BSP, subject to availability and destination.

M2QA 90SLB 2

Specifications

Ordering

ABB Type DesignationM2QA 90SLB 2
Invoice DescriptionM2QA 90SLB 2
Product Name3-Phase squirrel cage motor
Product TypeCQA5__M2QA_IE4_CI
Country or Territory of OriginChina
Customs Tariff Number85015220
Medium Description?kW, 2P, Frame Size 90, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GQA091020-BSP) kW
Short Description?kW, 2P, Frame Size 90, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default--
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE5, Full Load (100%) 90.2 %, Partial Load (75%) 90.8 %, Partial Load (50%) 90.3 %
IE Class Data (60 Hz)IE Class IE4, Full Load (100%) 89.7 %, Partial Load (75%) 89.6 %, Partial Load (50%) 88.1 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)2
Two Speed MotorNo
Type of DutyS1
Voltage CodeS

Mechanical

Frame MaterialCast Iron
Frame Size90
Bearing6205-2Z/C3
Bearing NDE6205-2Z/C3
IM ClassIMB5 IM3001
Terminator Box LocationD-End top

Dimensions

Product Net Depth / Length390 mm mm
Product Net Height229 mm mm
Product Net Width200 mm mm
Product Net Weight35 kg kg
Gross Weight36 kg kg

External Classifications and Standards

UNSPSC26101100
