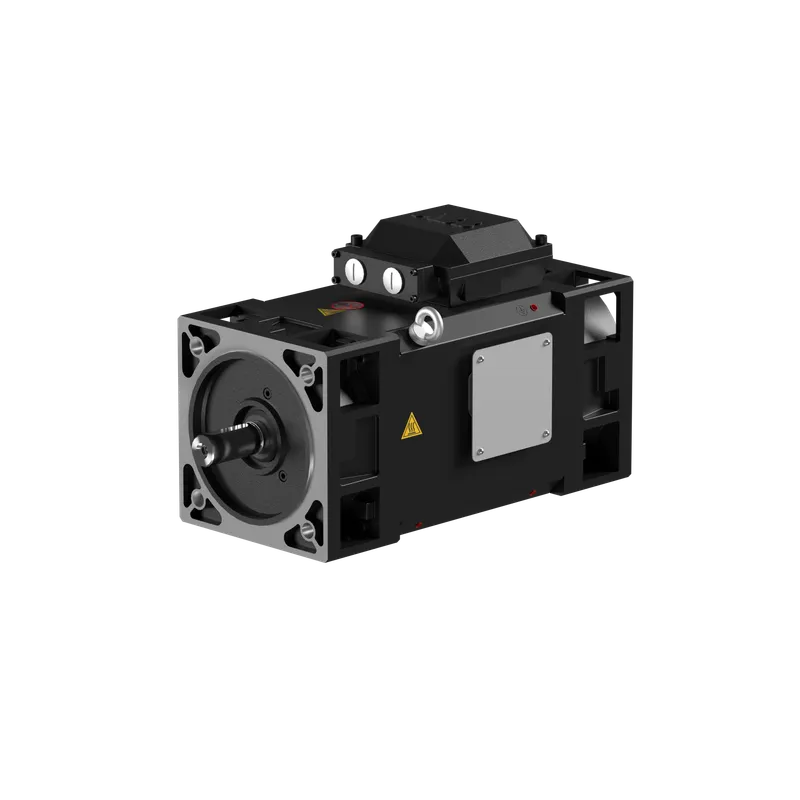

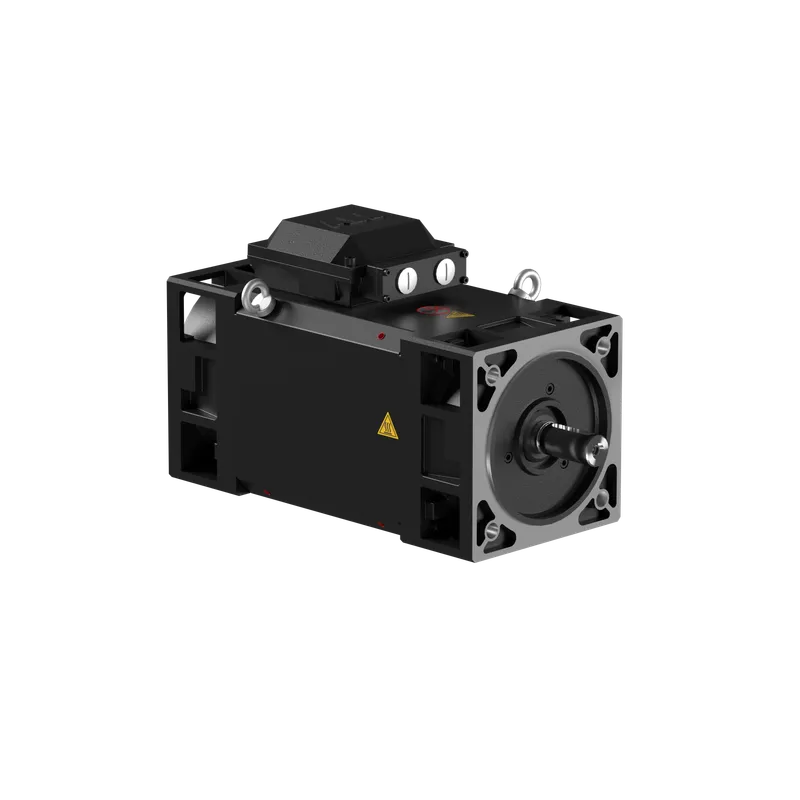

M3LT 80C 4
MPN: 3GLT082736-HDB · Brand: ABB
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | Flameproof IEC Low voltage motors |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 26.5 kg |
Shipping & availability
When can 3GLT082736-HDB be shipped?
3GLT082736-HDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3GLT082736-HDB in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3GLT082736-HDB and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GLT082736-HDB, subject to availability and destination.
HDP Induction Motors, 7.5 kW, 400 V (3GLT082736-HDB)
Specifications
Ordering
| ABB Type Designation | M3LT 80C 4 |
| Invoice Description | M3LT 80C 4 |
| Product Name | High dynamic performance motors |
| Product Type | 3LTB__M3LT__HDP__water_cooled_motor_ |
| Country or Territory of Origin | Finland |
| Customs Tariff Number | 85015220 |
| Medium Description | 7.5kW, 4P, Frame Size 80, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB35/IM2001 Mounting (3GLT082736-HDB) |
| Short Description | 7.5kW, 4P, Frame Size 80, 3PH, 400V, 50Hz, IP55, IMB35/IM2001 |
Electrical
| Connection Configuration | Y |
| Temperature Class Default | -- |
| Input Voltage (Uin) | 400 V V |
| Frequency (f) | 50 Hz Hz |
| Motor Operational Voltage | 380 V V |
| Operating Frequency (fsw) | 103.500 Hz Hz |
| Output Power | 7.5 kW kW |
| Altitude | 1000 m m |
| Ambient Temperature | 40 °C |
| IC Class | IC71W |
| IE Class Data (50 Hz) | IE Class IE2, Full Load (100%) 87.9 %, Partial Load (75%) 88.6 %, Partial Load (50%) 87.2 % |
| IE Class Data (60 Hz) | IE Class IE2, Full Load (100%) 88.7 %, Partial Load (75%) 88.7 %, Partial Load (50%) 87.2 % |
| IP Class | IP55 |
| Insulation Class | ICLH |
| Direction of Rotation | Both sides |
| Number of Poles (High) | 4 |
| Two Speed Motor | No |
| Type of Duty | S9 |
| Voltage Code | D |
Mechanical
| Frame Material | Aluminum |
| Frame Size | 80 |
| Bearing | 6305-2Z |
| Bearing NDE | 6305-2Z |
| IM Class | IMB35 IM2001 |
| Terminator Box Location | N-End top |
Dimensions
| Product Net Depth / Length | 377 mm mm |
| Product Net Height | 210 mm mm |
| Product Net Width | 166 mm mm |
| Product Net Weight | 26.5 kg kg |
| Gross Weight | 29.5 kg kg |
Environmental
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) cm |
External Classifications and Standards
| UNSPSC | 26101100 |
