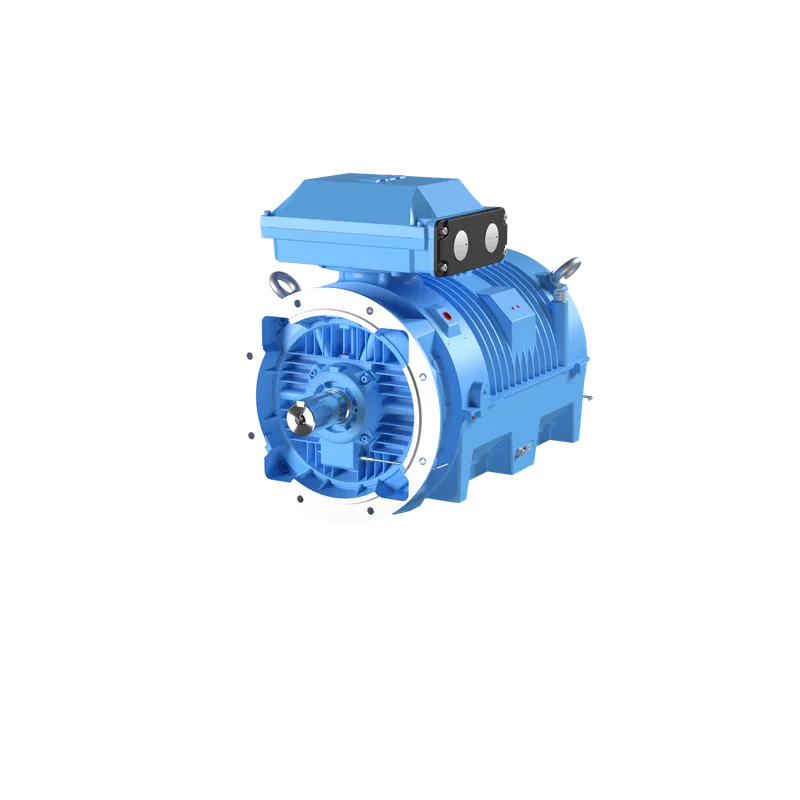

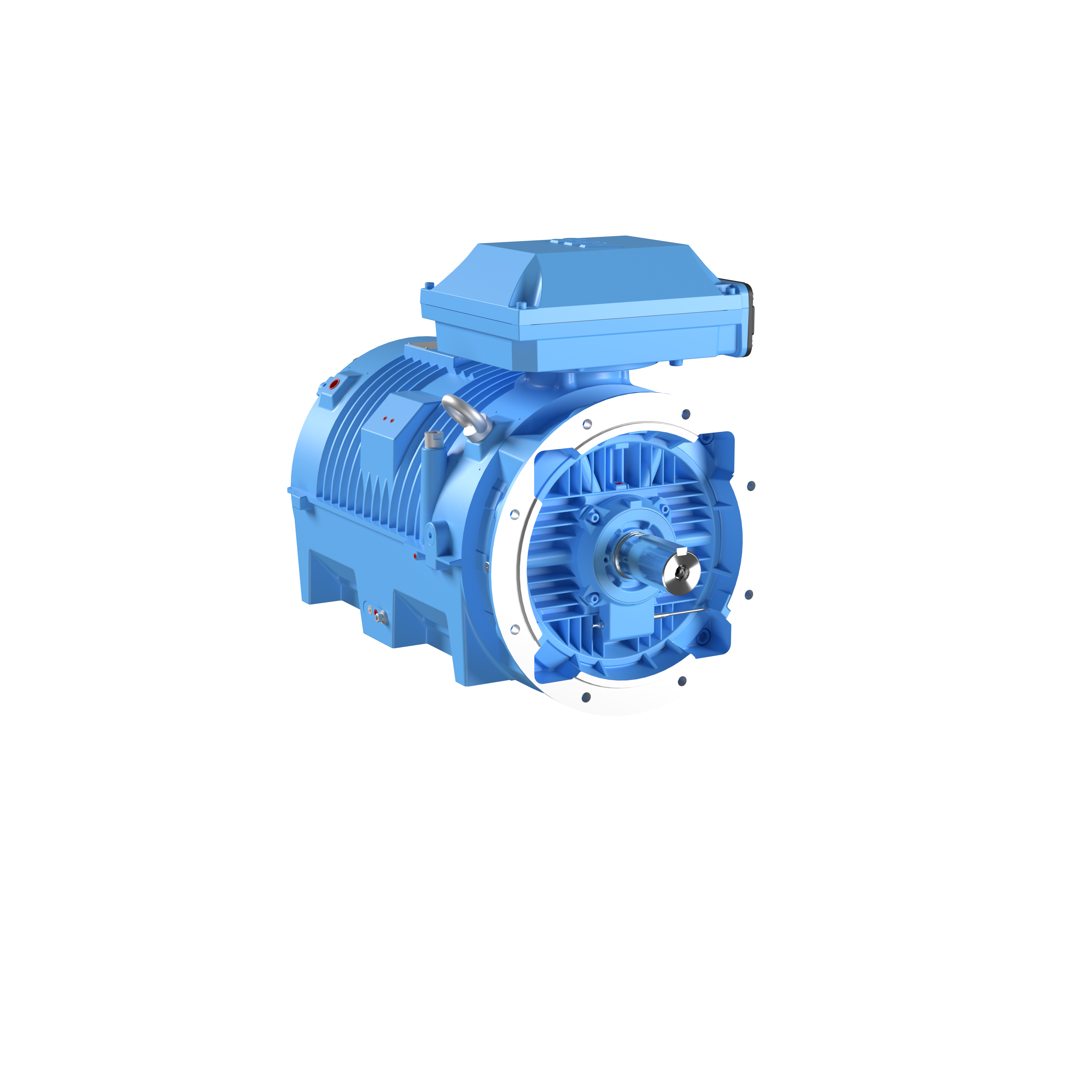

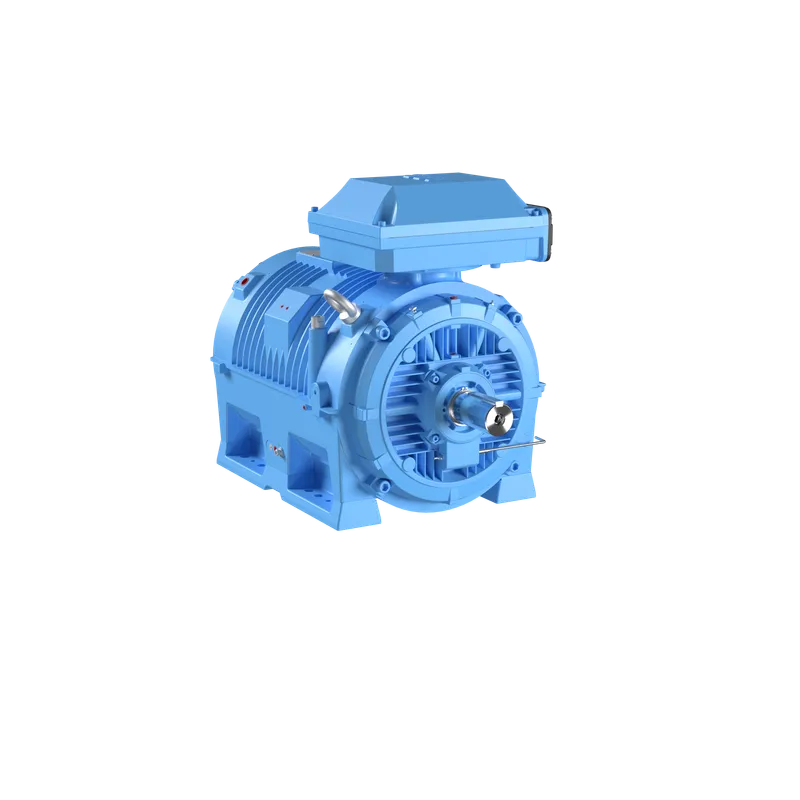

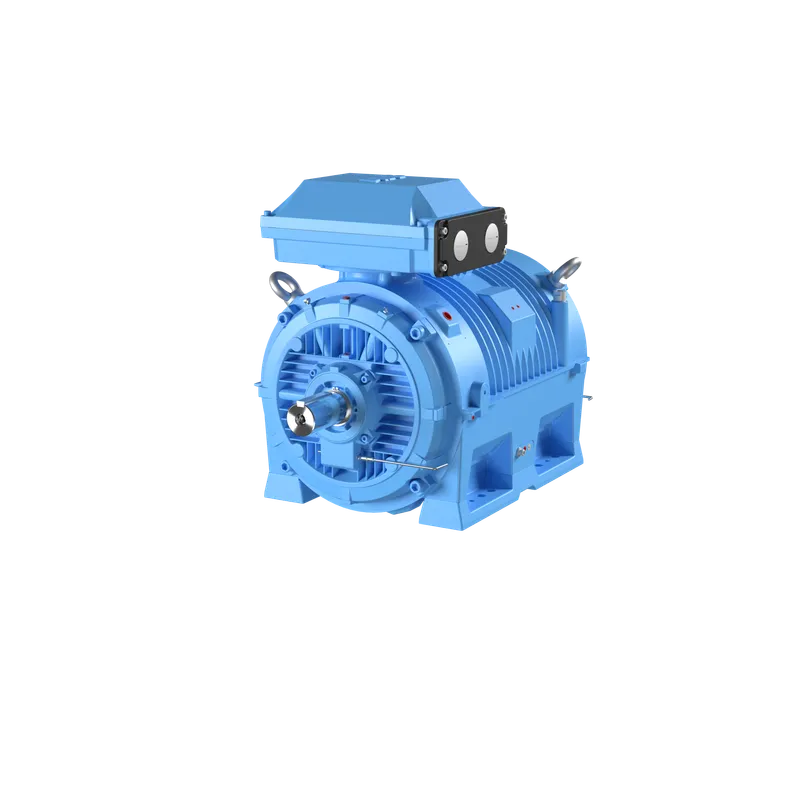

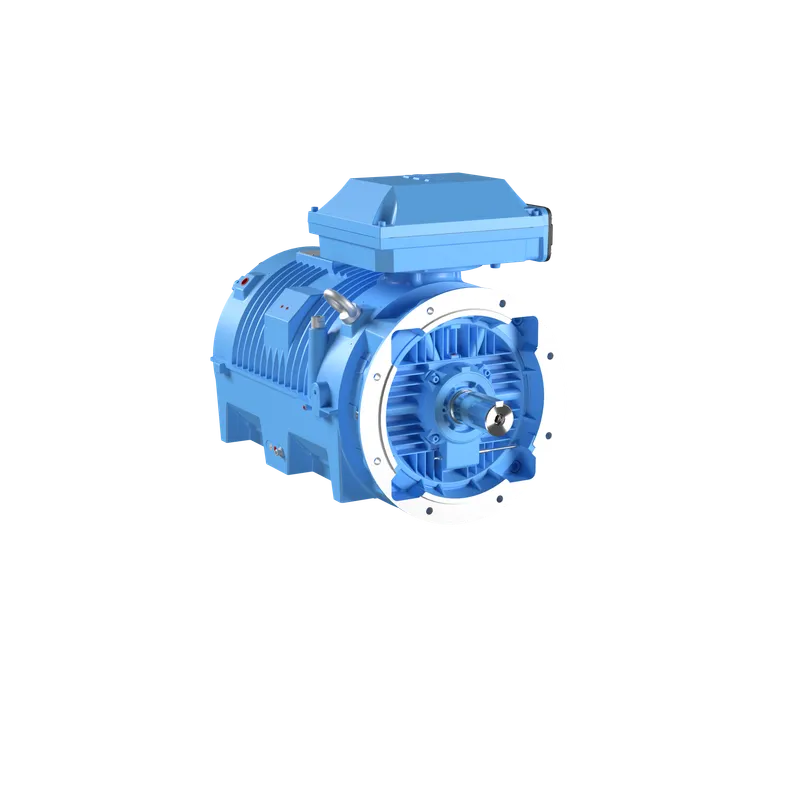

M3LP 315MB 8

MPN: 3GLP314320-BDK · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight681 kg

Shipping & availability

When can 3GLP314320-BDK be shipped?

3GLP314320-BDK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GLP314320-BDK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GLP314320-BDK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GLP314320-BDK, subject to availability and destination.

M3LP 315MB 8

Specifications

Ordering

ABB Type DesignationM3LP 315MB 8
Invoice DescriptionM3LP 315MB 8
Product Name3-Phase squirrel cage motor
Product Type3LP3__water_cooled_motor_IE3
Country or Territory of OriginFinland
Customs Tariff Number85015290
Medium Description?kW, 8P, Frame Size 315, 3 Phases, 400V, ?Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GLP314320-BDK) kW
Short Description?kW, 8P, Frame Size 315, 3PH, 400V, ?Hz, IP55, IMB5/IM3001 kW

Electrical

Temperature Class Default--
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC71W
IE Class Data (50 Hz)IE Class IE3, Full Load (100%) 92.5 %, Partial Load (75%) 92.5 %, Partial Load (50%) 91.5 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)8
Two Speed MotorNo
Type of DutyS1
Voltage CodeD

Mechanical

Frame MaterialAluminum
Frame Size315
Bearing6319/C3
Bearing NDE6316/C3
IM ClassIMB5 IM3001
Terminator Box LocationTop

Dimensions

Product Net Weight681 kg kg
Gross Weight701 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC26101100
