Home / ABB / M3LL 250SMD 4
Available on request

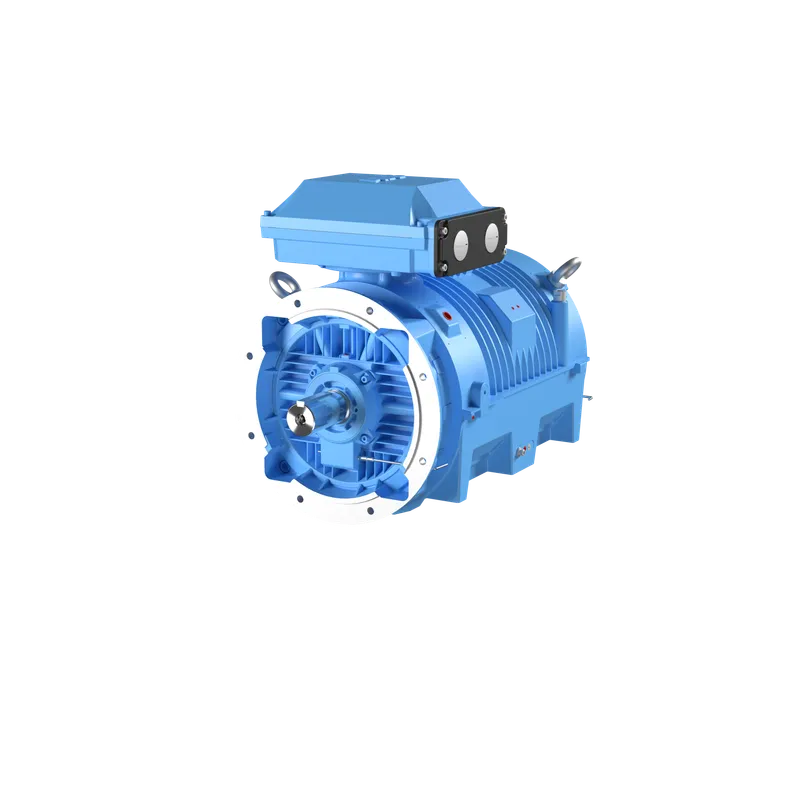

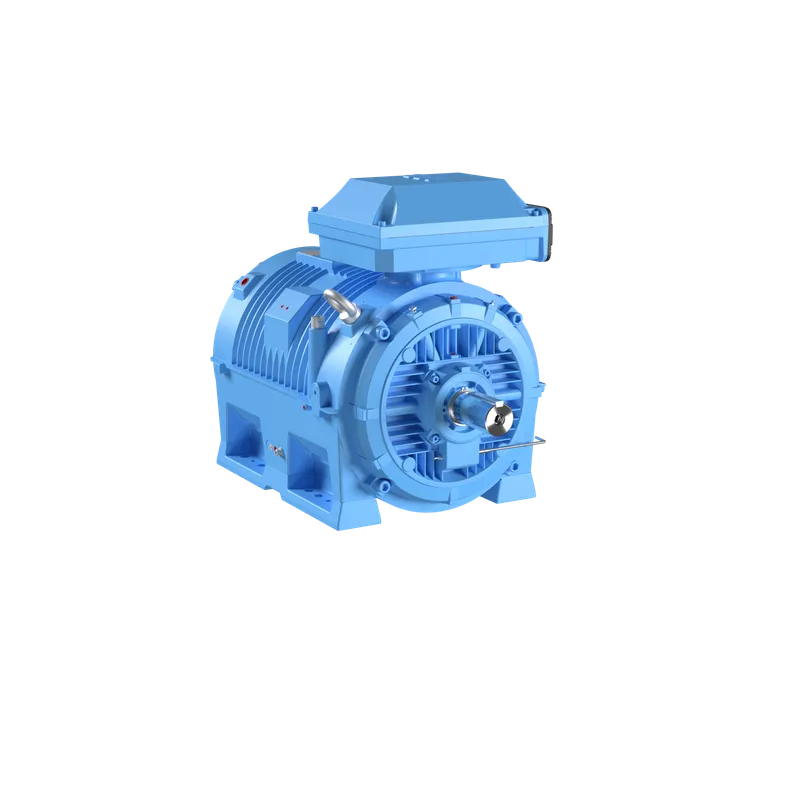

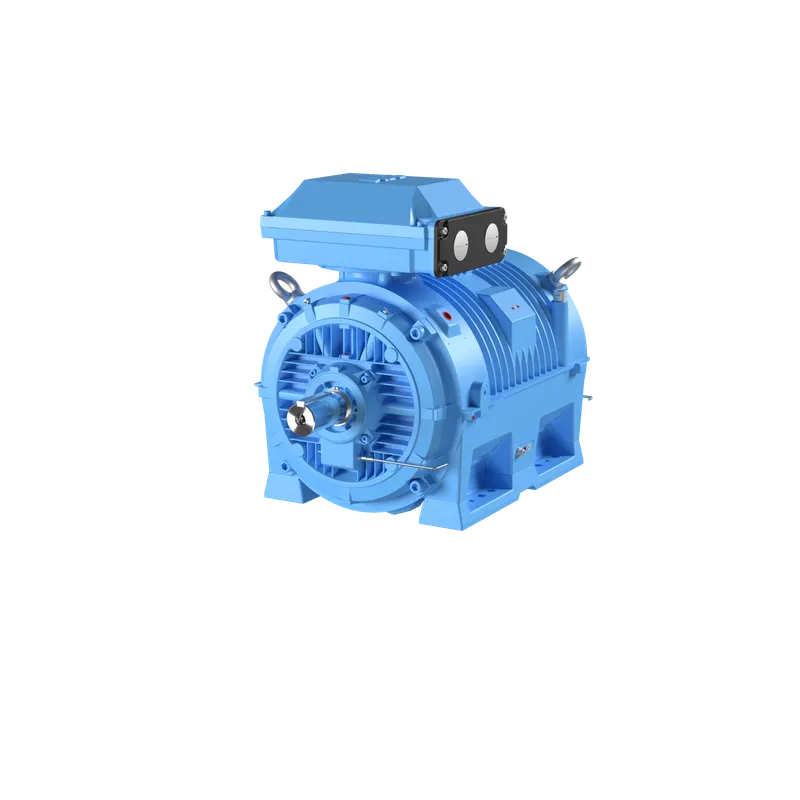

M3LL 250SMD 4

MPN: 3GLL252243-BDB · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight488 kg

Shipping & availability

When can 3GLL252243-BDB be shipped?

3GLL252243-BDB is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GLL252243-BDB in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GLL252243-BDB and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GLL252243-BDB, subject to availability and destination.

High Output Liquid Cooled SynRM Motors, 160 kW, 400 V (3GLL252243-BDB)

Specifications

Ordering

ABB Type DesignationM3LL 250SMD 4
Invoice DescriptionM3LL 250SMD 4
Product Name3Phase Synchronous reluctance motor
Product Type3LL0__M3LL_High_Output_Water_cooled_SynRM
Country or Territory of OriginFinland
Customs Tariff Number85015381
Medium Description160kW, 4 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GLL252243-BDB)
Short Description160kW, 4 P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB5/IM3001

Electrical

Connection ConfigurationD
Temperature Class Default--
Input Voltage (Uin)400 V V
Frequency (f)50 Hz Hz
Motor Operational Voltage370 V V
Operating Frequency (fsw)50.000 Hz Hz
Output Power160 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC71W
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 94.5 %, Partial Load (75%) 94.9 %, Partial Load (50%) 94.9 %
IP ClassIP55
Insulation ClassICLH
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS9
Voltage CodeD

Mechanical

Frame MaterialAluminum
Frame Size250
Bearing6315/C3
Bearing NDE6213/HC5C3
IM ClassIMB5 IM3001
Terminator Box LocationD-End top

Dimensions

Product Net Weight488 kg kg
Gross Weight498 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC26101100
