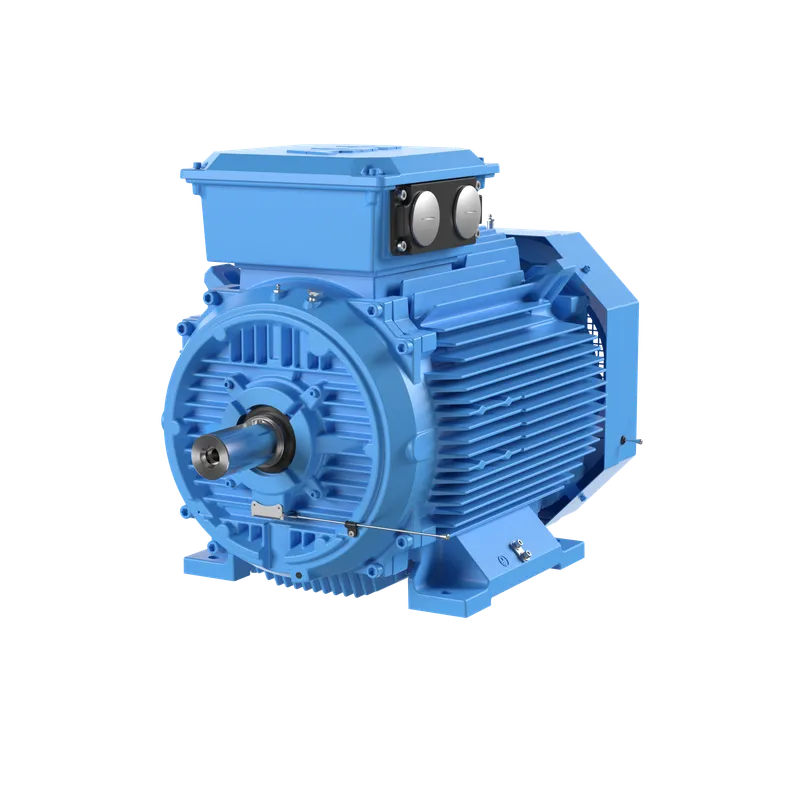

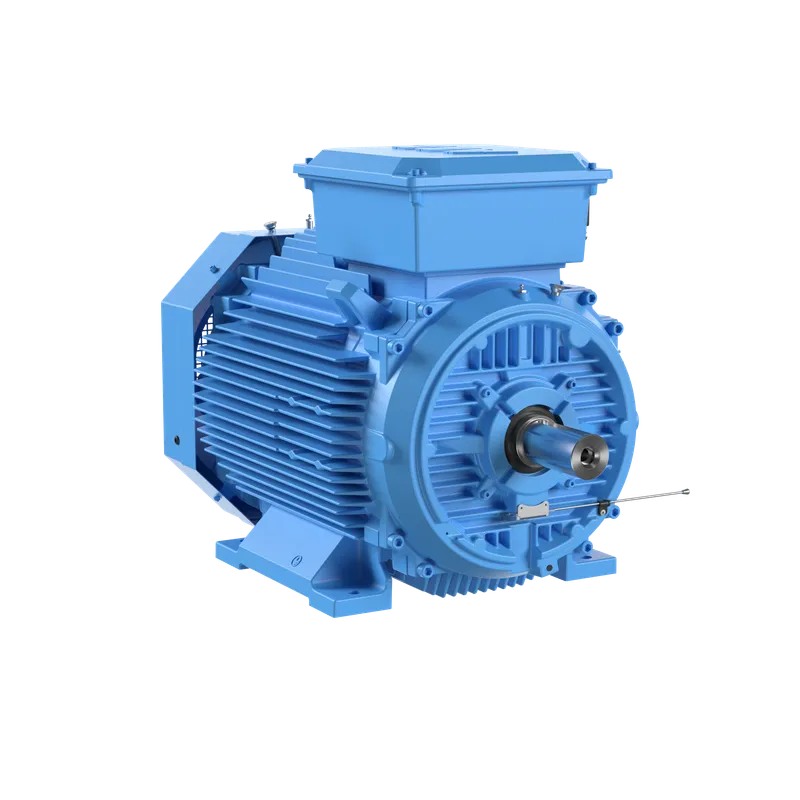

M3LL 200MLF 4

Name: M3LL 200MLF 4
Brand: ABB
SKU: 3GLL202467-ADC

MPN: 3GLL202467-ADC · Brand: ABB

Price on request

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Flameproof IEC Low voltage motors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	388 kg

Shipping & availability

When can 3GLL202467-ADC be shipped?

3GLL202467-ADC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GLL202467-ADC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GLL202467-ADC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GLL202467-ADC, subject to availability and destination.

IE5 Liquid Cooled SynRM Motors, 110 kW, 400 V (3GLL202467-ADC)

Specifications

Ordering

ABB Type Designation	M3LL 200MLF 4
Invoice Description	M3LL 200MLF 4
Product Name	3Phase Synchronous reluctance motor
Product Type	3LL5__M3LL_IE5__Water_cooled_SynRM
Country or Territory of Origin	Finland
Customs Tariff Number	85015381
Medium Description	110kW, 4 Poles, Frame Size 200, 3 Phases, 400V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GLL202467-ADC)
Short Description	110kW, 4 P, Frame Size 200, 3PH, 400V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection Configuration	D
Temperature Class Default	--
Input Voltage (Uin)	400 V V
Frequency (f)	50 Hz Hz
Motor Operational Voltage	650 V V
Operating Frequency (fsw)	100.000 Hz Hz
Output Power	110 kW kW
Altitude	1000 m m
Ambient Temperature	40 °C
IC Class	IC71W
IE Class Data (50 Hz)	IE Class IE5, Full Load (100%) 96.0 %, Partial Load (75%) 95.9 %, Partial Load (50%) 95.3 %
IE Class Data (60 Hz)	IE Class IE5, Full Load (100%) 96.0 %, Partial Load (75%) 95.7 %, Partial Load (50%) 95.0 %
IP Class	IP55
Insulation Class	ICLH
Direction of Rotation	Both sides
Number of Poles (High)	4
Two Speed Motor	No
Type of Duty	S9
Voltage Code	D
