Home / ABB / M3JP 400LKC 2
Available on request

M3JP 400LKC 2

MPN: 3GJP401830-AEK · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight3580 kg

Shipping & availability

When can 3GJP401830-AEK be shipped?

3GJP401830-AEK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GJP401830-AEK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GJP401830-AEK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJP401830-AEK, subject to availability and destination.

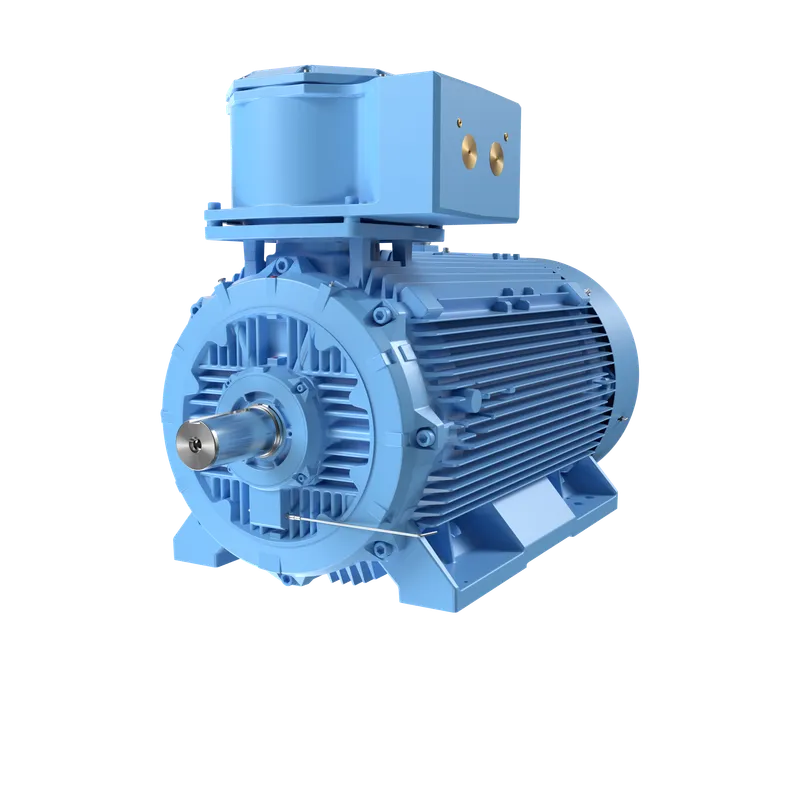

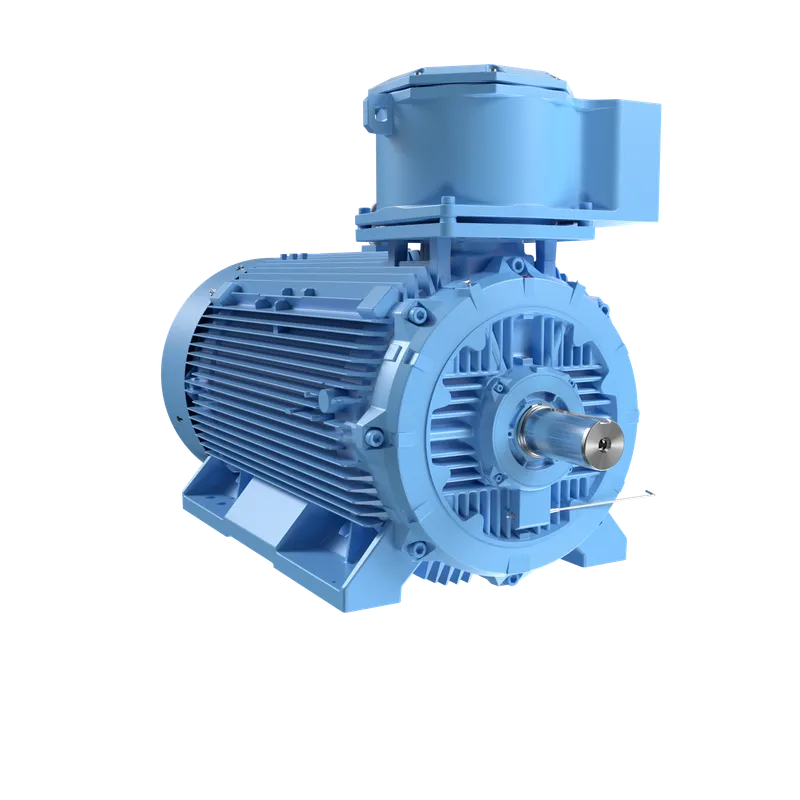

Flameproof IE3 Premium Efficiency Motors, 710 kW, 500 V (3GJP401830-AEK)

Specifications

Ordering

ABB Type DesignationM3JP 400LKC 2
Invoice DescriptionM3JP 400LKC 2
Product Name3-Phase squirrel cage motor
Product Type3JP3__M3JP_IE3_Flameproof_Ex_db_motor
Country or Territory of OriginFinland
Customs Tariff Number85015394
Medium Description710kW, 2 Poles, Frame Size 400, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB3/IM1001 Mounting (3GJP401830-AEK)
Short Description710kW, 2P, Frame Size 400, 3PH, 500V, 50Hz, IP55, IMB3/IM1001

Electrical

Connection ConfigurationD
Temperature Class DefaultT4
Input Voltage (Uin)500 V V
Frequency (f)50 Hz Hz
Output Power710 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 95.6 %, Partial Load (50%) 94.9 %
IE Class Data (60 Hz)IE Class IE3, Full Load (100%) 95.8 %, Partial Load (75%) 95.6 %, Partial Load (50%) 94.6 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationUnidirectional
Number of Poles (High)2
Two Speed MotorNo
Type of DutyS1
Voltage CodeE
EX-ProtectionExdb
Gas GroupIIB

Mechanical

Frame MaterialCast Iron
Frame Size400
Bearing6317M/C3
Bearing NDE6317M/C3
IM ClassIMB3 IM1001
Terminator Box LocationTop

Dimensions

Product Net Depth / Length1851 mm mm
Product Net Height1121 mm mm
Product Net Width840 mm mm
Product Net Weight3580 kg kg
Gross Weight3620 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC26101100
