Home / ABB / M3JP 200MLB 4
Available on request

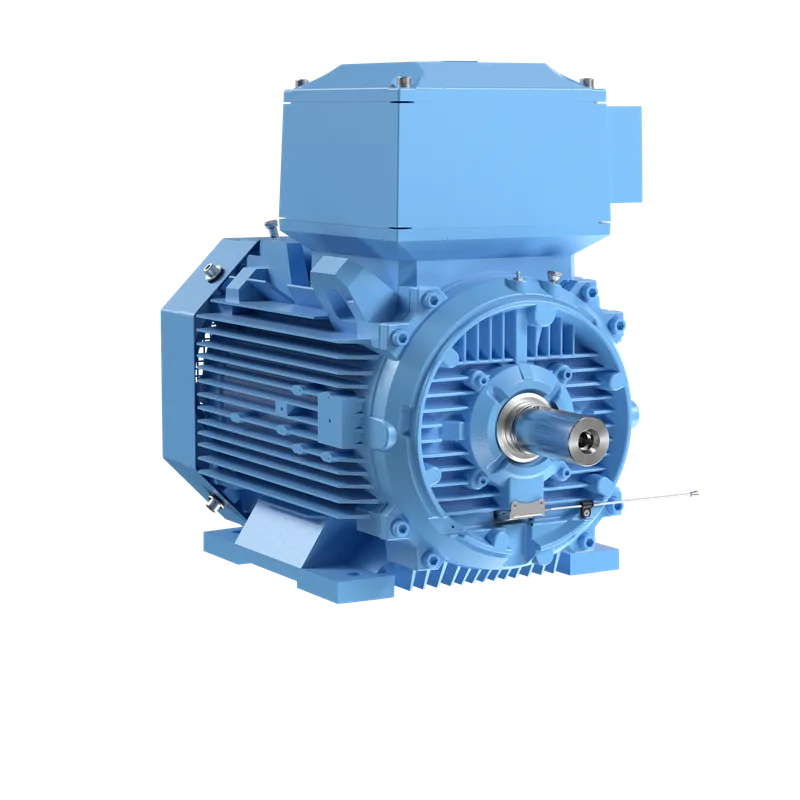

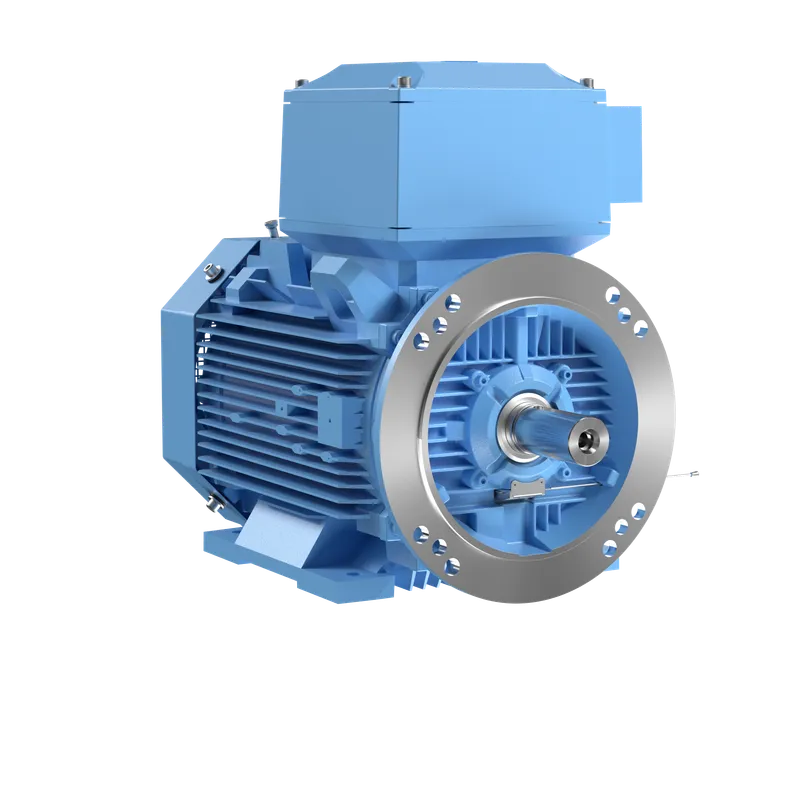

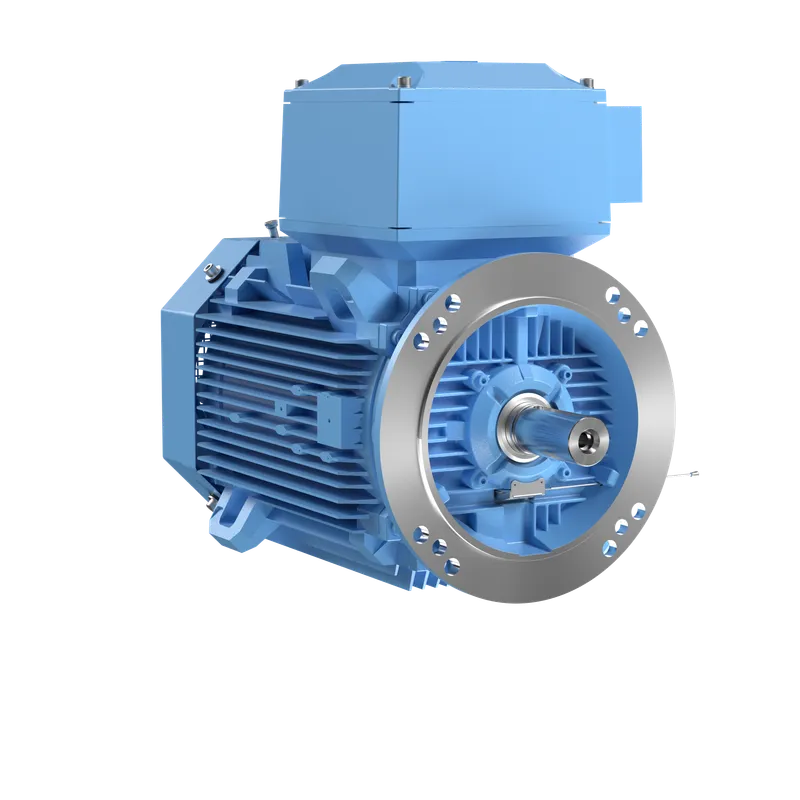

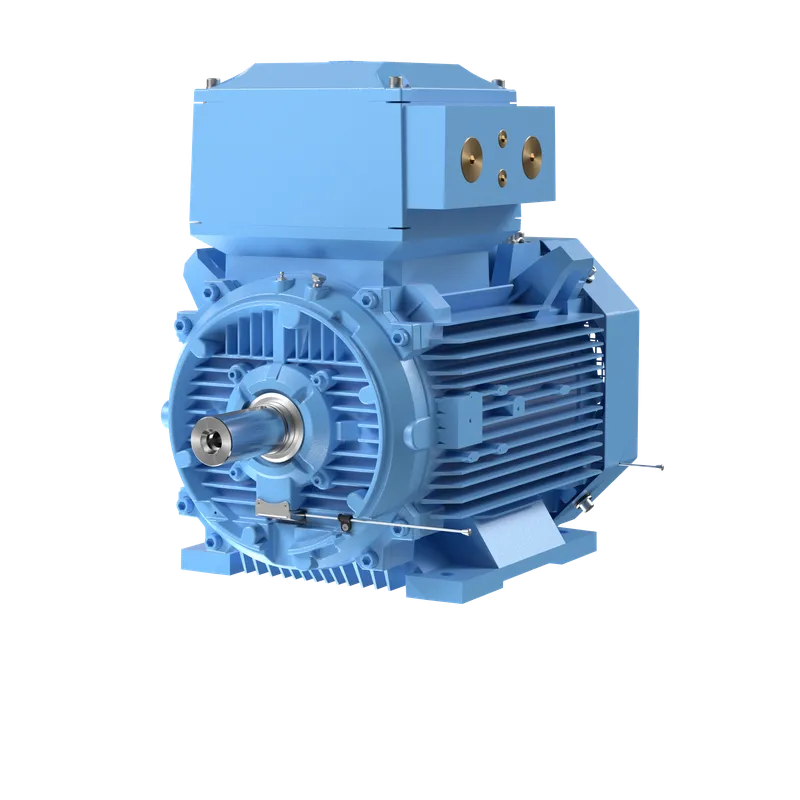

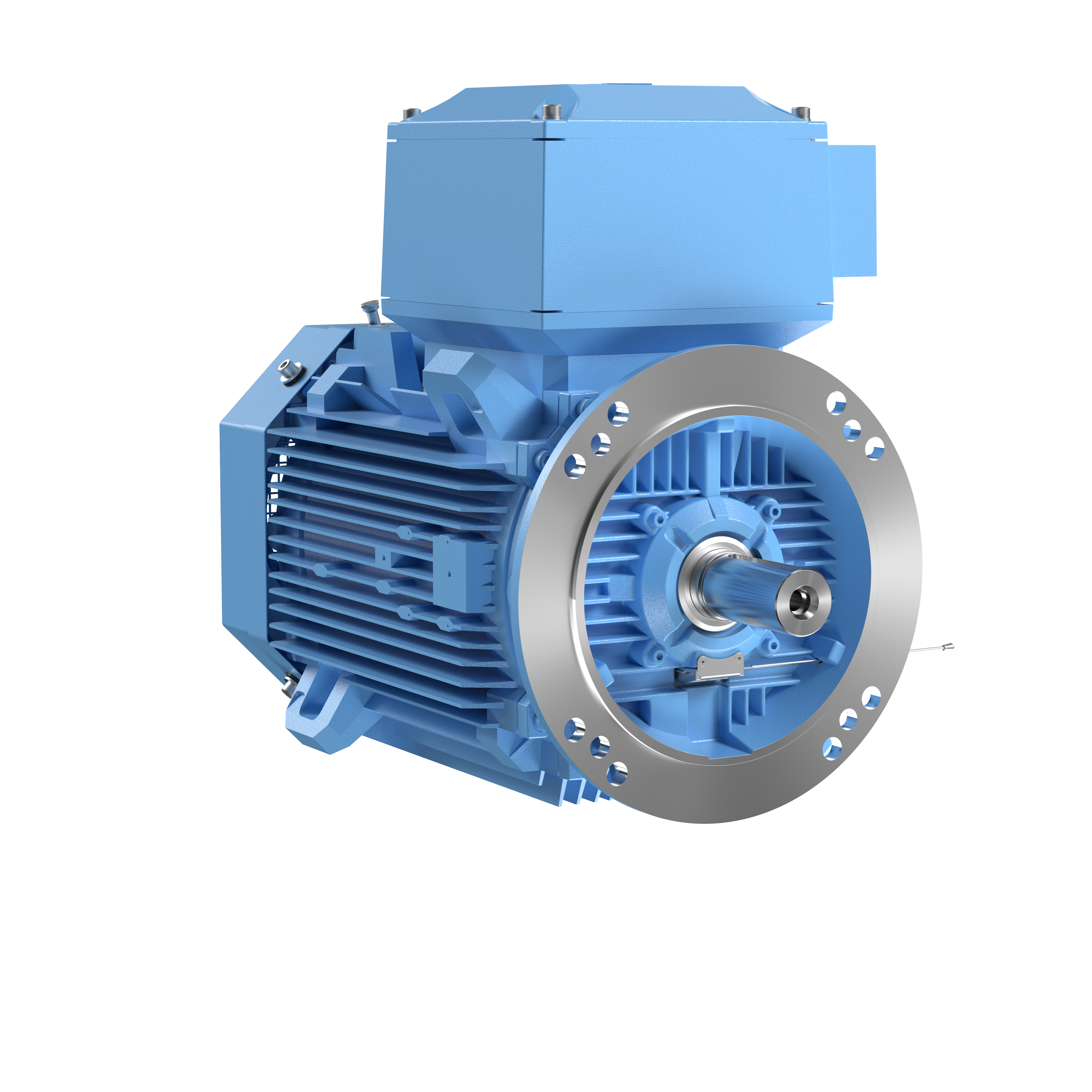

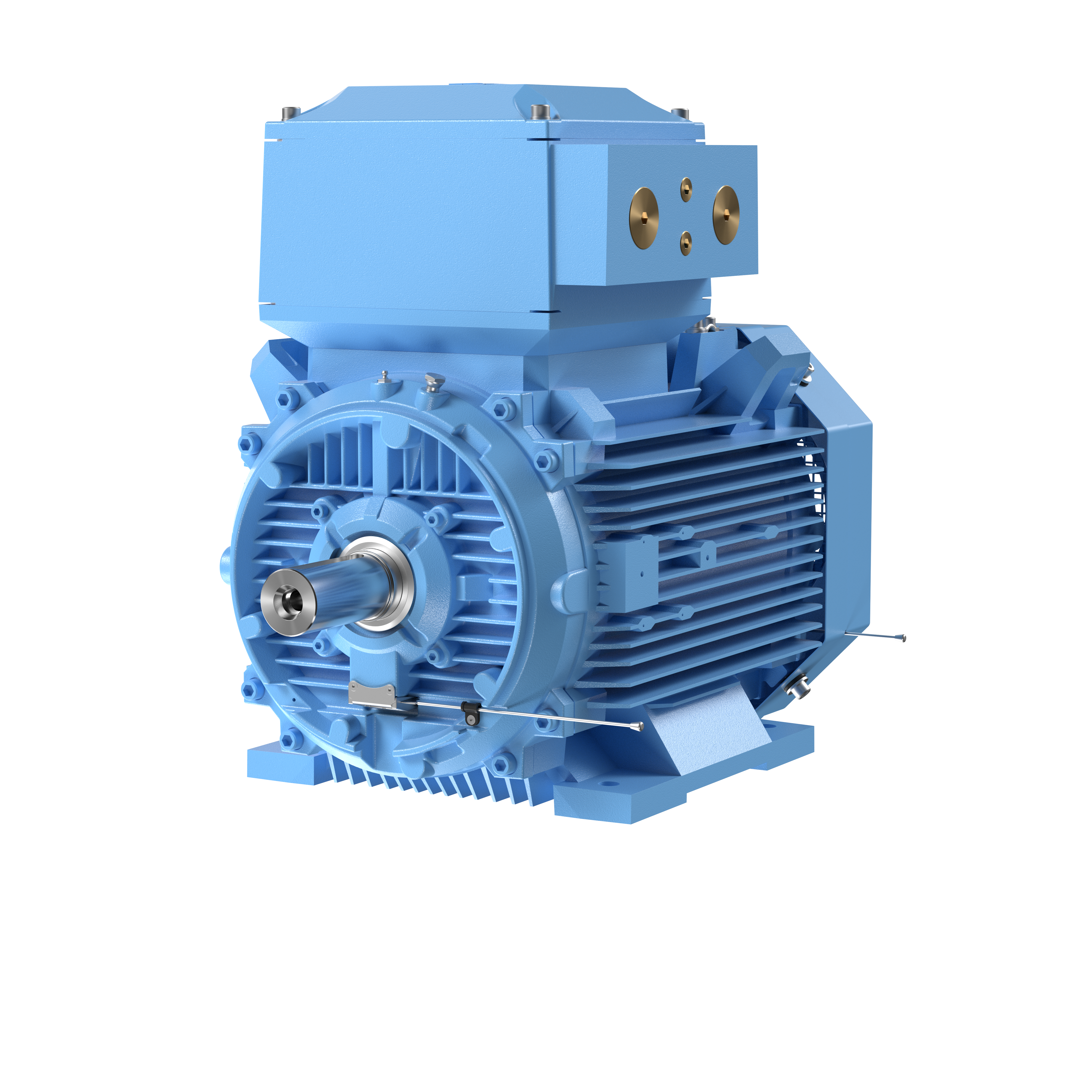

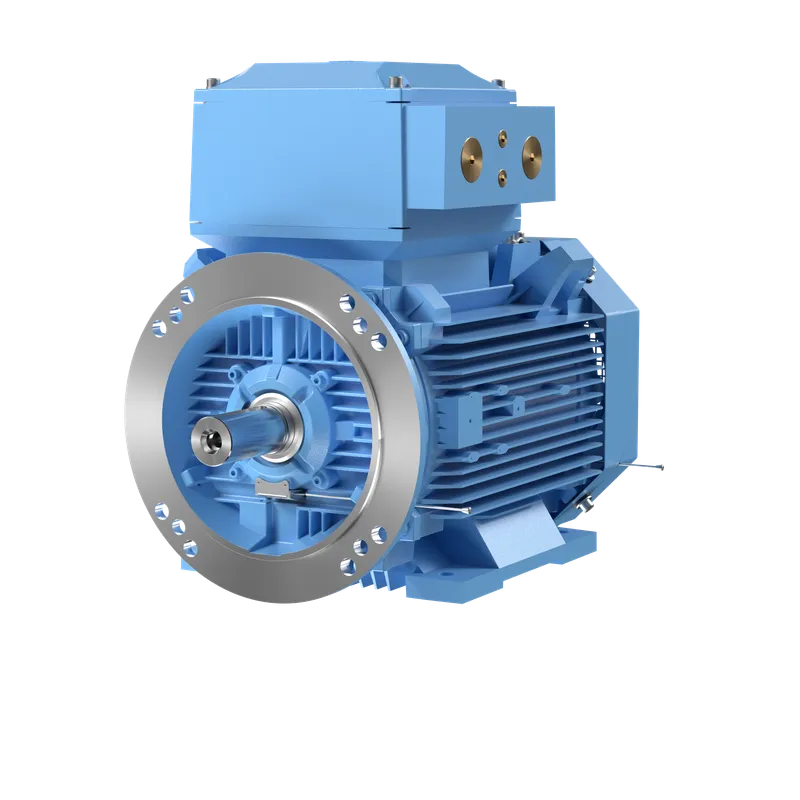

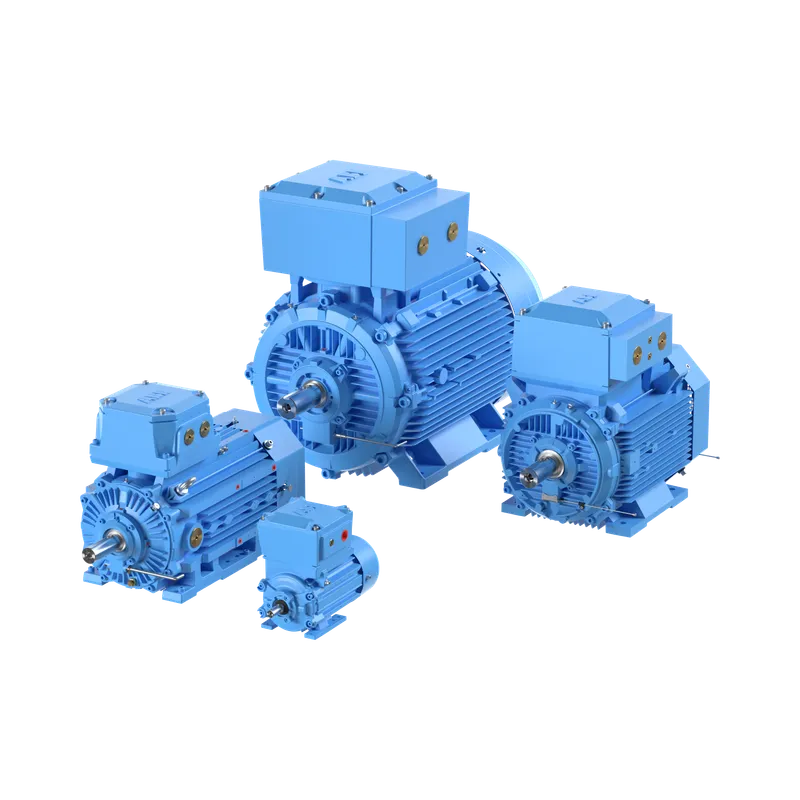

M3JP 200MLB 4

MPN: 3GJP202420-BEG · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight340 kg

Shipping & availability

When can 3GJP202420-BEG be shipped?

3GJP202420-BEG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GJP202420-BEG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GJP202420-BEG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJP202420-BEG, subject to availability and destination.

(3GJP202420-BEG)

Specifications

Ordering

ABB Type DesignationM3JP 200MLB 4
Invoice DescriptionM3JP 200MLB 4
Product Name3-Phase squirrel cage motor
Product Type3JP2__M3JP_IE2_Flameproof_Ex_db_motor
Country or Territory of OriginFinland
Customs Tariff Number85015230
Medium Description30kW, 4P, Frame Size 200, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB5/IM3001 Mounting (3GJP202420-BEG)
Short Description30kW, 4P, Frame Size 200, 3PH, 500V, 50Hz, IP55, IMB5/IM3001

Electrical

Temperature Class DefaultT4
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 92.5 %, Partial Load (75%) 93.2 %, Partial Load (50%) 93.1 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)4
Two Speed MotorNo
Type of DutyS1
Voltage CodeE
EX-ProtectionExdb
Gas GroupIIB

Mechanical

Frame MaterialCast Iron
Frame Size200
Bearing6312/C3
Bearing NDE6310/C3
IM ClassIMB5 IM3001
Terminator Box LocationTop

Dimensions

Product Net Weight340 kg kg
Gross Weight350 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm
SCIP297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC26101100
