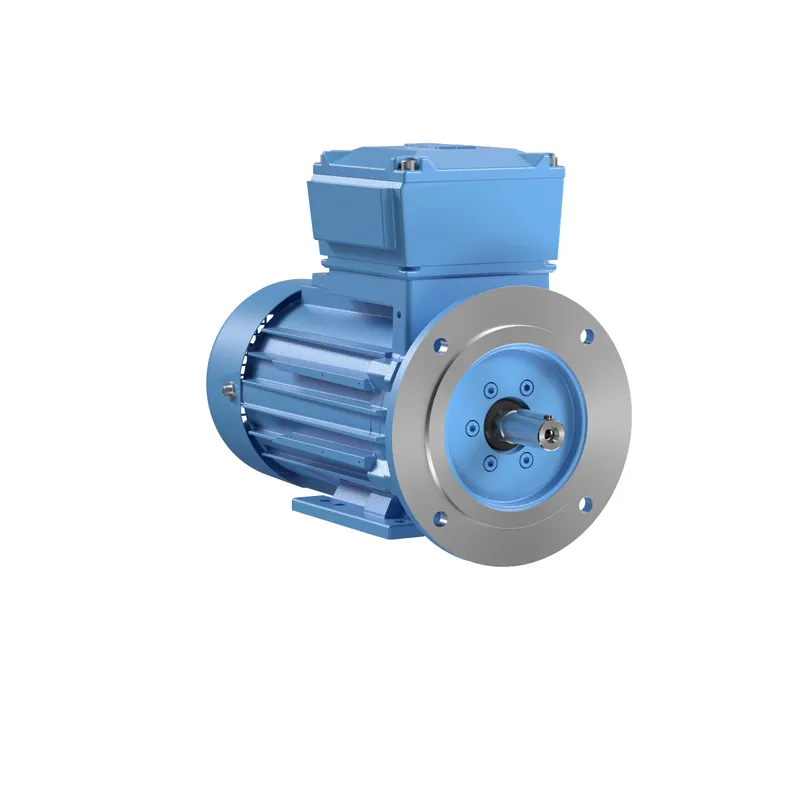

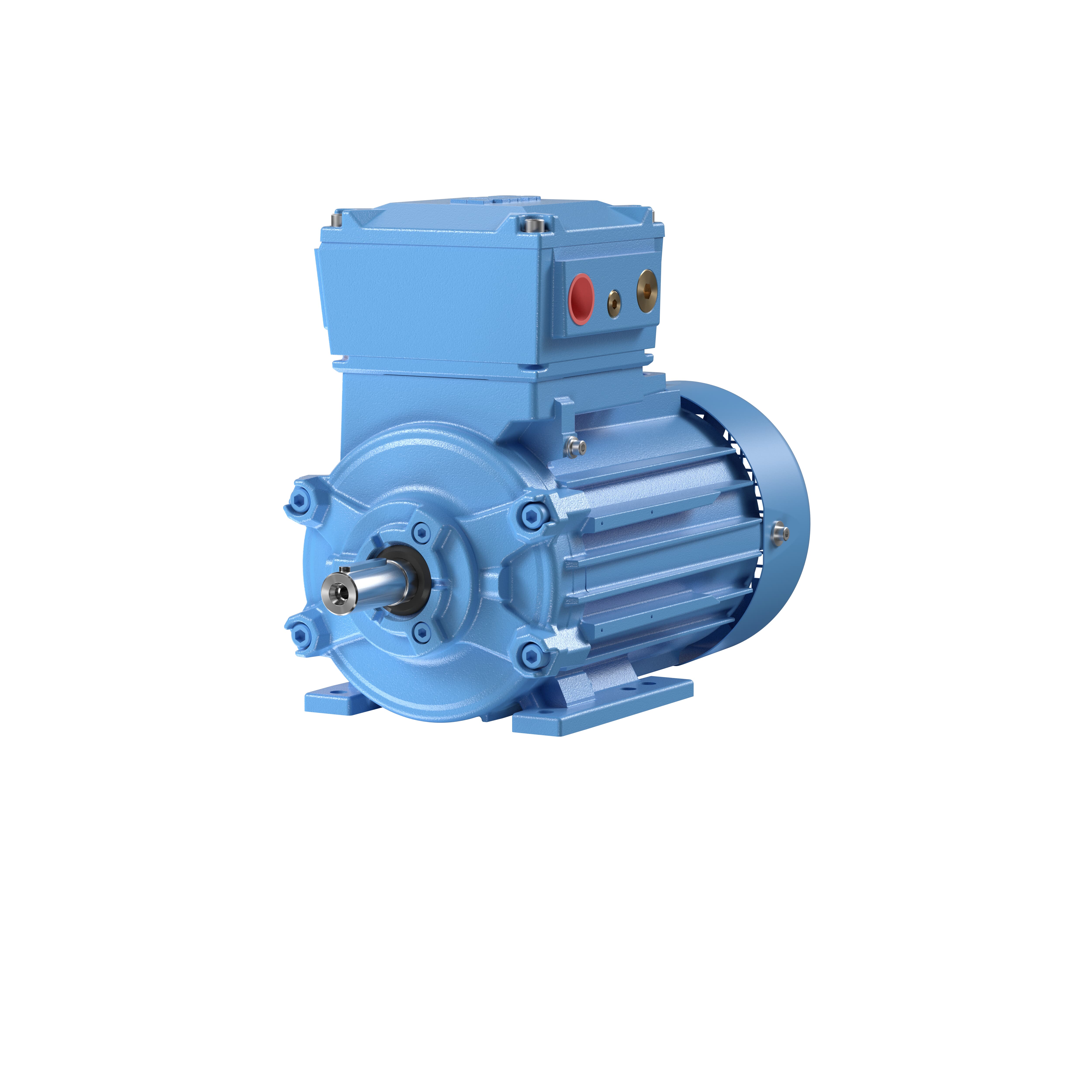

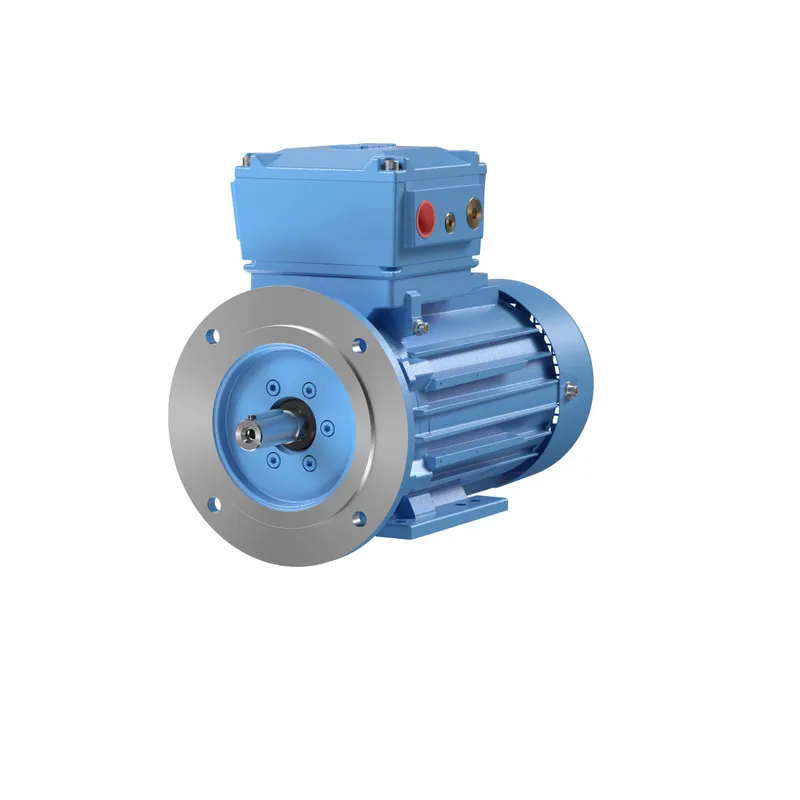

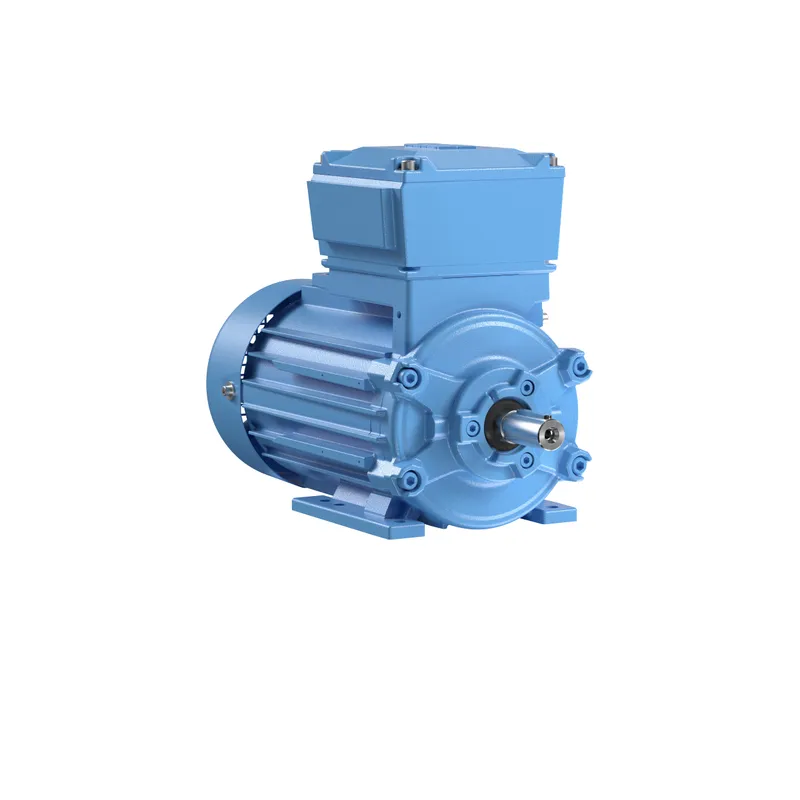

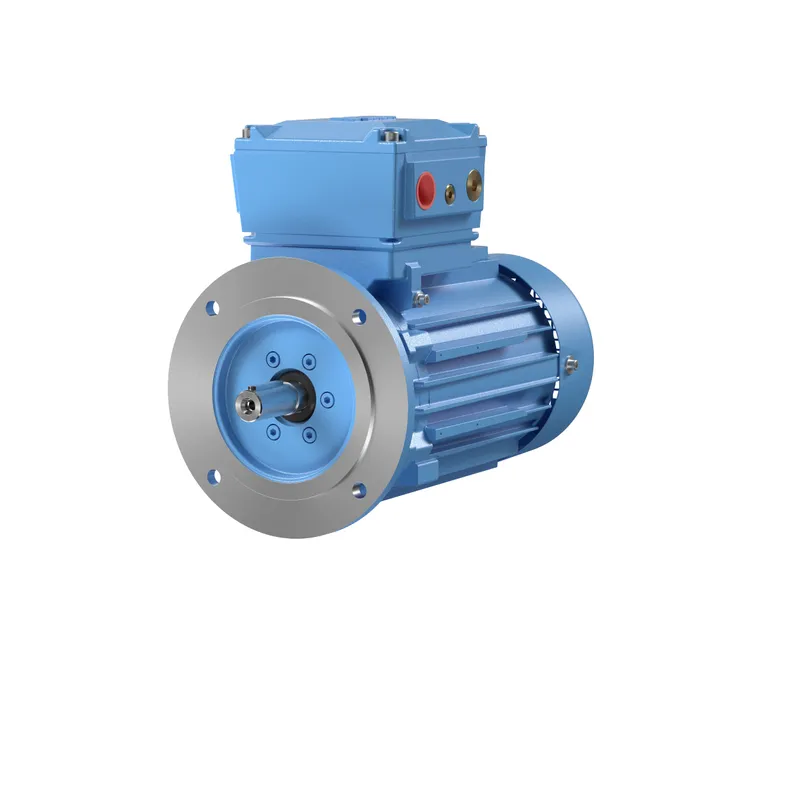

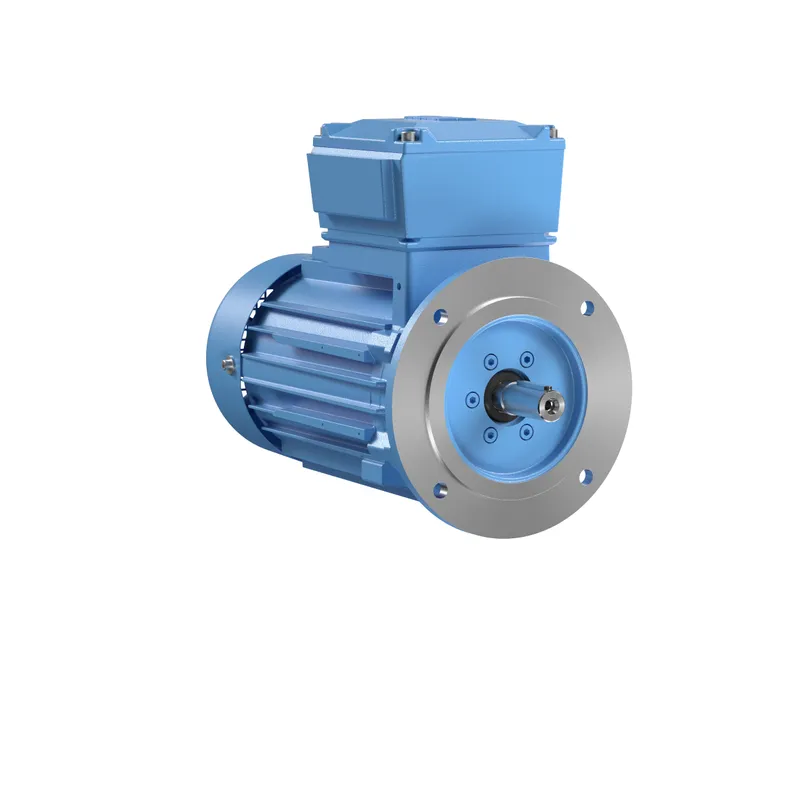

M3JP 100LB 2

MPN: 3GJP101520-CEJ · Brand: ABB
Price on request
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight68 kg

Shipping & availability

When can 3GJP101520-CEJ be shipped?

3GJP101520-CEJ is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GJP101520-CEJ in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GJP101520-CEJ and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJP101520-CEJ, subject to availability and destination.

(3GJP101520-CEJ)

Specifications

Ordering

ABB Type DesignationM3JP 100LB 2
Invoice DescriptionM3JP 100LB 2
Product Name3-Phase squirrel cage motor
Product Type3JP0__M3JP_IE2_Flameproof_Exd_motor
Country or Territory of OriginFinland
Customs Tariff Number85015220
Replaced Product ID (OLD)3GJP101510-CEH
Medium Description3kW, 2P, Frame Size 100, 3 Phases, 500V, 50Hz, IP55 Enclosure, IMB14/IM3601 Mounting (3GJP101520-CEJ)
Short Description3kW, 2P, Frame Size 100, 3PH, 500V, 50Hz, IP55, IMB14/IM3601

Electrical

Temperature Class DefaultT4
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE2, Full Load (100%) 84.6 %, Partial Load (75%) 84.3 %, Partial Load (50%) 82.0 %
IE Class Data (60 Hz)IE Class IE1, Full Load (100%) 84.5 %, Partial Load (75%) 83.2 %, Partial Load (50%) 79.9 %
IP ClassIP55
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)2
Two Speed MotorNo
Type of DutyS1
Voltage CodeE
EX-ProtectionExdb
Gas GroupIIB

Mechanical

Frame MaterialCast Iron
Frame Size100
Bearing6206-2Z/C3
Bearing NDE6205-2Z/C3
IM ClassIMB14 IM3601
Terminator Box LocationD-End top

Dimensions

Product Net Weight68 kg kg
Gross Weight73 kg kg

Environmental

WEEE Category5. Small Equipment (No External Dimension More Than 50 cm) cm
SCIP297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland

External Classifications and Standards

UNSPSC26101100
