M3JM 160MLA 2

MPN: 3GJM161410-ASK · Brand: ABB
Price on request
Request a Quote

A real person replies, typically within 1 business day — see our privacy policy.

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

Quick facts

AvailabilityConfirmed on request
CategoryFlameproof IEC Low voltage motors
Lifecycleactive
Warranty12-month (new) · 3-month (used/refurbished)
Weight240 kg

Shipping & availability

When can 3GJM161410-ASK be shipped?

3GJM161410-ASK is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3GJM161410-ASK in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3GJM161410-ASK and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3GJM161410-ASK, subject to availability and destination.

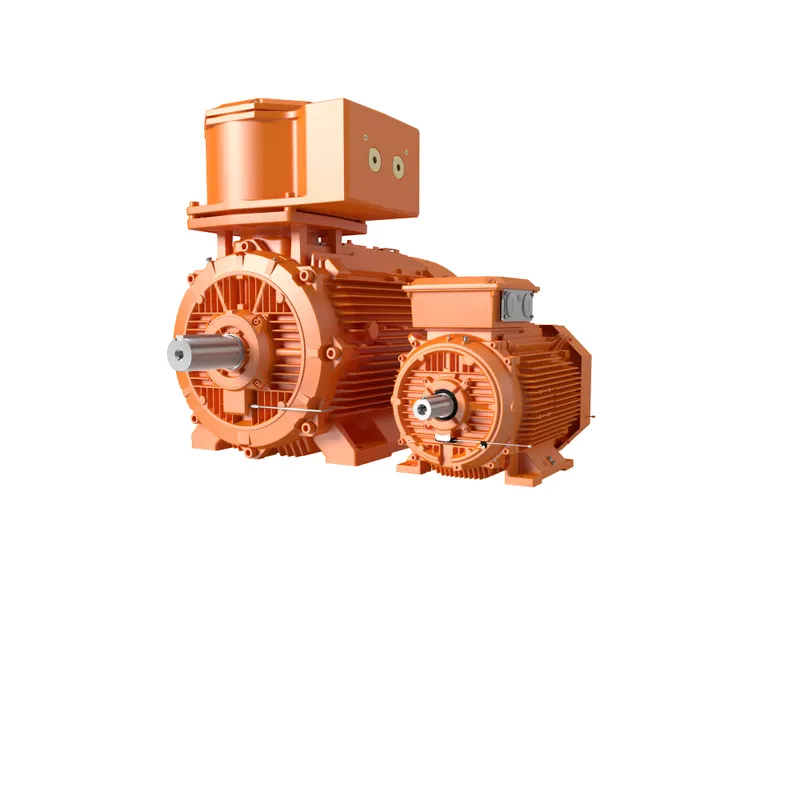

Flameproof IE3 Premium Efficiency Mining Motors, 11 kW, 400 V (3GJM161410-ASK)

Specifications

Ordering

ABB Type DesignationM3JM 160MLA 2
Invoice DescriptionM3JM 160MLA 2
Product Name3-Phase squirrel cage motor
Product Type3JM3__M3JM_IE3_Group_I_Flameproof_Exd_mining_motor
Country or Territory of OriginFinland
Customs Tariff Number85015230
Medium Description11kW, 2 Poles, Frame Size 160, 3 Phases, 400V, 50Hz, IP66 Enclosure, IMB3/IM1001 Mounting (3GJM161410-ASK)
Short Description11kW, 2P, Frame Size 160, 3PH, 400V, 50Hz, IP66, IMB3/IM1001

Electrical

Connection ConfigurationY
Temperature Class Default--
Input Voltage (Uin)400 V V
Frequency (f)50 Hz Hz
Output Power11 kW kW
Altitude1000 m m
Ambient Temperature40 °C
IC ClassIC411
IE Class Data (50 Hz)IE Class IE3, Full Load (100%) 91.2 %, Partial Load (75%) 91.4 %, Partial Load (50%) 90.7 %
IE Class Data (60 Hz)IE Class IE3, Full Load (100%) 91.8 %, Partial Load (75%) 91.8 %, Partial Load (50%) 90.6 %
IP ClassIP66
Insulation ClassICLF
Direction of RotationBoth sides
Number of Poles (High)2
Two Speed MotorNo
Type of DutyS1
Voltage CodeS
EX-ProtectionExdb

Mechanical

Frame MaterialCast Iron
Frame Size160
Bearing6309/C3
Bearing NDE6309/C3
IM ClassIMB3 IM1001
Terminator Box LocationTop

Dimensions

Product Net Depth / Length584 mm mm
Product Net Height421 mm mm
Product Net Width268 mm mm
Product Net Weight240 kg kg
Gross Weight250 kg kg

Environmental

WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm) cm

External Classifications and Standards

UNSPSC26101100
